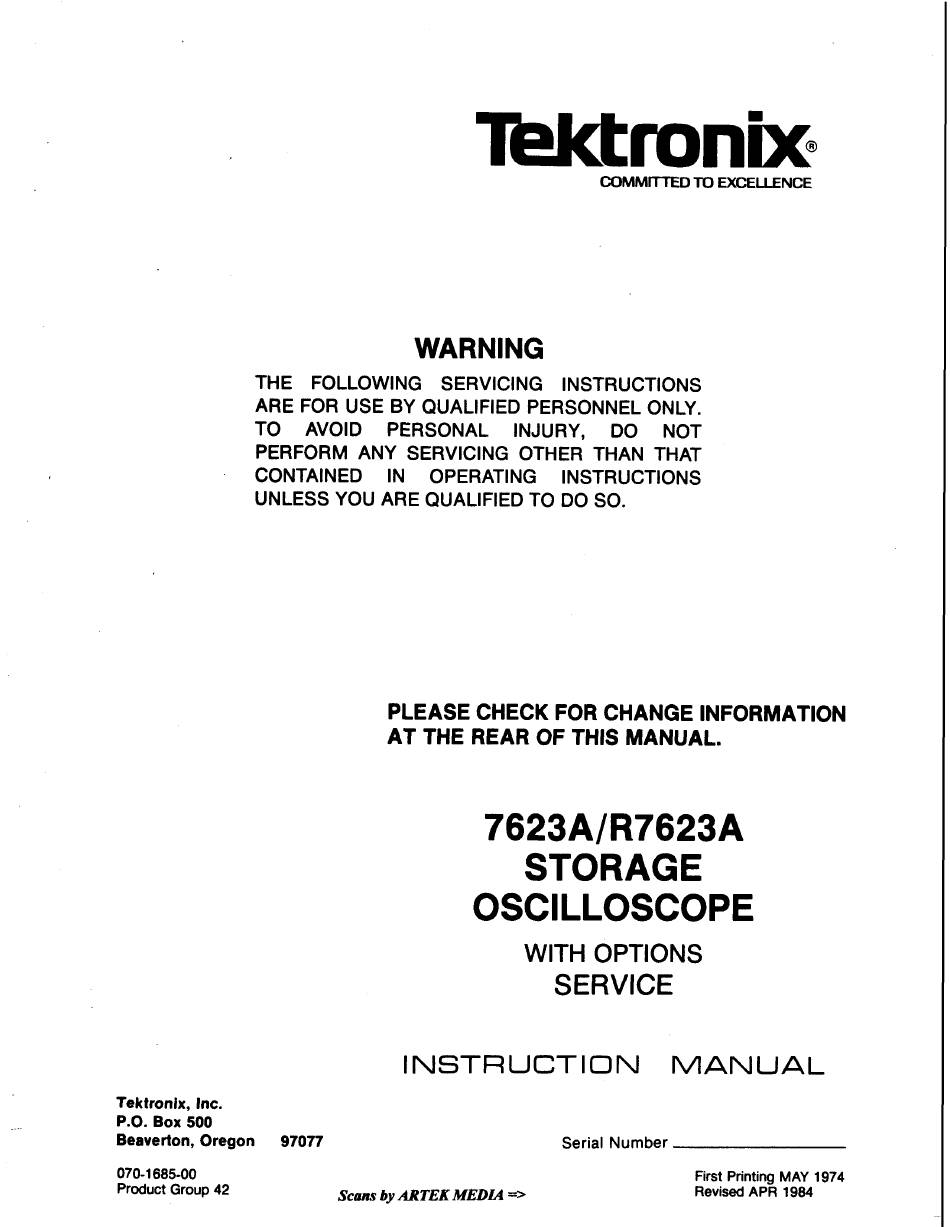

COMMITIED TO EXCELLENCE
WARNING
THE FOLLOWING SERVICING INSTRUCTIONS
ARE FOR USE BY QUALIFIED PERSONNEL ONLY.
TO
AVOID
PERSONAL
INJURY,
DO
NOT
PERFORM ANY SERVICING OTHER THAN THAT
CONTAINED
IN
OPERATING
INSTRUCTIONS
UNLESS YOU ARE QUALIFIED TO DO SO.
PLEASE CHECK FOR CHANGE INFORMATION
AT THE REAR OF THIS MANUAL.
STORAGE
OSCILLOSCOPE
WITH OPTIONS
SERVICE
I N S T R U C T I O N
MANUAL
Tektronix, Inc.
P.O. Box 500
Beaverton, Oregon
97077
070-1 685-00
Product Group 42
Scans
by
ARTEK MEDU
=>
Serial Number
First Printing MAY 1974
Revised APR 1984
