Please save these instructions.
This manual contains important installation, operation, and maintenance instructions for the Lithium Iron Phosphate Battery w/ Bluetooth. Please observe these instructions and keep them located near the battery for further reference. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information.
Indicates a potentially dangerous condition. Use extreme caution when performing this task.
Indicates a critical procedure for the safe and proper installation and operation of the battery.
NOTE Indicates a procedure or function that is important to the safe and proper installation and operation of the battery.

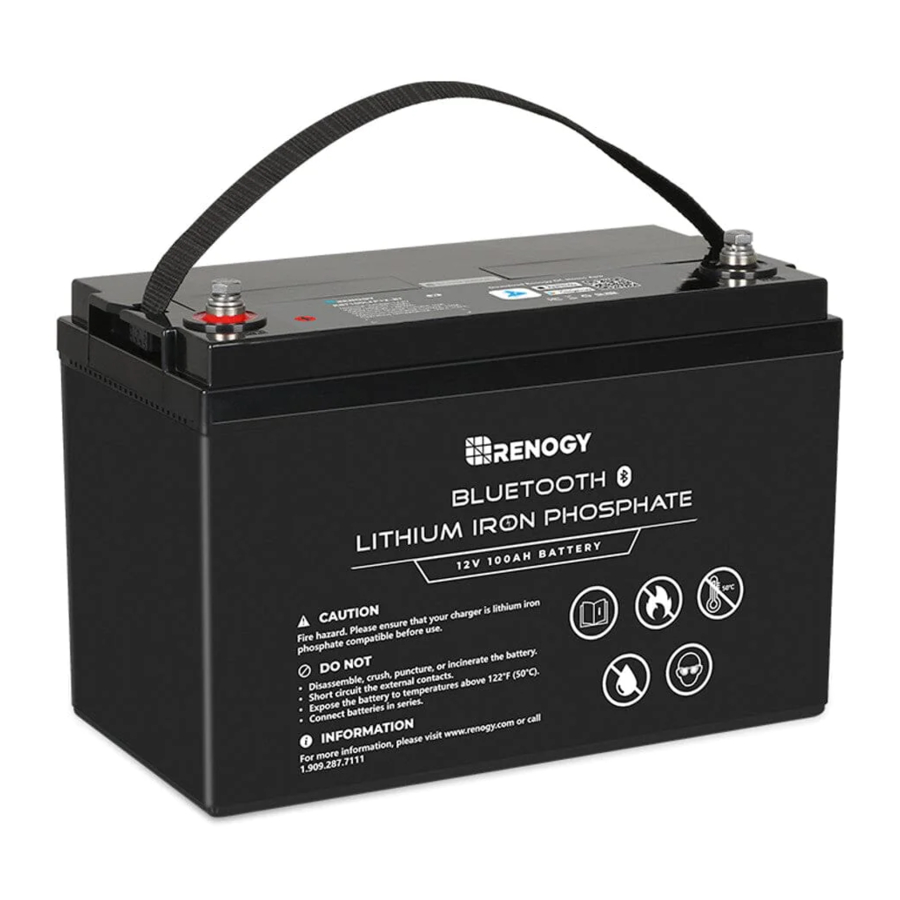

The Renogy Lithium Iron Phosphate Battery w/ Bluetooth is designed for the drop-in replacement of deep-cycle lead-acid batteries with its standard BCI group size. Weighing only half of the lead-acid counterparts, the battery can be safely discharged to 100% DOD (Depth of Discharge), delivering twice the energy. Manufactured with automotive grade battery cells, the battery features the highest safety standards and an extended cycle life. Hosting intelligent software, the advanced BMS (Battery Management System) provides comprehensive protection to the battery. The built-in Bluetooth module enables remote monitoring on mobile devices in real time.
Before the installation and operation of the battery, it is recommended to have the following equipment or tools available:
Safe and reliable installation requires trained and certified technicians. Therefore, the purpose of this section is only to serve as a guideline as all scenarios cannot be covered.
Please check for visible damage including cracks, dents, deformation, and other visible abnormalities. The top of the battery and terminal connections should be clean, free of dirt and corrosion, and dry. If any problems are detected with the battery, please contact us for assistance.
Battery cables (sold separately) should be appropriately sized to handle the expected load. Please refer to the following table for the ampacities of copper cables with different gauge sizes.
Copper Cable Gauge Size (AWG/mm2) | Ampacity (A) |
14 (2.08) | 20 |
12 (3.31) | 25 |
10 (5.25) | 35 |
8 (8.36) | 50 |
6 (13.3) | 65 |
4 (21.1) | 85 |
2 (33.6) | 115 |
1 (42.4) | 130 |
1/0 (53.5) | 150 |
2/0 (67.4) | 175 |
4/0 (107) | 230 |
The above values are from the NEC Table 310.15(B)16 for copper cables rated at 75°C (167°F), operating at an ambient temperature of no more than 30°C (86°F). Lengths in excess of 6 feet (1829 mm) may require heavier gauge cable to avoid excess voltage drop in undersized wiring.
DO NOT connect batteries in series. Doing so can cause catastrophic failure.
To connect multiple batteries in parallel, first connect the Positive Terminals of the batteries to each other. Then, connect the Negative Terminals of the batteries to each other. Finally, connect the Positive Terminal of the first battery and the Negative Terminal of the last battery to the system. This type of arrangement is used to increase the overall battery capacity while keeping the battery voltage the same.
To ensure good contacts between the cable lugs and the battery terminals, please use the appropriate number of washers to allow for as much thread engagement as possible without bottoming out the terminal bolt. The correct number of washers can be determined by hand-tightening the terminal bolt with just the cable lug in place and observing the gap that is present. Use the number of washers needed so that the washer stack is slightly larger than the observed gap.
It is important to ensure that the cable lug and the top surface of the terminal are in contact. The washer(s) must be placed on top of the lug. Do not place the washer(s) between the battery terminal and the cable lug as this can cause high resistance and excessive heating.
NOTE: Please use the included Long Terminal Bolts when needed to secure multiple cable lugs on a single battery terminal.
The battery should be installed in a clean, cool, and dry place, keeping water, oil, and dirt away from the battery. The accumulation of these materials on the battery can cause current leakage, resulting in self-discharge and a possible short-circuit. Sufficient air flow must be provided to prevent excessive heat build-up and to minimize temperature variation between the paralleled connected batteries.
The battery is shipped in shelf mode. Before using the battery for the first time, please activate the battery with a charge/discharge current greater than 1A and measure the terminal voltage to validate. Prior to long periods of storage, please disconnect the battery from the system. The battery will enter shelf mode automatically after 24 hours. In shelf mode, the battery has a low self-discharge rate and can hold the charge for a longer period of time.
NOTE: Parallel connected batteries can be activated simultaneously with a charge/discharge current greater than 1A for each battery.
NOTE: Depending on the length of time between manufacturing and shipping, the battery may be received at a partial state of charge (SOC). Please fully charge the battery prior to the initial use.
During the standard charging process, the battery is first charged at a constant current of 30A until the battery voltage reaches 14.4V. Then, the battery is charged at a constant voltage of 14.4V while tapering the charge current. The standard charging process is considered complete when the charge current is less than 5A. However, leaving the battery on float will continue to balance the battery cells and will not damage the battery. The standard charging process normally takes 3.5 hours. Safe charging requires battery temperatures between 32°F and 131°F (0°C and 55°C).
During the standard discharging process, the battery is discharged at a constant current of 30A until the battery voltage reaches 10V. Safe discharging requires battery temperatures between -4°F and 140°F (-20°C and 60°C).
Please perform regular inspections following the steps below:
Terminal corrosion may adversely affect the battery performance and present a safety hazard. Please keep terminals free of corrosion.
Please clean the battery at regular intervals following the steps below:
Please check the battery voltage periodically to assess battery health. If the battery is unable to be activated with a charge/discharge current greater than 1A or the battery is activated with a resting voltage below 10V, the battery may have been severely overdischarged due to self-discharge or parasitic loads. Please stop using the battery until the fault can be corrected and the battery can be charged.
Please follow the tips below to ensure that the battery emerges from storage in a good condition:
The battery contains a battery management system (BMS) that warns the user and protects the battery from overvoltage, undervoltage, overcurrent, short circuit, high temperature, and low temperature. Please refer to the following table for the triggering and recovery condition of each warning and protection.
Battery Operation Status | Condition | ||
Battery Overvoltage | Protection | Trigger | Battery Voltage≥14.8V |
Recover | Battery Voltage≤13.8V/ Discharge Current≥1A | ||
Battery Cell Overvoltage | Protection | Trigger | Battery Cell Voltage≥3.7V |
Recover | Battery Cell Voltage≤3.45V/ Discharge Current≥1A | ||
Battery Undervoltage | Warning | Trigger | Battery Voltage≤12V |
Recover | Battery Voltage≥12.4V/ Charge Current≥1A | ||
Protection | Trigger | Battery Voltage≤10V | |
Recover | Battery Voltage≥12.4V/ Charge Current≥1A | ||
Battery Cell Undervoltage | Warning | Trigger | Battery Cell Voltage≤3.0V |
Recover | Battery Cell Voltage≥3.1V/ Charge Current≥1A | ||
Protection | Trigger | Battery Cell Voltage≤2.5V | |
Recover | Battery Voltage≥3.1V/ Charge Current≥1A | ||
Charge High Temperature | Warning | Trigger | Battery Temperature≥122°F (50°C) |
Recover | Battery Temperature≤113°F (45°C) | ||
Protection | Trigger | Battery Temperature≥131°F (55°C) | |
Recover | Battery Temperature≤113°F (45°C) | ||
Discharge High Temperature | Warning | Trigger | Battery Temperature≥131°F (55°C) |
Recover | Battery Temperature≤122°F (50°C) | ||
Protection | Trigger | Battery Temperature≥131°F (60°C) | |
Recover | Battery Temperature≤122°F (50°C) | ||
Charge Low Temperature | Warning | Trigger | Battery Temperature≤44.6°F (7°C) |
Recover | Battery Temperature≥50°F (10°C) | ||
Protection | Trigger | Battery Temperature≤32°F (0°C) | |
Recover | Battery Temperature≥41°F (5°C) | ||
Discharge Low Temperature | Warning | Trigger | Battery Temperature≤14°F (-10°C) |
Recover | Battery Temperature≥23°F (-5°C) | ||
Protection | Trigger | Battery Temperature≤-4°F (-20°C) | |
Recover | Battery Temperature≥1.4°F (-17°C) | ||
Charge Overcurrent | Warning | Trigger | Charge Current≥60A |
Recover | Charge Current≤55A | ||
Primary Protection | Trigger | Charge Current≥110A (Delay 15s) | |
Recover | Charge Current≤55A (Delay 1min)/ Discharge Current≥1A | ||
Secondary Protection | Trigger | Charge Current≥120A | |
Recover | Charge Current≤55A (Delay 1min)/ Discharge Current≥1A | ||
Discharge Overcurrent | Warning | Trigger | Discharge Current≥110A |
Recover | Discharge Current≤100A | ||
Primary Protection | Trigger | Discharge Current≥115A (Delay 15s) | |
Recover | Discharge Current≤100A (Delay 1min)/ Charge Current≥1A | ||
Secondary Protection | Trigger | Discharge Current≥120A | |
Recover | Discharge Current≤100A (Delay 1min)/ Charge Current≥1A | ||
Short Circuit | Protection | Trigger | Discharge Current≥1000A |
Recover | Remove Short Circuit (Delay 1min)/ Charge Current≥1A |
NOTE
The battery employs bypass circuit to maintain the balance between each battery cell group. Each battery cell group is connected with a bypass resistor and a switch in parallel. During the charging process, if the highest-voltage battery cell group reaches the set balancing starting voltage and the voltage difference between the highest-voltage and the lowest-voltage battery cell group exceeds the set voltage difference, the switch connected to the highest-voltage battery cell group will be closed to shunt the charge current around the highest-voltage battery cell group through the bypass resistor until the voltage difference drops below the set value. To avoid excessive energy loss, the battery cell balancing is only performed during the charging process.
If any problems occur during the battery operation, please refer to the following instructions or contact us for assistance:
Battery Cell Type | Lithium Iron Phosphate |
Rated Capacity (0.3C, 25°C) | 100Ah |
Nominal Voltage | 12.8V |
Voltage Range | 10V~14.8V |
Cycle Life (0.5C, 25°C) | 2000 Cycles (80% DOD) |
Dimension | 12.99 x 6.77 x 8.43 inch 330 x 172 x 214 mm |
Weight | 28.7 lbs. / 13.0 kg |
Connection Method | Parallel |
Terminal Bolt Size | M8 x 1.25 x 15 mm |
Recommended Terminal Torque | 88.5 inch-lbs ~106.2 inch-lbs / 10 N-m ~12 N-m |
Protection Rating | IP65 |
Communication Protocol | Modbus |
Certification | MSDS, UN38.3, FCC |
Charge Voltage | 14.4V |
Maximum Continuous Charge Current | 50A |
Maximum Continuous Discharge Current | 100A |
Charge Temperature Range | 32°F~131°F (0°C~55°C) |
Discharge Temperature Range | -4°F~140°F (-20°C~60°C) |
Storage Temperature Range | -13°F~149°F (-25°C~65°C) |
Operation Relative Humidity | 10%~95% |
