Page 1

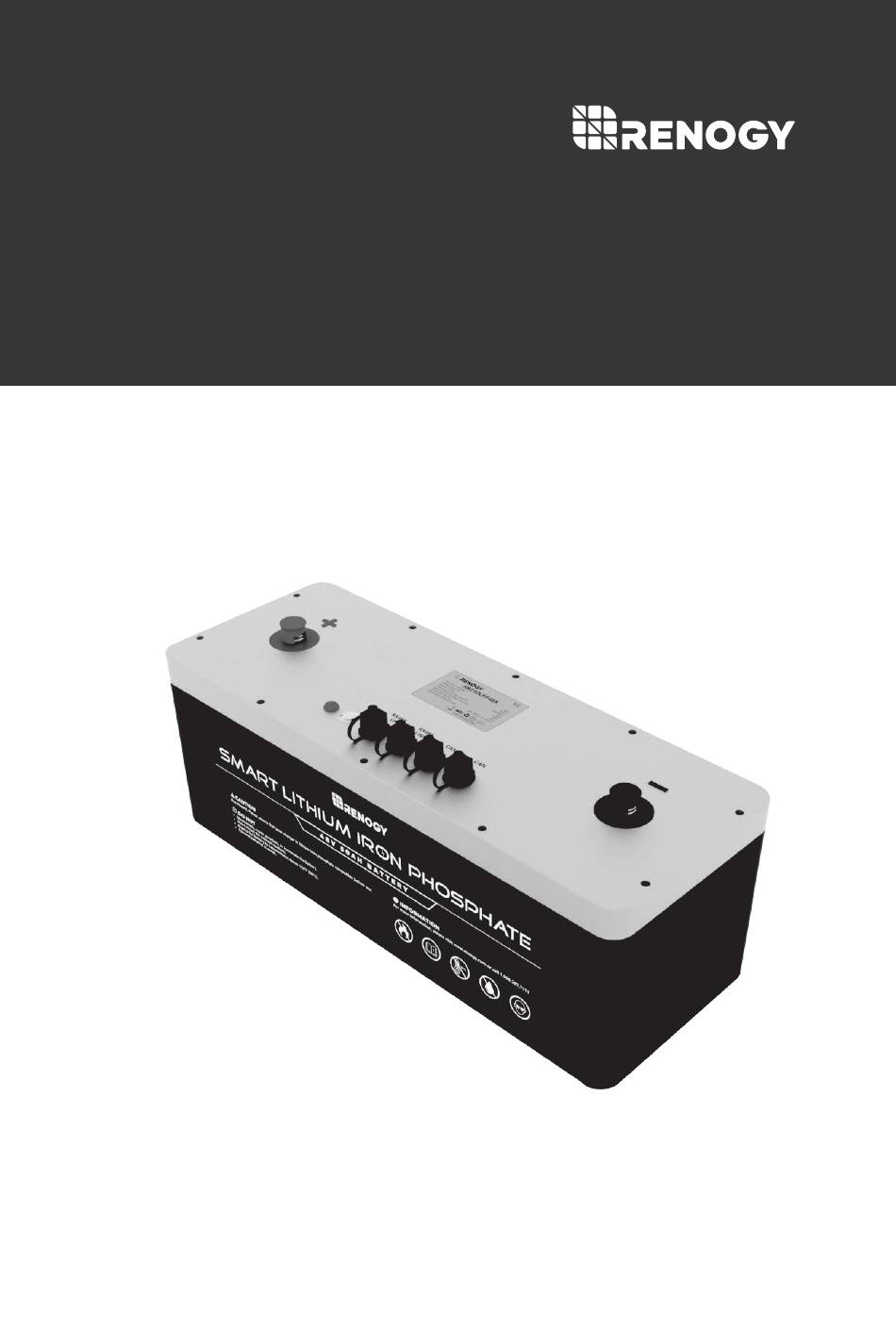

Battery SMART LITHIUM IRON PHOSPHATE 48V 50Ah Version 2.0...
Page 2
SAFETY INSTRUCTIONS DO NOT puncture, drop, crush, burn, penetrate, shake, or strike the battery. DO NOT open, dismantle, or modify the battery. Please keep the battery away from water, heat sources, sparks, and hazardous chemicals. DO NOT short-circuit the battery terminals. Doing so can cause current bursts and lead to irreversible damage to the system and the battery.
Page 3
SAFETY INSTRUCTIONS The battery leaves the factory in shelf mode. To switch the battery to active mode, please long press the Power Button for 1 second. The LED Indicator will illuminate after 1~2 seconds of software initialization to indicate that the battery has been successfully switched to active mode.
Page 4
The LED Indicator indicates the battery operation status. Please refer to the following table for more details. LED Indicator Battery Operation Status Standby Slow Flashing Green Fast Flashing Green Normal Discharging Normal Charging / Fully Charged Solid Green Solid Yellow Charge Over-current Warning / Discharge Over-current Warning Battery Under-voltage Warning / Battery Cell Under-voltage Warning Flashing Yellow...
Page 5
* Red-Red-Red-Yellow-Yellow-Yellow-Green-Green-Green ** Red-Yellow-Green-Red-Yellow-Green-Red-Yellow-Green Please leave the battery in shelf mode during installation. DO NOT switch the battery to active mode until making sure all the connections are correct and secure. Connecting active batteries to the system may trigger the short circuit protection of battery. The self-heating function needs to be disabled or enabled individually on each battery in the parallel battery bank.
Page 6
TROUBLESHOOTING If the Power Button is not able to switch the battery to active mode or the battery resting voltage is under 41.62V in active mode at room temperature, the battery may have been severely over-discharged due to self-discharge or parasitic loads. Please revive the battery using a battery charger or charge controller with the lithium battery activation function.
Page 7
SPECIFICATIONS Cell Type LiFePO4 Rated Capacity (0.2C) 50Ah Nominal Voltage Voltage Range 42V~55.5V Maximum Charge/Discharge Current Charge Voltage Charge Temperature Range 32 ~131 / 0 ~55 Discharge Temperature Range -4 ~140 / -20 ~60 Storage Temperature Range -13 ~149 / -25 ~65 Recommended Storage Temperature 14 ~77 / -10 ~25...
Page 8
RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 2775 E Philadelphia St, Ontario, CA 91761, USA 909-287-7111 www.renogy.com support@renogy.com 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com https://uk.renogy.com supportuk@renogy.com https://de.renogy.com supportde@renogy.com...
