Summary of Contents for Renogy RBT50LFP48S

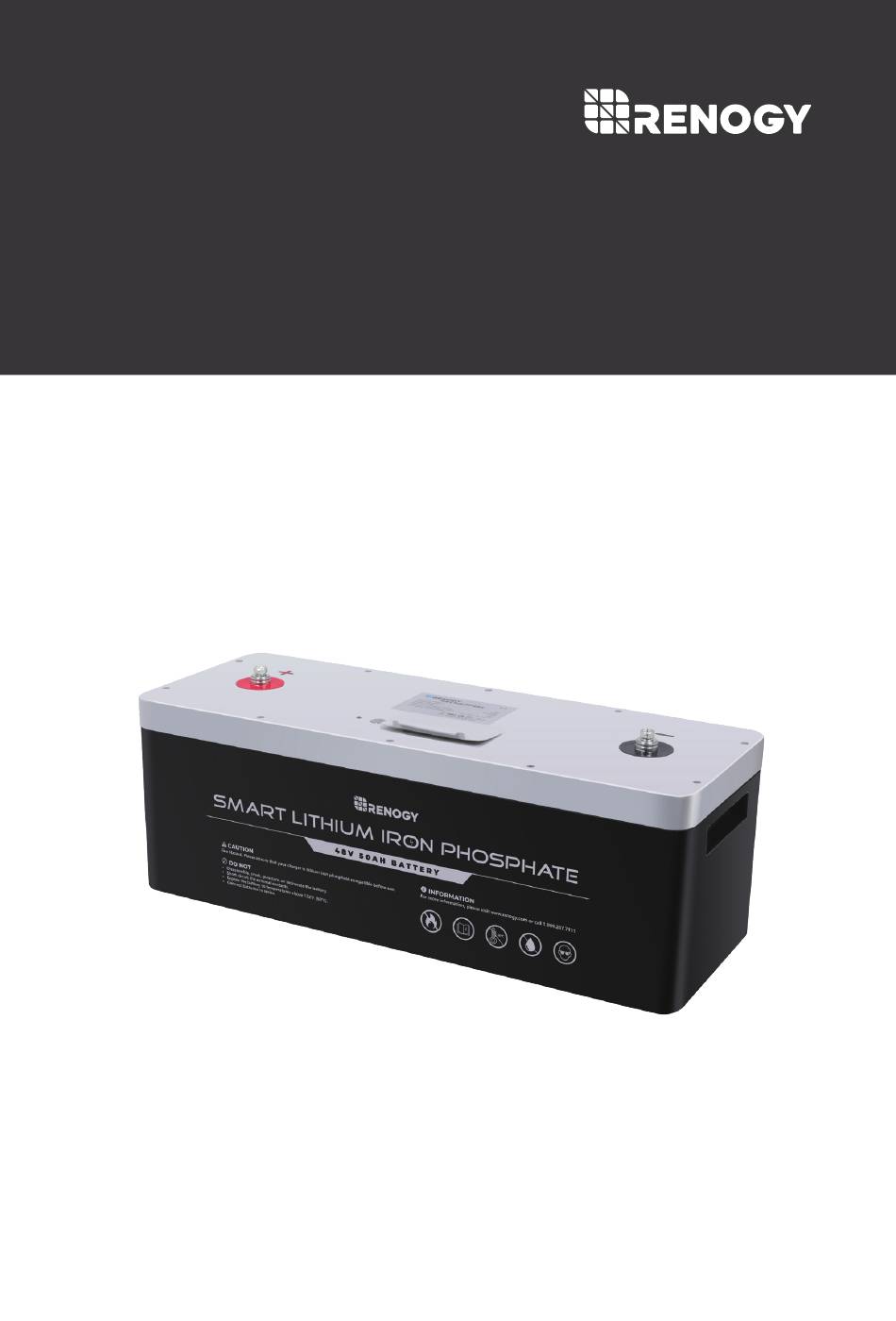

- Page 1 Battery SMART LITHIUM IRON PHOSPHATE 48V 50Ah Version 1.0...
- Page 2 Important Safety Instructions Please save these instructions. This manual contains important installation, operation, and maintenance instructions for the Smart Lithium Iron Phosphate Battery. Please observe these instructions and keep them located near the battery for further reference. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information.
- Page 3 DO NOT touch any terminals or connectors. DO NOT touch the exposed electrolyte or powder if the battery casing is damaged. Uncovered electrolyte or powder that has contacted the skin or eyes MUST be flushed out with plenty of clean water immediately. Seek medical attention afterwards. Please make sure any battery charger or charge controller has been disconnected before working on the battery.
-
Page 4: Table Of Contents
Table of Contents General Information Key Features Product Overview Identification of Parts Dimensions Additional Components Preparation Battery Installation Inspection Cable Sizing Connecting Batteries in Banks Securing Cable Connections Installation Environment Battery Operation Battery Maintenance Battery Storage Battery Management System Troubleshooting Specifications... -
Page 5: General Information

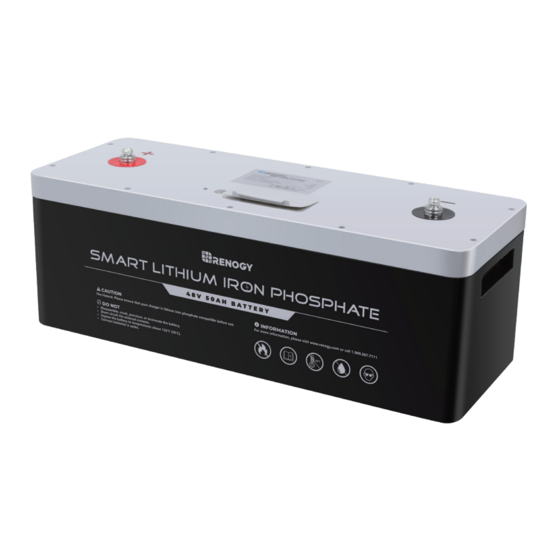

General Information The Renogy Smart Lithium Iron Phosphate Battery is the perfect option for off-grid energy storage systems. The 48V nominal voltage ensures low heat generation and high efficiency during high power transmission. The modular design easily scales to meet a range of configurations—making it simple to tailor your energy requirements to specific projects. -
Page 6: Product Overview
Product Overview Identification of Parts ① ② ③④ ⑤⑥ ⑦ ① Positive Terminal (w/ Terminal Cover) ⑤ RS485 UP Communication Port ② Negative Terminal (w/ Terminal Cover) ⑥ RS485 LINK Communication Port ③ LED Indicator ⑦ CAN Communication Ports ④ Power Button Dimensions [22.70 in] 576.0 mm... -
Page 7: Additional Components
[8.46 in] 215.0 mm Additional Components Long Terminal Bolts (2) The Long Terminal Bolts (M8 x 1 x 20) are used to secure multiple cable lugs on a single battery terminal. Preparation Before the installation and operation of the battery, it is recommended to have the following equipment or tools available: Proper Protective Equipment Insulated Tool(s) -
Page 8: Inspection
DO NOT short-circuit the battery terminals. Doing so can cause current bursts and lead to irreversible damage to the system and the battery. Please verify the polarity before connecting wiring. Reversing polarity can and will destroy the battery. Please use circuit breakers, fuses, or disconnects appropriately sized by a certified electrician, licensed installers, or regional code authorities to protect all electrical equipment. -
Page 9: Connecting Batteries In Banks
RS485 UP Commu- nication Ports of the latter ones using CAT5 (or above) Ethernet straight through cables (not included). The Renogy Monitoring Screen or the Renogy Bluetooth Module should be connected to the RS485 UP Communication Port of the first battery. -
Page 10: Securing Cable Connections
Securing Cable Connections Please secure all cable connections to the proper specification in order to ensure good contact between the cable lugs and the terminals. Over-tightening cable connections can cause terminal breakage and loose cable connections can cause terminal meltdown or fire. Please use an insulated Philips screwdriver to tighten the cable connections. -
Page 11: Battery Operation
Battery Operation DO NOT over-charge or over-discharge the battery. DO NOT discharge the battery at high temperatures above 140°F (60°C). Power Button Operation The battery can be switched between active mode and shelf mode with the Power Button. When the battery is in shelf mode, long press the Power Button for 1 second to switch the battery to active mode. - Page 12 Protection Condition Slow Flashing Green Standby Fast Flashing Green Normal Discharging Solid Green Normal Charging / Fully Charged Solid Yellow Charge Over-current Warning / Discharge Over-current Warning Flashing Yellow Battery Under-voltage Warning / Battery Cell Under-voltage Warning Charge Over-current Protection / Discharge Over-current Protection / Battery High Temperature Protection / Solid Red Battery Low Temperature Protection / Short Circuit Protection...
- Page 13 The self-heating function needs to be disabled or enabled individually on each battery in the parallel battery bank. The self-heating function will not be able to operate normally if a PWM charge controller or a small current battery charger is used to charge the battery at low temperatures. It is recommended to disable the self-heating function to prevent it from starting and stopping operation frequently and consuming the battery.
-
Page 14: Battery Maintenance
It is recommended to pair the battery with discharge equipment featuring low voltage disconnect in the system. During the standard discharging process, the battery is discharged a constant current of 10A until the battery voltage reaches 41.62V. Safe discharging requires battery temperatures between -4°F and 140°F (-20°C and 60°C). -
Page 15: Battery Storage
Battery Storage Please follow these tips to ensure that your battery emerges from storage in good condition: Charge the battery to 30%~50% and switch the battery to shelf mode using the Power Button. Disconnect the battery from the discharge equipment to eliminate any potential parasitic loads that may discharge the battery. - Page 16 Battery Operation Status Condition Triggering Battery Voltage≥55.5V Battery Protection Over-voltage Recovery Battery Voltage≤51V / Discharge Current≥1A Triggering Battery Cell Voltage≥3.75V Battery Cell Protection Over-voltage Recovery Battery Cell Voltage≤3.4V / Discharge Current≥1A Triggering Battery Voltage≤45.75V Warning Recovery Battery Voltage≥50V / Charge Current≥1A Battery Under-voltage Triggering...
- Page 17 Battery Operation Status Condition Triggering Charge Current≥51A Warning Recovery Charge Current≤40A Triggering Charge Current≥55A (Delay 15s) Primary Charge Charge Current≤40A (Delay 1min) / Protection Recovery Over-current Discharge Current≥1A Triggering Charge Current≥120A Secondary Charge Current≤40A (Delay 1min) / Protection Recovery Discharge Current≥1A Triggering Discharge Current≥51A Warning...
-
Page 18: Troubleshooting
Troubleshooting If any problems occur during battery operation, please refer to the following instructions or contact us for assistance: If the Power Button is not able to switch the battery to active mode or the battery resting voltage is under 41.62V in active mode at room temperature, the battery may have been severely over-discharged due to self-discharge or parasitic loads. -
Page 19: Specifications
Specifications General LiFePO4 Cell Type Rated Capacity (0.2C) 50Ah Nominal Voltage Voltage Range 42V~55.5V Cycle Life (0.2C, 25℃) 4500 Cycles (80% DOD) Insulation Resistance ＜20mΩ 22.7 x 8.5 x 7.9 inch / Dimension 576 x 215 x 200 mm Weight 60.8 lb. - Page 20 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 2775 E Philadelphia St, Ontario, CA 91761, USA 909-287-7111 www.renogy.com support@renogy.com 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com https://uk.renogy.com supportuk@renogy.com https://de.renogy.com supportde@renogy.com...
