Ruckus Q910 LTE Access Point
Quick Setup Guide

Introduction

This Quick Setup Guide provides step-by-step instructions on how to set up
your Ruckus Q910 LTE Access Point (AP). After completing the steps
described in this guide, you will be able to place the Q910 at your site and
provide LTE wireless network access to users.

Before You Begin

Before deploying the Ruckus Q910, verify that all items listed in Package
Contents are included in the package. If any item is damaged or missing,
notify your authorized Ruckus Wireless sales representative. Also, make
sure that you have the all the hardware and tools mentioned in the

Required Hardware and Tools

on page 1.
You can check for the latest information and release documentation at
http://support.ruckuswireless.com/documents
Software License and Limited Warranty are available at
http://support.ruckuswireless.com/warranty
Required Hardware and Tools
• 1/2" (13mm) flat-blade screwdriver or equivalent
• No. 2 Phillips screw driver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole--OR--a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors, flat
washers, and hex nuts for flat-surface mount
• Four factory-supplied 1/2" (12.7mm) wide stainless steel adjustable
clamps, 2.5" (63.5mm) diameter, for mounting bracket on smaller poles
• Ruler

Package Contents

A complete Q910 field installation package includes all of the items listed
below (see Figure 1 for illustrations):
• Q910 LTE Access Point (A)
• Two M25 data cable glands (B), packed in the Safety Cable kit
• Outdoor AP Mounting Bracket Kit (C), the box consists of:
– Mounting bracket
– U-joint bracket
– Long (175mm) linkage bracket
– Short (100mm) linkage bracket
Copyright © 2024 CommScope, Inc. All rights reserved.
Published March 2024, Part Number 800-71412-001 Rev C
– AP bracket (set of two pieces)
– Four (4) hose clamps
– Packet of screws, washers, and other hardware
• Safety Cable kit (D) and Quick Setup guide
• One ground wire with lug (E), packed in the Safety Cable kit
• Ruckus End User License Agreement/Limited Warranty Statement
• Regulatory Statement
• This Quick Setup Guide

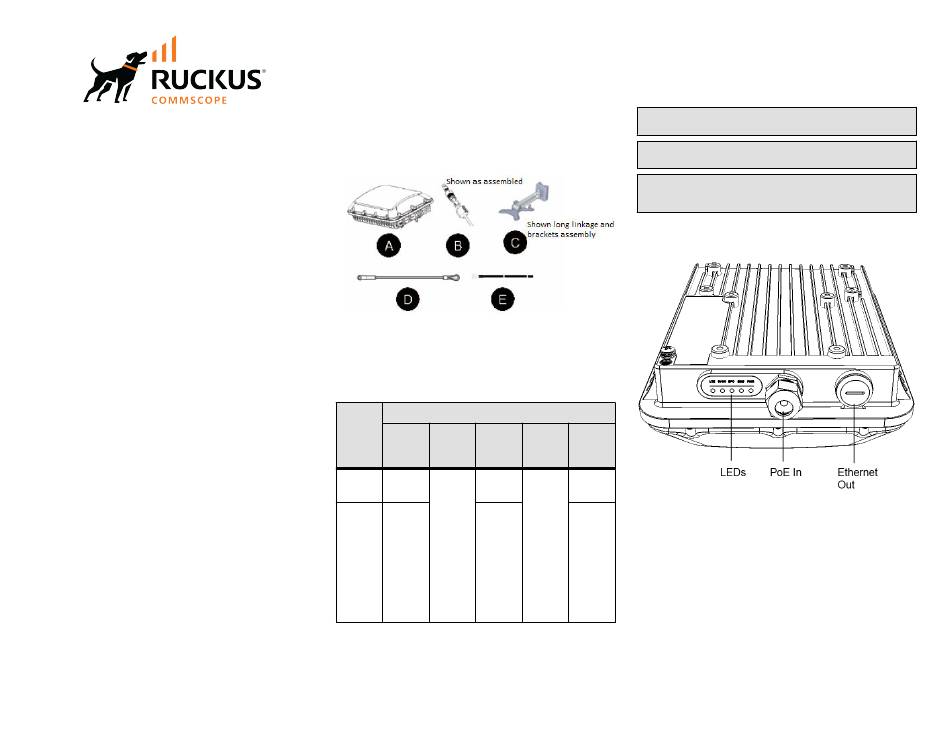

FIGURE 1 Package Contents

Determining Data Port Usage

You can daisy chain up to three Q950 APs at a single installation point. You
can use Table 1 to determine SPF trans-receiver and AP ports usage.
TABLE 1 Daisy-chaining APs
Data-In Daisy-Chain Configuration
Cable
AP1- AP1- AP2-
Port1: AP2/ Port
SFP Cable 1:SFP
Cat5E or E1MG- AP1- E1MG-
Cat6a TX Port3 to TX
AP2-
Fiber E1MG- N/A
Port1 /
(MMF or LHA-
Cat5E
SMF) OM-T or
E1MG-
LX-OM-T
or
E1MG-
SX-OM-T

Step 1: Connecting and Sealing the RJ45 Cables

The Q910 may use one or two RJ-45 cables, one for Ethernet and Power
(PoE IN), and another when the Q910 is optionally supplying Ethernet out
to a peripheral device, such as a small camera or blackhaul radio. Connect
and seal the RJ-45 cables using the M25 data cable glands as shown in
Figure 3.
WARNING! Do not use any PoE Injector that is not tested and approved
by Ruckus Wireless to power the Q910 Access Point.
WARNING! Do not plug PoE IN power into the Ethernet OUT port. See
Figure 2.
WARNING! If using a PoE switch to supply power to the Q910, 30W
MUST be reserved for the Q910 on the switch. Failure to ensure a 30W
supply may result in unpredictable operation of the access point.
FIGURE 2 LEDs, PoE IN and Ethernet OUT Ports
AP2- AP3-
AP3/ Port1
Cable
AP2- E1MG-
Port3 to TX
AP3-
N/A 1. Feed the end of the cable through the sealing nut, rubber O-ring,
Port1/
clamping ring assembly and cable gland base as shown in Figure 3.
Cat5E
