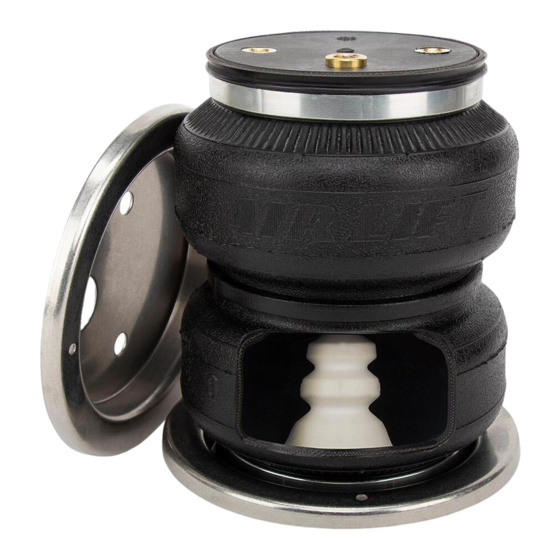

LoadLifter 5000 Ultimate Plus
Introduction
The items included in the 52300 upgrade kit are intended to replace the air line, air fittings
and Schrader valves in compatible LoadLifter 5000 and LoadLifter 5000 Ultimate kits.
This kit may require additional clearance between the top of the air spring and upper
bracket in order to properly install the new fittings and braided stainless steel air lines in
this application. Air Lift recommends verifying that there is adequate clearance to install
the air line components to avoid installation difficulty. In addition to the pieces in the kit
52300, kit 52301 also includes roll plates and air spring mounting hardware.
In order to install the upgraded roll plates and air spring hardware, the air spring
assembly must be removed from the vehicle. Check the condition of the existing
hardware before removing. Refer to the installation manual that came with the kit or
look it up on the Air Lift website at www.AirLiftCompany.com. Instructions for installing
the braided stainless steel air lines are included in this installation guide.
Kit No. 52301 includes extra hardware in order to accommodate many Air Lift
NOTE
LoadLifter 5000 kits. The parts in this kit do not replace the bracket-to-chassis mounting
hardware. There will be hardware left over after installation.
MN-1056 • (011705) • ERN 8631
U L T I M A T E
17284 17363 17376
18507 18504
21815 21813
21709
18623 18572
11880**
T M
TM
P L U S P L U S

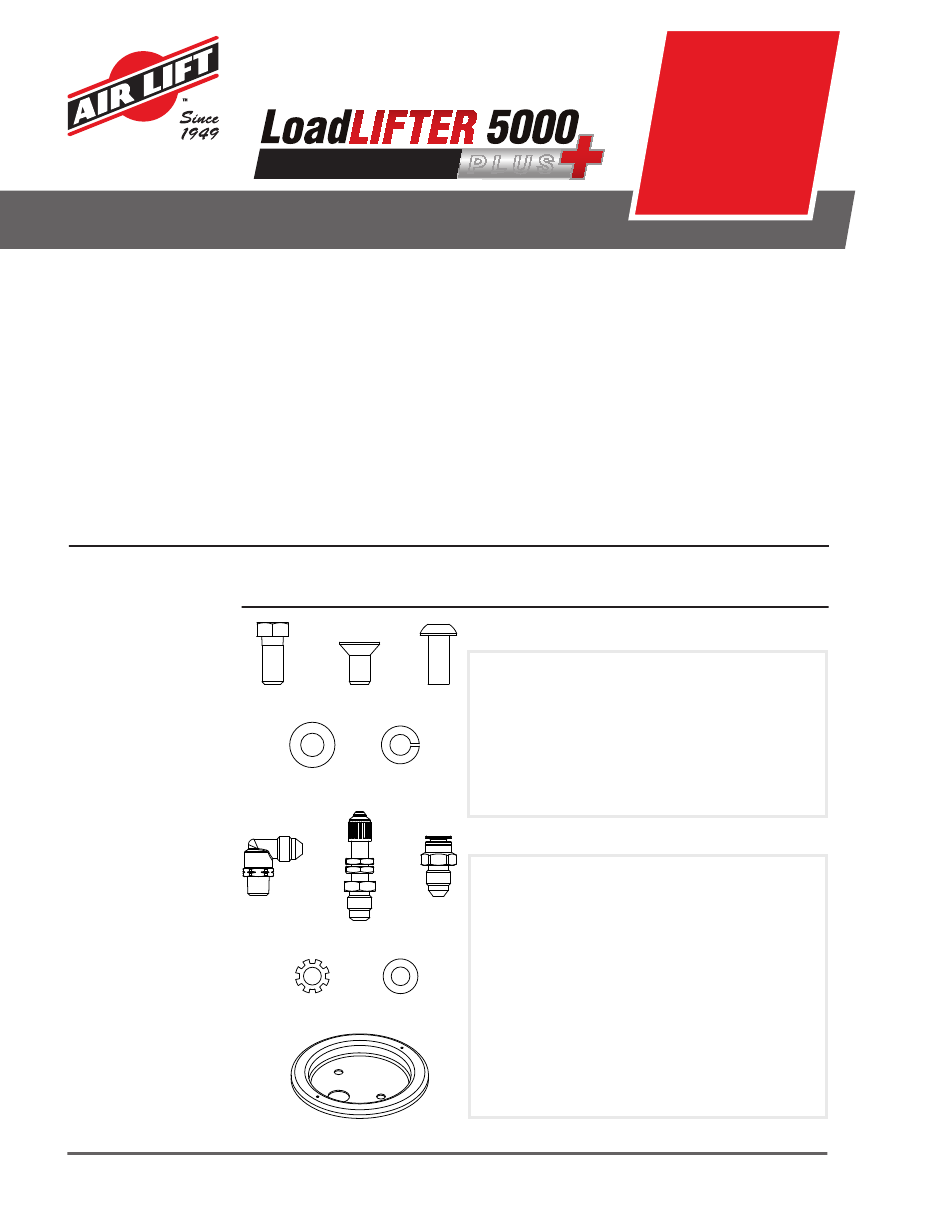

Hardware list (52300)
PART# DESCRIPTION
21815 Nickel-plated brass AN-type fitting ......................2
20987 Stainless steel braided air line* ...........................2
18572 M8 Stainless steel flat washer ............................2
18623 Stainless steel star washer .................................2
21709 Nickel-plated brass fill valve w/ cap & nuts .........2
10466 Zip tie* ...............................................................12
21813 Nickel-plated brass PTC-to-AN adapter fitting ...2
20084 Air line assembly* ...............................................1
Hardware list (52301)
PART# DESCRIPTION .......................................... QTY
11880 Stainless steel roll plate ......................................4
21815 Nickel-plated brass AN-type fitting .....................2
17363 3/8"-24 x 3/4" Stainless steel flat-head screw ....4
17284 3/8"-24 x 7/8" Stainless steel hex-head bolt .......4
17376 3/8"-24 x 7/8" Stainless steel button-head bolt ...4
18504 3/8" Stainless steel lock washer .........................4
18507 3/8" Stainless steel flat washer ...........................4
20987 Stainless steel braided air line* ...........................2
18572 M8 Stainless steel flat washer ............................2
18623 Stainless steel star washer ................................ 2
21709 Nickel-plated brass fill valve w/ cap & nuts .........2
10466 Zip tie* ...............................................................12
21813 Nickel-plated brass PTC-to-AN adapter fitting ..2
20084 Air line assembly* ...............................................1
** Not to scale * Not shown
Upgrade Kit
QTY
1
