Air Lift LoadLifter 5000 ULTIMATE Installation Manual

Adjustable air helper springs
Hide thumbs Also See for LoadLifter 5000 ULTIMATE:
Table of Contents

Advertisement

Quick Links

Download this manual

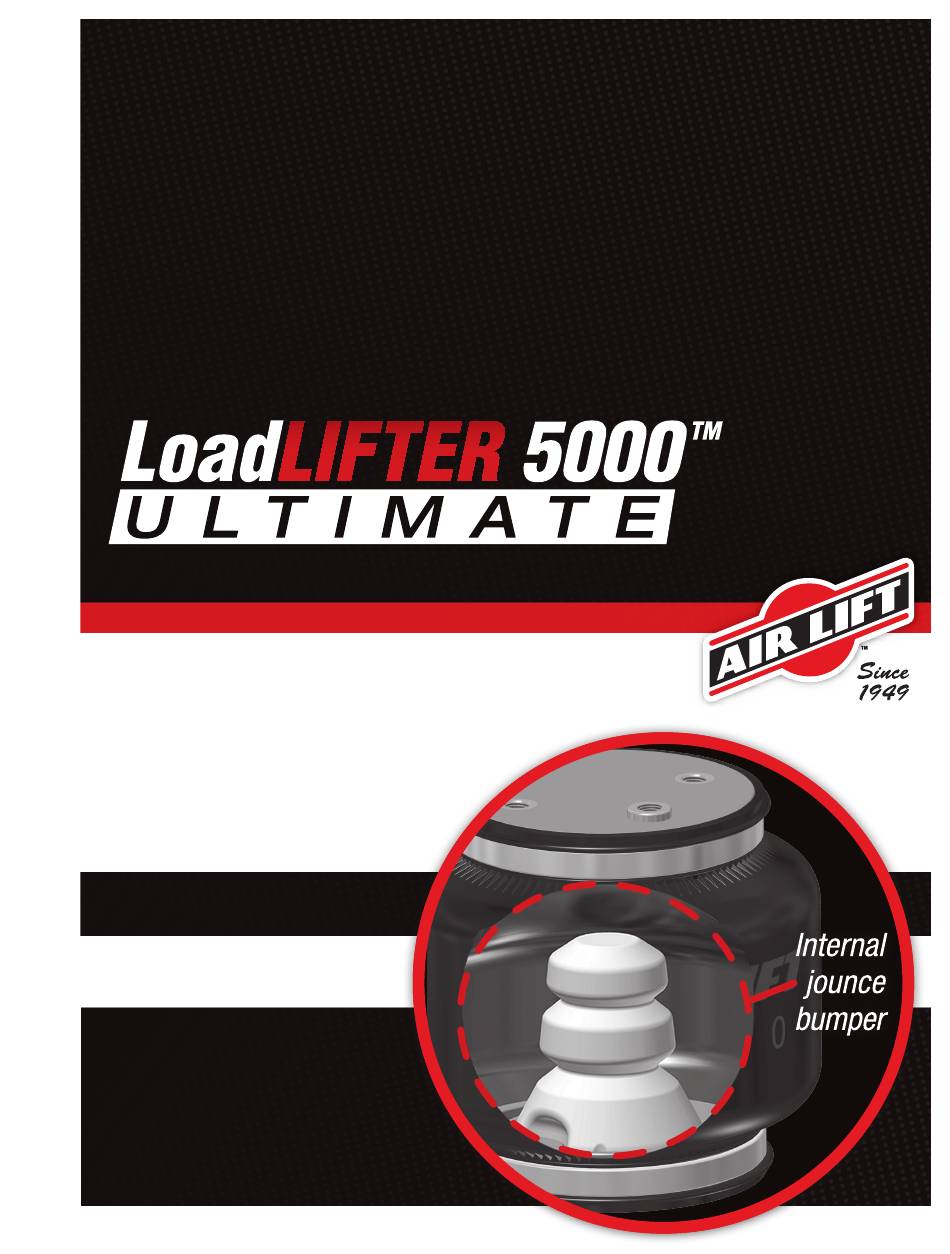

A D J U S TA B L E A I R H E L P E R S P R I N G S
TOW AND HAUL WITH SAFETY AND COMFORT
TM
Kit 88399
INSTALLATION GUIDE
For maximum effectiveness and
safety, please read these instructions
completely before proceeding with
installation.
Failure to read these instructions can result in an
incorrect installation.
MN-1027 • (011609) • ERN 8538

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LoadLifter 5000 ULTIMATE and is the answer not in the manual?

Questions and answers

Related Manuals for Air Lift LoadLifter 5000 ULTIMATE

Summary of Contents for Air Lift LoadLifter 5000 ULTIMATE

  • Page 1 A D J U S TA B L E A I R H E L P E R S P R I N G S TOW AND HAUL WITH SAFETY AND COMFORT Kit 88399 INSTALLATION GUIDE For maximum effectiveness and safety, please read these instructions completely before proceeding with installation.

  • Page 3: Table Of Contents

    Notation Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 D. Installing the LoadLifter 5000 Ultimate System ..5 Getting Started .

  • Page 4: Installation Diagrams

    LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate A. Installation Diagram fig. A.1 MN-1027...

  • Page 5: Hardware List And Tools List

    LoadLifter 5000 kits have silver roll plates . LoadLifter 5000 Ultimate LoadLifter 5000 black roll plate silver roll plate Missing or damaged parts? Call Air Lift customer STOP! STOP! service at (800) 248-0892 for a replacement part . MN-1027...

  • Page 6: Introduction

    . Air Lift Company reserves the right to make changes and improvements to its products and publications at any time . For the latest version of this manual, contact Air Lift Company at (800) 248-0892 or visit airliftcompany.com .

  • Page 7: Installing The Loadlifter 5000 Ultimate System

    LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate D. Installing the LoadLifter 5000 Ultimate System D. Installing the LoadLifter 5000 Ultimate System GETTING STARTED 1 . Raise the vehicle and support it in a way, using jack stands or equivalent, so that the axle can be safely dropped away from the frame .

  • Page 8: Assembling The Air Spring

    LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate 4 . Install the universal nuts (P) into the frame rail, lining up the holes in the frame and the threads in the nuts so that a bolt can be installed (Fig . D .4) . TECH TIP: a fat-tip screwdriver works well in prying the universal nut into position .
  • Page 9 LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate 2 . Set the upper air spring bracket (E) onto the top of the air spring using one set of holes with the 3/8”-24 x 7/8” hex cap screw (T), 3/8” lock washer (U) and 3/8”...
  • Page 10 LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate 5 . Set the lower bracket main plate assemblies onto the bellows with the roll plates installed . Attach with the 3/8”-24 x 7/8” flat head socket cap screws (S) (Fig . D .10) .

  • Page 11: Installing The Assemblies

    LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate 7 . Figure D .13 shows the driver’s (left) and passenger’s (right) side assemblies . Driver's side Passenger's side (left) assembly (right) assembly fig. D.13 INSTALLING THE ASSEMBLIES 1 . With the vehicle supported by jack stands, drop the axle or raise the body so that the assemblies can be put into position in between the axle and frame .
  • Page 12 LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate 3 . Set the lower clamp bars (A) over the carriage bolts located under the axle (Fig . D .16) . Attach with the 3/8” flat washers (N) and 3/8”-16 nylon lock nuts (M) . Evenly torque the lower clamp bar hardware to 16 lb .-ft .
  • Page 13 LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate 6 . Figures D .19 & D .20 show the lower bracket installed . Driver's side (left) assembly Passenger's side (right) assembly fig. D.19 fig. D.20 If the hard brake line is resting on...

  • Page 14: Installing The Air Lines

    This section explains how to set up the air spring kit to be controlled with Schrader valves and a separate compressed air source . An on-board air compressor system allows for hassle-free control of the air springs . Learn more about Air Lift air control systems at www.airliftcompany.com/products/compressor-systems .

  • Page 15: Tips For Installing Air Lines

    1” before bending . Inspect hose for scratches that run lengthwise on hose prior to installation . Contact Air Lift customer service at (800) 248-0892 if the air line is damaged . To watch a video demonstrating proper air fig.

  • Page 16: Finished Installation Photos

    LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate F. Finished Installation Photos 1 . These images show the finished installation of both sides (Figs . F .1, F .2, F .3 & F .4) . fig. F.1 fig. F.2 Passenger’s side (right) front view of kit Passenger’s side (right) inside frame view of kit...

  • Page 17: Before Operating

    DO NOT CUT OFF THE AIR LINE COMPLETELY AS THIS WILL USUALLY NICK THE CAUTION BARB AND RENDER THE FITTING USELESS . 3 . If the preceding steps have not resolved the problem, call Air Lift customer service at (800) 248-0892 . MN-1027...

  • Page 18: Installation Checklist

    . If a heat shield was included in the kit, install it . If there is no heat shield, but one is required, call Air Lift customer service at (800) 248-0892 .  Fastener test — Recheck all bolts for proper torque .

  • Page 19: Product Use, Maintenance And Servicing

    . Operating the vehicle below the minimum air spring pressure will void the Air Lift warranty . 5 . When increasing load, always adjust air pressure to maintain normal ride height . Increase or decrease pressure from the system as necessary to attain normal ride height for optimal ride and handling .

  • Page 20: Tuning The Air Pressure

    LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate TUNING THE AIR PRESSURE Pressure determination comes down to three things — level vehicle, ride comfort and stability . 1. Level vehicle If the vehicle’s headlights are shining into the trees or the vehicle is leaning to one side, then it is not level (Fig .

  • Page 21: Troubleshooting Guide

    Q. Will installing air springs increase the weight ratings of a vehicle? No . Adding air springs will not change the weight ratings (GAWR, GCWR and/ or GVWR) of a vehicle . Exceeding the GVWR is dangerous and voids the Air Lift warranty .
  • Page 22 LoadLifter 5000 Ultimate LoadLifter 5000 Ultimate Notes MN-1027...

  • Page 23: Limited Warranty And Returns Policy

    For additional warranty information contact Air Lift Company customer service . Replacement Part Information If replacement parts are needed, contact the local dealer or call Air Lift customer service at (800) 248-0892 . Most parts are immediately available and can be shipped the same day .

  • Page 24: Need Help

    Thank you for purchasing Air Lift products — the professional installer’s choice! Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or P .O . Box 80167 • Lansing, MI 48908-0167 Air Lift Company • 2727 Snow Road • Lansing, MI 48917 or P .O . Box 80167 • Lansing, MI 48908-0167 Toll Free (800) 248-0892 •...
