ACTIVATING GEN BOOST THROUGH EG4 MONITOR CENTER

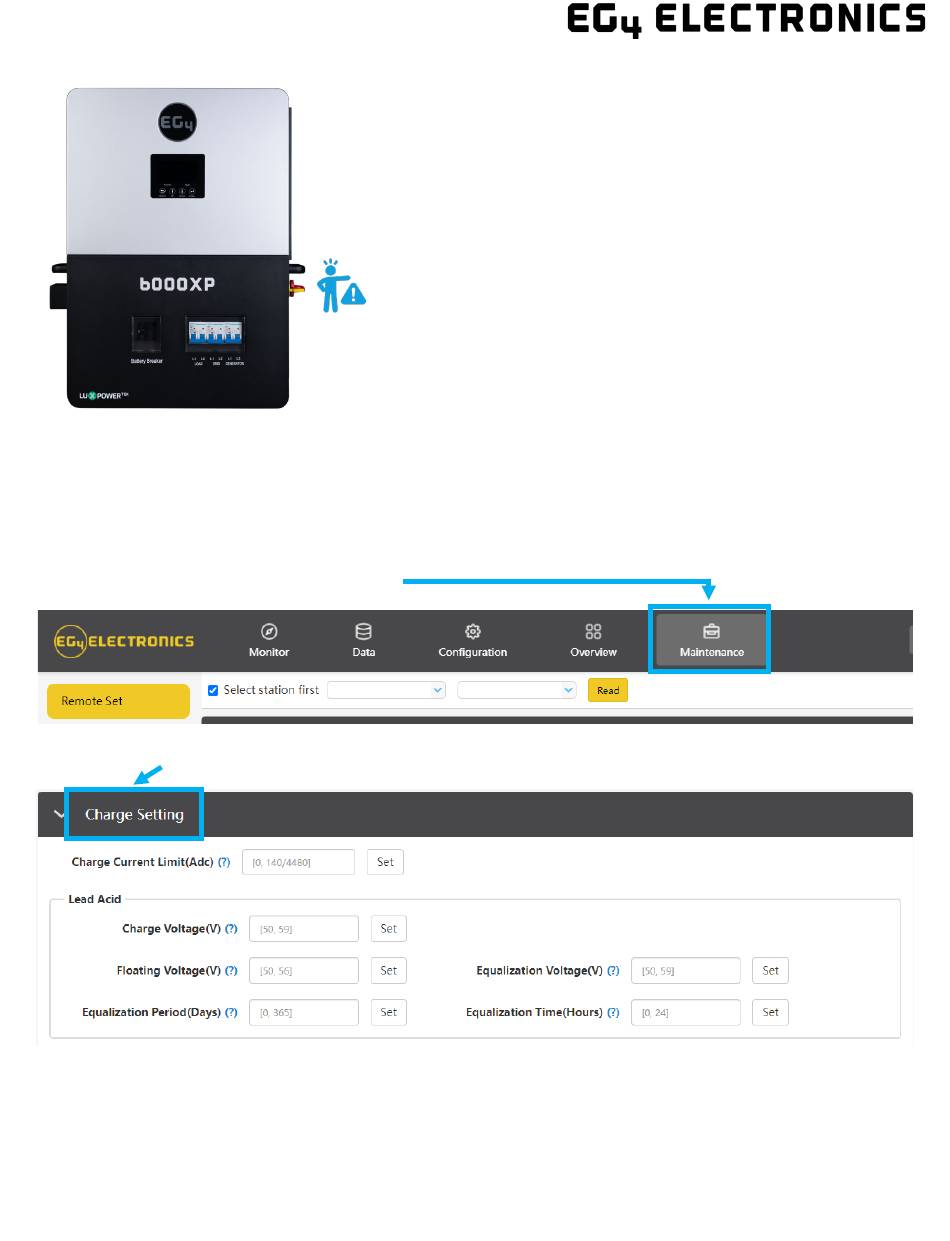

Follow the steps listed below to activate Generator Boost via Monitor Center:
1. Login to the Monitor Center and select the appropriate station.
2. Navigate to the "Maintenance" tab.
3. Navigate to the "Charge Setting" section.
©2024 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED.
VERSION 1.0 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
This document provides a brief overview of the newly added
"Generator Boost" setting via the latest firmware update. This setting
allows the 6000XP to pull supplemental power from both PV and
Battery whenever the generator power is not sufficient to handle all
loads. This setting can be activated via the EG4 Monitor System or the
NOTE:
Only installer or distributor accounts are able to
remotely set this function through the EG4 Monitor Center.
Endusers must set this via the LCD display on the front of
the unit.

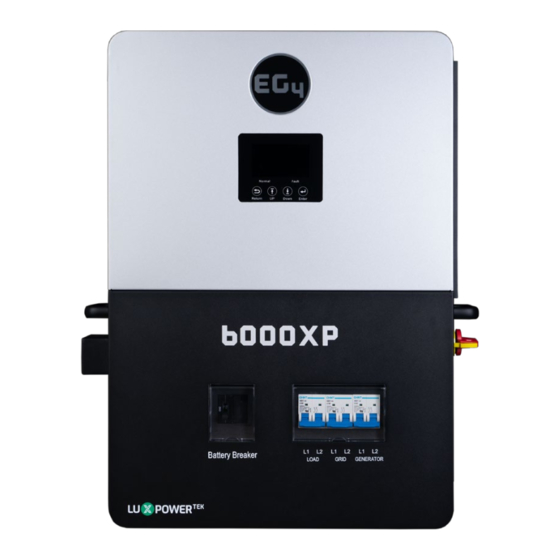

EG4 6000XP GEN BOOST
LCD display.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EG4 6000XP GEN BOOST
Summary of Contents for EG4 6000XP GEN BOOST
- Page 1 “Generator Boost” setting via the latest firmware update. This setting allows the 6000XP to pull supplemental power from both PV and Battery whenever the generator power is not sufficient to handle all loads. This setting can be activated via the EG4 Monitor System or the LCD display. NOTE: Only installer or distributor accounts are able to remotely set this function through the EG4 Monitor Center.
- Page 2 2. Navigate to setting 30 (GEN BOOST). 3. Press “Enter” to confirm the setting that will need changing. 4. Select “Enable” or “Disable”. 5. Press “Enter” to confirm the setting. ©2024 EG4 ELECTRONICS, LLC. ALL RIGHTS RESERVED. VERSION 1.0 | INFORMATION SUBJECT TO CHANGE WITHOUT NOTICE.
- Page 3 CONTACT US support@eg4electronics.com (903) 609-1988 www.eg4electronics.com...
