Spencer BOB User Manual
  1. Manuals
  2. Brands
  3. Spencer Manuals
  4. Medical Equipment
  5. BOB
  6. User manual

Spencer BOB User Manual

Stretcher support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The device is manufactured in compliance with directive 2006/42/EC
Original version of the instruction manual
Warning
The information contained in this manual is subject to change without notice.
The Diagrams are inserted only for reference and may vary slightly from the actual device.
Spencer Italia S.r.l. assumes no responsibility for any errors contained herein or for damage, accidents or consequences connected with the supply,
performance or use of this manual
Prima emissione:
2016
Rev. 1:
Warning
22/11/2019
The information contained in this manual is subject to change without notice.
The Diagrams are inserted only for reference and may vary slightly from the actual device.
Spencer Italia S.r.l. assumes no responsibility for any errors contained herein or for damage, accidents or consequences connected with the supply,
performance or use of this manual
Prima emissione:
Rev. 1:
SPENCER ITALIA SRL a socio unico
www.spencer.it
|
The device is manufactured in compliance with directive 2006/42/EC
Original version of the instruction manual
2016
22/11/2019
support.spencer.it
- e-mail:
info@spencer.it
SPENCER ITALIA SRL – Via Provinciale n° 12
SPENCER ITALIA SRL
Quality System EN ISO 9001 – EN ISO 13485
43038 Sala Baganza (PR) – Italy
– Via Provinciale 12 – 43038 Sala Baganza (PR) - Italy
| service:
service@spencer.it
User manual
Stretcher support
User manual
Stretcher support
User manual
BOB
Stretcher support
|Ph./Tel. +39.0521.541111
BOB
BOB
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOB and is the answer not in the manual?

Questions and answers

Related Manuals for Spencer BOB

Summary of Contents for Spencer BOB

  • Page 1 The Diagrams are inserted only for reference and may vary slightly from the actual device. Spencer Italia S.r.l. assumes no responsibility for any errors contained herein or for damage, accidents or consequences connected with the supply, The device is manufactured in compliance with directive 2006/42/EC...
  • Page 2 Avvertenza Le informazioni contenute in questo documento sono soggette a modifica senza preavviso e sono da intendersi come impegno da parte della Spencer Italia S.r.l. con riserva di modifiche. I prodotti Spencer vengono esportati in molti paesi nei quali non valgono sempre identiche regole. Per questa ragione possono esserci differenze fra quanto qui descritto ed i prodotti consegnati. Spencer lavora costantemente al perfezionamento di tutti i tipi e modelli dei prodotti venduti.

  • Page 3: Intended Use

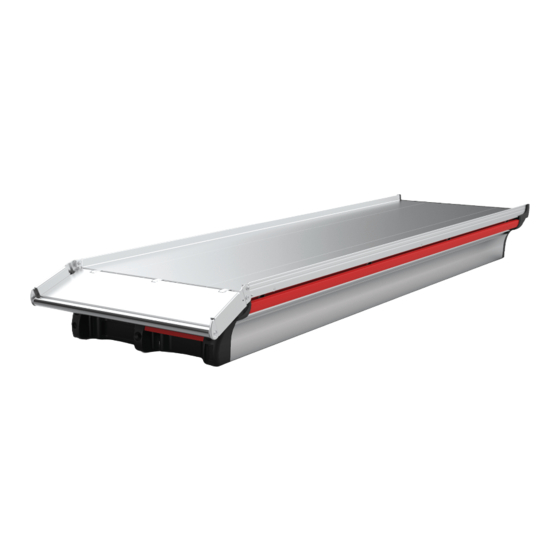

    Optionals like ramp, led lights, cigarette lighter or others, could generate variants of the products and of the product code. 2. INTENDED USE BOB is a stretcher support to be permanently installed inside an ambulance to facilitate loading and unloading procedures of the stretcher. 3. REFERENCE STANDARDS As a distributor or end user of products manufactured and/or marketed by Spencer Italia S.r.l.

  • Page 4: User Training

    The best instructions consist in continuous practice under the supervision of trained and competent staff.  The use of BOB stretcher support, is allowed only and exclusively to properly trained and qualified staff . Before any operation on the device , is necessary to read carefully each section of this user manual ...

  • Page 5: Maintenance & Cleaning

     Spencer Italia S.r.l. disclaims any liability for any damage, direct or indirect, that is the result of incorrect repairs or use of products made by Spencer Italia S.r.l. Repairs must necessarily be carried out by an authorized Spencer Italia service centre, which in using original spare parts will provide a quality repair service in strict accordance with the technical specifications given by the manufacturer.

  • Page 6: Specific Warnings

    Requirements of operators BOB is a device intended for professional use only. Each operator must be trained in its use and maintenance of good operating conditions. Do not allow untrained people to assist in the use of the product, as this may cause injury to themselves or others.

  • Page 7: Technical Data And Components

    It is recommended to make the adjustments only when the vehicle is not moving. 8. TECHNICAL DATA AND COMPONENTS Note: Spencer Italia S.r.l. reserves the right to make changes to specifications without prior notice. Technical data...

  • Page 8: Installation And Start-Up

    9. INSTALLATION AND START-UP 9.1 Installation The installation of the device is a critical step to ensure a proper operation. When the product is recieved, verify that:  The packaging is intact and has no signs of impacts, falls and isn’t wet. ...

  • Page 9: Floor Installation

    Sideways movement model SLIM WARNING: The dimensions in the table above do not consider the space needed for the normal use of the stretcher support. The installation must ensure a quick and easy access to the stretcher support, in particular a free access to the command levers must be ensured. 9.3 Floor installation Once the conditions of previous paragraphs are verified, is possible to start the operations needed for the installation on the ambulance floor.
  • Page 10 Non movable stretcher support Unscrew the pads for slide adjustment if present Unscrew the fixation screws of the rear bumper (slide/roller side), using a nose plier Remove the front bumper in the same way as the rear one. If your device is equipped with optional accessories such electric pack and/or medical gas delivery system, do not move too far the bumper from the stretcher support to avoid damaging of wirings...
  • Page 11 EXTRACTABLE STRETCHER SUPPORT For this type of stretcher support, it is not necessary to remove front and rear bumpers to fix the stretcher support inside the vehicle. Simply place the stretcher support in the desired position considering bulk dimensions described above. The following picture shows the drilling quotes needed to check the installation surface.
  • Page 12 STRETCHER SUPPORT SLIM 340 mm 95 mm 95 mm 785 mm Once the stretcher support is placed in the desired position, move it sideways completely, until the fixation plates become visible. Mark the position of the 4 visible holes , then move the stretcher support sideways in the opposite direction marking the position of the remaining 4 holes making sure that the stretcher support has remained in the desired...
  • Page 13 TO LED LIGHT LED LIGHT SWITCH TO ELECTRIC S-MAX 9.5 Electrical installation The device is not electrically operated. If it comes with electric pack (optional), its power connection is a connector placed behind the front bumper of the stretcher support which shall be connected according to the procedures described in the previous paragraph.

  • Page 14: Sideways Movement

    If present, always turn off the courtesy light when the device is not used to avoid vehicle’s battery running out. 10.4 Housing for immobilization devices BOB has a dedicated compartment (single or double) in which is possible to store immobilization devices like spinal boards or pick-up stretchers.

  • Page 15: Cleaning And Maintenance

    Please note that you must do the cleaning as described in this manual and verify functionality before and after each use. Spencer Italia S.r.l. declines any responsibility for the improper functioning or damages caused to the patient or user by the use of devices not subject to routine maintenance and will void the warranty.

  • Page 16: Troubleshooting

    It therefore requires to carefully read the instructions to avoid compromising the device with inappropriate use. It requires you to specify the kind of fault to give way to the technical Spencer Italy S.r.l to judge whether the fault falls...
  • Page 17 BO10102 RAMP 350MM FOR SHAPED BOB BO10104 RAMP 500MM PER SHAPED BOB BO10108 RAMP 500MM PER SIMMETRIC BOB BO10109 RAMP 350 MM PER SIMMETRIC BOB BO10110 RAMP 350MM FOR BOB SLIM 14. SPARE PARTS Item Code Description Intended user for replacement...
  • Page 18 SN/ Matricola Quantity/Quantità Spencer Italia s.r.l. declares under is sole responsibility that the above mentioned device is in compliance with:  All relevant provisions of the Directive 2006/42/CEE of the European Parliament and of the Council of 17 May 2006...
  • Page 20 - e-mail: | service: Ph./Tel. +39.0521.541111 Quality System EN ISO 9001 – EN ISO 13485...

This manual is also suitable for:

Bob 10te
