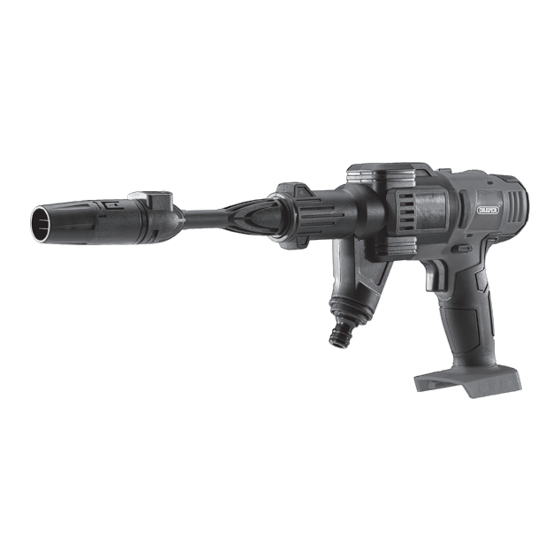

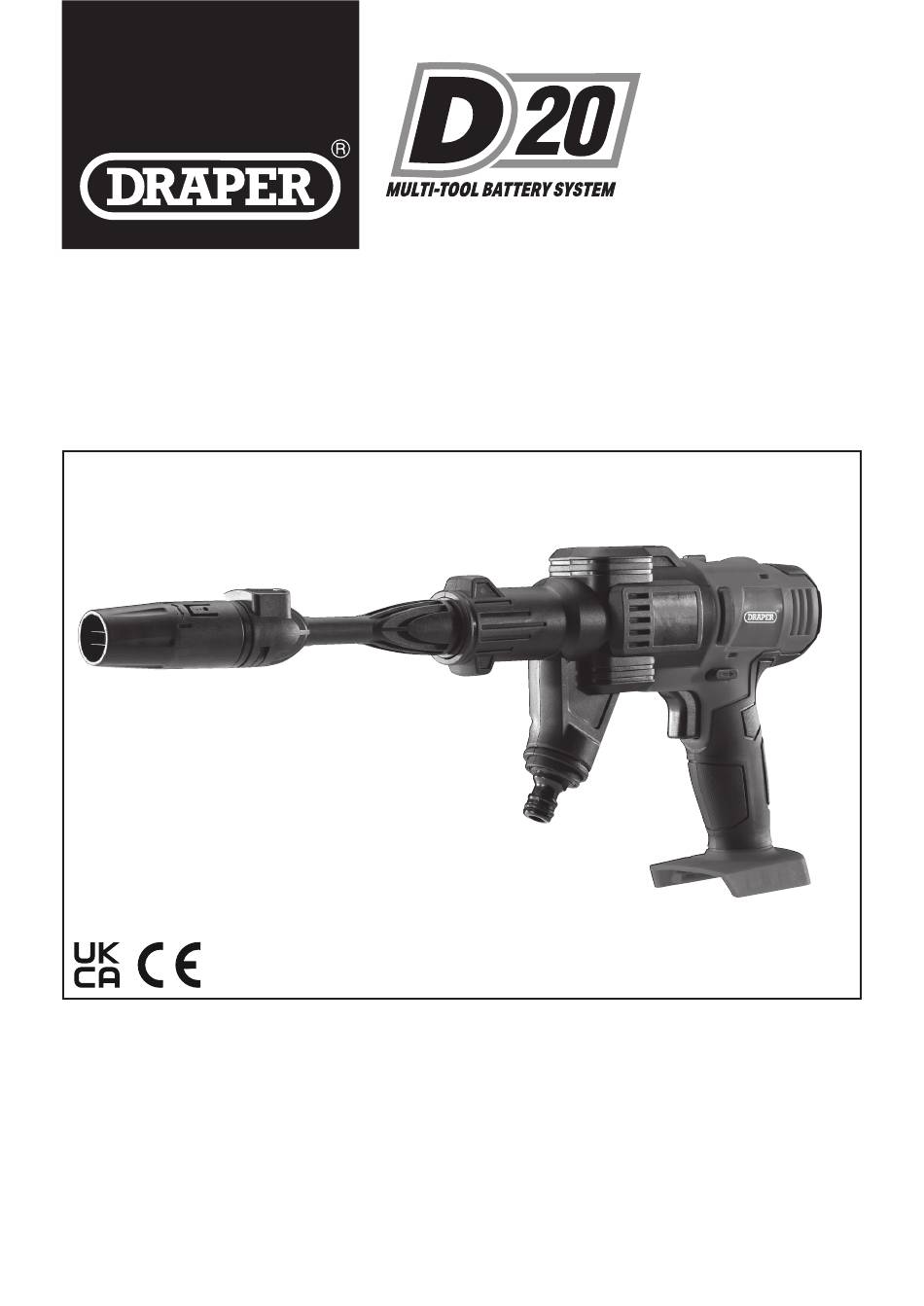

- Page 1 ORIGINAL LANGUAGE PRESSURE WASHER 97533 (EU 91912) NETTOYEUR HAUTE 20V HOCHDRUCK- PRESSION 20V REINIGER 97533 (EU 91912) 97533 (EU 91912) 20V HOGEDRUKREINI- LIMPIADORA DE ALTA PRESIÓN 20V 97533 (EU 91912) 97533 (EU 91912) LAVADORA DE ...
-
Page 2: Specification
SPECIFICATION Long hair must be tied back. 2.1 SPECIFICATION Do not abandon into the environment. Stock No............... 97533 Part No..........D20PW16BARKIT Rated voltage .............20V Keep out of the reach of children. Working pressure ..........0-16 Bar Max. flow rate ...........120L/hour Warning! Type of protection ............. -
Page 3: Health And Safety Information
d) Do not abuse the cord. Never use the cord Type ............Li-Ion for carrying, pulling or unplugging the Rated Voltage ..........20V power tool. Keep cord away from heat, oil, Rating ............2.0Ah sharp edges or moving parts. Damaged or Chargers: entangled cords increase the risk of electric shock. -
Page 4: Specific Safety Instructions For Pressure Washer Use
Service mains socket outlet that is not switched. a) Have your power tool serviced by a – Use the correct Draper charger in conjunction with qualified repair person using only identical it’s corresponding battery pack (consult the Draper replacements parts. This will ensure that the website for more information or to find your local safety of the power tool is maintained. -
Page 5: Connection To The Power Supply (Charger)
Keep extension leads away from moving hazardous parts to avoid damages to the cable which can lead to – Only use Draper D20 battery packs with this product. contact with live parts. Position cable safely to avoid Consult your Draper stockist for details. - Page 6 IDENTIFICATION – FIG.A (1) Lock and release button. (2) Lock off switch. (12) (3) On/off trigger. (4) Soft grip. (10) (5) Float. (11) (14) (6) Detergent bottle. (7) Connector. (8) 6M Suction pipe. (9) Filter. (10) Extension lance. (11) Short watering lance. (12) Variable spray pattern.
-
Page 7: Preparing The Pressure Washer
PREPARING THE PRESSURE WASHER 6.1 ASSEMBLY – FIGS. 1 - 5 Note: The power nozzle has two working modes: short lance and extension lance. 1. Attaching lance (10) or (11) to the power nozzle. FIG. Note: After the suction pipe (8) is attached, check the connection by gently pulling upon the hose. - Page 8 7.4 BATTERY PACK CHARGING – FIGS. 9 – 10 Important! Draper designated battery packs and chargers must only be used with this product. Use of any other third-party battery packs/chargers is considered misuse and will invalidate the warranty. Once connected to the mains supply, recharging of the battery can be left generally unsupervised.
- Page 9 (13) (13.1) (13.2) FIG. Caution: Only use the plug to disconnect from the power supply, never use the cable. Caution: If the battery charger has been in continuous 0 – 10% 0 – 25% 25 – 50% use it will be hot. Once charging is completed, leave the charger to cool.
-
Page 10: Troubleshooting Guide
MAINTENANCE AND TROUBLESHOOTING 8.1 TROUBLESHOOTING GUIDE Problems Possible cause Required action Washer does not operate. – Battery pack no charge. – Re-charge battery pack. – Battery pack faulty or damaged. – Replace battery pack. Motor runs, but slowly/ losing –... -
Page 11: Warranty
WARRANTY 9.1 WARRANTY Draper power tools have been carefully tested & inspected and are guaranteed to be free from defective materials or workmanship. For details of warranty and terms and conditions please visit the Draper Tools website at www.drapertools.com/warranty 10.
