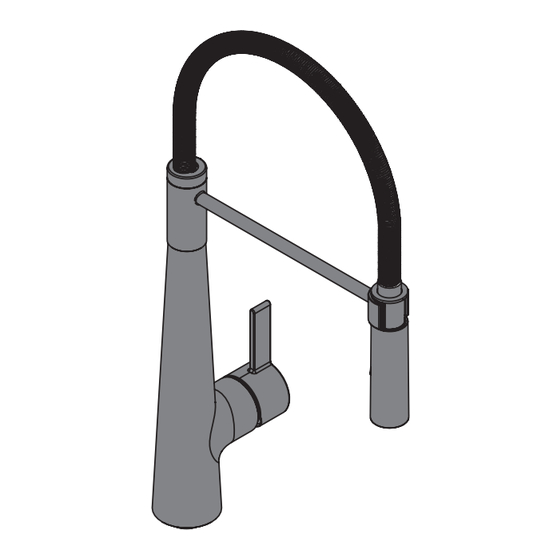

Bristan SA PROSNK C (D2) Installation Instructions & User Manual

Specifications
Cold Water Supply
Dynamic Water Pressure
Min: 1.5 bar Max: 5.0 bar
3.0
2.0 3.0
2.0
4.0
1.0 1.0 4.0
0.2 5.0 0.2 5.0
Pressure
Pressure
BAR
BAR
Min: 5°C Max: 25°C
Maximum Static Pressure: 10.0 bar
Flexible Connecting Pipes
Curved
Slight 90 ° Kinks Twists
round
bend angle
Prior to Installation
All products manufactured and supplied by Bristan are safe
to use provided that they are installed, operated and receive
regular maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and
meet the requirements of the Water Supply (Water Fittings)
Regulations 1999 and current by-laws. For full Installation
Requirements & Notes (IRN) please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies
to ensure ease of future maintenance.
Before installing this product the water supply must be
thoroughly flushed in order to remove any swarf, solder etc.
Full access must be made available for future maintenance/
servicing purposes.
This product must not be modified in any way
as this will invalidate the guarantee.
If in doubt, contact a registered plumber, your Local Water
Authority or the Secretary of the Institute of Plumbing,
address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791

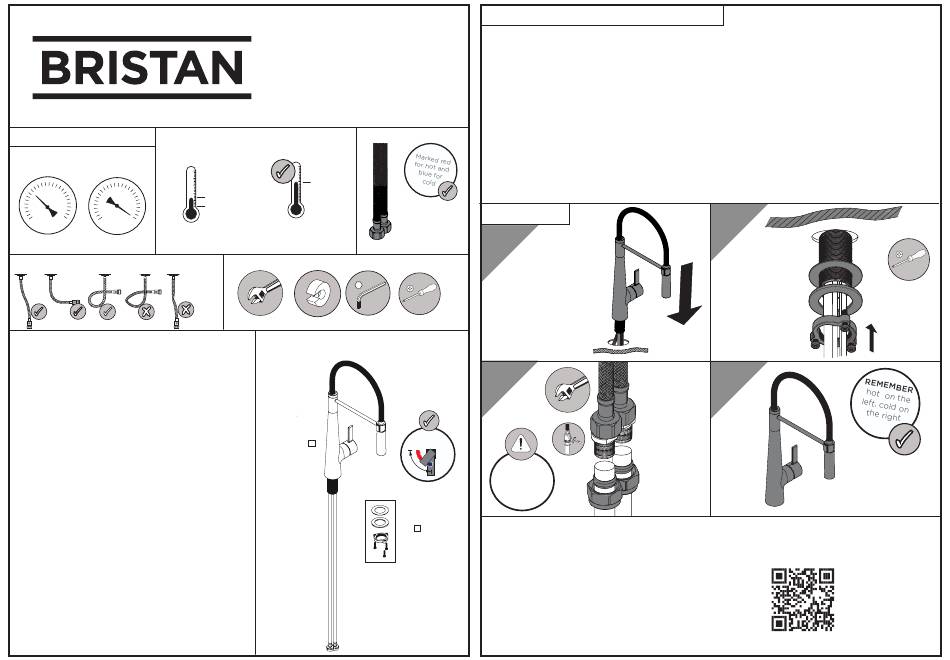

Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: SA PROSNK C (D2)
Inlet Water Temperature Inlet Connections
Hot Water Supply
60°C
25°C
5°C
60°C
Recommended
Tools You'll Need
Adjustable Spanner Pipe Cutter Hexagonal Key
Pack Contents
x1
Warning from Your Water Supplier
It could be a criminal offence to use this tap with a mains water supply drawn directly from the supply pipe (the supply
pipe is the one that brings the water supply into your home and is directly connected to the public water main).
This tap has an outlet on a flexible hose, which if immersed in water, could result in contaminated water being back drawn
into the pipework if the supply pressure dropped. To prevent contamination of drinking water in the premises and in the
water main, and to comply with the legal requirement of the UK plumbing regulations and byelaws, both hot and cold
water supplies to this tap must come from a storage cistern.
If the distributing pipes feeding this tap from the storage cistern have other outlets connected to them, the outlet of this
tap must be lower than any of those other outlets.
If installed as a tap which is used for drawing water for drinking, and the quality of the water from the storage cistern does
not meet the standards for drinking water, a separate tap supplied with wholesome water must be provided for drinking
purposes.
For further information, contact the Water Regulations Department of your Local Water Supplier (see WRAS website:
wras.co.uk) or contact the Water Regulations Advisory Scheme by email (info@wras.co.uk) or telephone: 0333 207 9030
Installation
G1/2"
Flexible
Tails
1
Feed the pipes through
the sink hole and place
the tap body.
Crosshead Screwdriver
3
Features
Eco Start
IMPORTANT
fit isolation
valves for
future
maintenance
x1
and search for your product.
2
Feed all pipes through
the nut and
washers, screw onto
the threaded pipe
and tighten screws to
secure
4
Connect the
hot and cold
water
connections.
Olive
Compression
Nut
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
Switch on the water
supply and check
connections for any
leaks.
