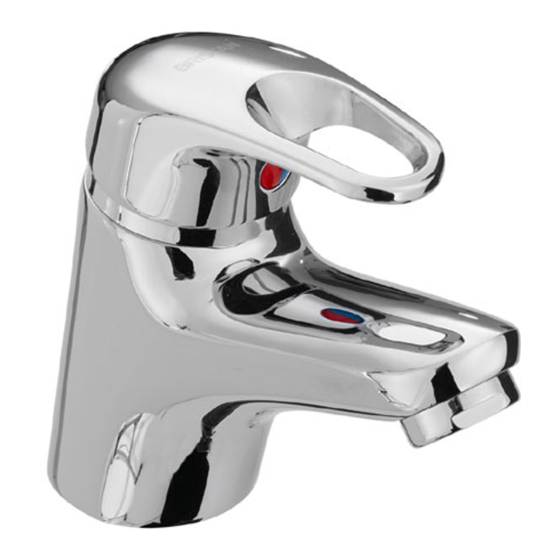

- Page 1 Cadet Tap Range Installation Instructions & User Guide Installation Instructions & User Gide IMPORTANT: Please keep these instructions for future reference and request of replacement parts...
-
Page 2: Important Safety Information
Important Safety Information • Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed correctly, used correctly and receive regular maintenance in accordance with these instructions. -
Page 3: General Specifications
General Specifications Operating pressure range (bar) CAD ½ C CAD ¾ C CAD BAS C CAD BF C CAD BSM C Maximum static pressure – 10.0 bar NOTE:- Nominally equal (balanced) inlet supply pressures are recommended for optimum performance of mixer taps. Designed to comply with BS EN 200 for single taps / combination taps for water systems of type 1 and 2 general technical specifications;... -
Page 4: Installation
Installation Basin & Bath Taps Identify all components are present prior to staring the installation. 1. Slide the plinth onto the threaded tail and fit the tap body to the basin / bath. 2. Slide the washer onto the threaded tail and secure the tap to the basin / bath by tightening the backnut. - Page 5 Installation cont. Basin Mixer Identify all components are present prior to staring the installation. 1. Screw the flexi tails into the bottom of the mixer body by hand only (DO NOT OVERTIGHTEN). 2. Place the plinth over the hole in the basin and feed the flexi tails through the hole, ensuring the washer is fitted Flexi Tails...
-
Page 6: Installation Cont
Installation cont Bath Filler and Bath Shower Mixer Identify all components are present prior to staring the installation. 1. Fit the mixer body to the bath ensuring that the foam gasket is fitted between the mixer body and the bath. 2. -
Page 7: Maintenance
Wash off the solution with clean water. Cleaning the Showerhead: CAD BSM C Your Bristan showerhead has rub-clean nozzles for easy cleaning. Simply rub your fingers across the rubber spray jets regularly and before you turn the shower on to remove any scale or... - Page 8 Be sure to check and clean out the seating within the mixer body. If necessary replace the valve. 4. Please visit www.bristan.com and search for your product code in order to find spare parts for this product. 5. Place the valve back into the tap body and tighten the valve fully using a suitable spanner.
- Page 9 If necessary replace Cartridge the cartridge 4. Please visit www.bristan.com and search for your product code in order to find spare parts for this product. 5. Replace the cartridge into the body and tighten the retaining nut to secure in place.
-
Page 10: Troubleshooting
Troubleshooting Symptom Cause Remedy No flow or poor flow Partially closed stop or Open stop or service valve. rate. service valve in water supply pipework to the tap. Head of water is below the Refer to the Specification minimum distance required. section for minimum pressures required. -
Page 11: Bristan Guarantee
Bristan Guarantee At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind. To start your free guarantee, simply scan the QR code and Register your product. - Page 12 CAD 1/2 C CAD 3/4 C CAD BAS C CAD BF C CAD BSM C Helpline 0330 026 6273 Bristan Group Limited Birch Coppice Business Park, Dordon, Tamworth, Staffordshire B78 A Masco Company Website: www.bristan.com Telephone: 0330 026 6273 Email: enquire@bristan.com...
