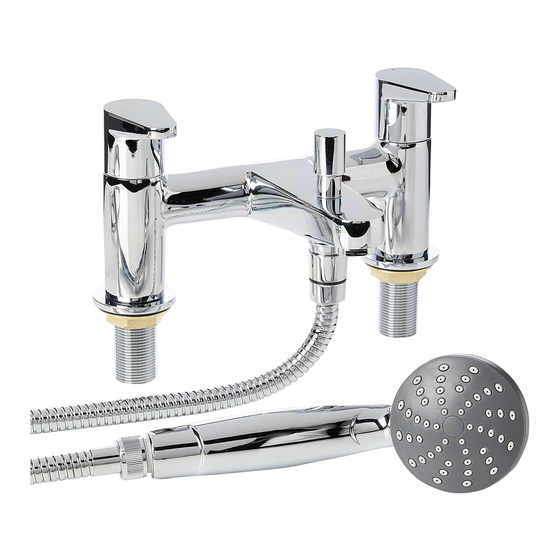

Bristan QST BSM C (D5) Installation Instructions & User Manual

Specifications
Inlet Water Temperature
65°C
Maximum Static Pressure: 10.0 bar
65°C Recommended
Tools You'll Need
Pipe Cutter Adjustable Spanner Philips Screwdriver
Prior to Installation
All products manufactured and supplied by Bristan are safe to use
provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the
requirements of the Water Supply (Water Fittings) Regulations 1999
and current by-laws. For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure
ease of future maintenance.
Before installing this product the water supply must be
thoroughly flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will
invalidate the guarantee.
Full access must be made available for future
maintenance/servicing purposes.
If in doubt, contact a registered plumber or your Local Water
Authority or the Secretary of the Institute of Plumbing,
address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: QST BSM C (D5)
Inlet Connections
Dynamic Water Pressure
Min: 0.3 bar Max: 5.0 bar
2.0 3.0 2.0 3.0
4.0 4.0
1.0 1.0
0. 5.0 0. 5.0
Pressure Pressure
BAR BAR
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.
Pack Contents
x1
x1
x1
x2

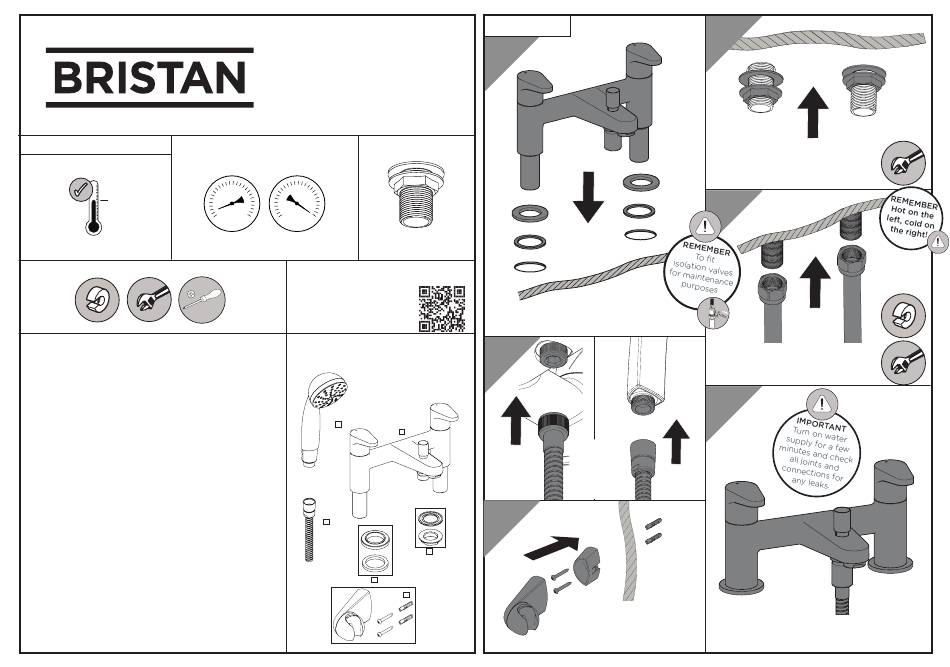

Installation
1
3/4" BSP
Fit the taps to the bath, ensuring
the plinth is in place.
4
to the bath
5
x2
x1
2
Secure the taps to the bath by
using the washer and metal
backnut below the basin.
3
Connect the hot and cold water
supplies to the threaded tails.
6
Connect
the hose
and
handset
filler.
Screw the wall bracket
to the desired position,
ensuring the hose
and handset can reach.
Turn on the water supply.
