Bristan ZI SHXSMCTFF C (D9) Installation Instructions & User Manual

Specifications
Cold Water Supply
Working Pressures
Min: 0.2 bar Max: 5.0 bar
3.0 3.0
2.0 2.0
1.0 4.0
1.0 4.0
Min: 5°C Max: 25°C
0.2 5.0 0.2 5.0
Pressure Pressure
Factory
BAR
BAR
pre-set 38°C
Maximum Static Pressure: 10.0 bar
Tools You'll Need
Pencil Flat head Screwdriver Drill Cross head Screwdriver
Prior to Installation
All products manufactured and supplied by Bristan are safe to use
provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the
requirements of the Water Supply (Water Fittings) Regulations 1999
and current by-laws. For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure ease
of future maintenance. Before installing this product the water supply
must be thoroughly flushed in order to remove any swarf, solder etc.
Full access must be made available for future maintenance/
servicing purposes.
Before drilling into walls, check that there are no hidden electrical
wires, cables or water supply pipes. This can be checked with the
aid of an electronic detector.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
This product must not be modified in any way
as this will invalidate the guarantee.
If in doubt, contact a registered plumber, your Local Water
Authority or the Secretary of the Institute of Plumbing,
address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: ZI SHXSMCTFF C (D9)
Inlet Water Temperature
Inlet Dimensions
Hot Water Supply
65°C
25°C
60°C
5°C
60-65°C Recommended
IMPORTANT TMV Type 2 Designation
The inlet hot water must
be at least 10°C above the
required blend temperature.
Spanner Pipe Cutter Hexagonal Keys
Pack Contents
x1
x1
x1
x2
x2
x2
x1

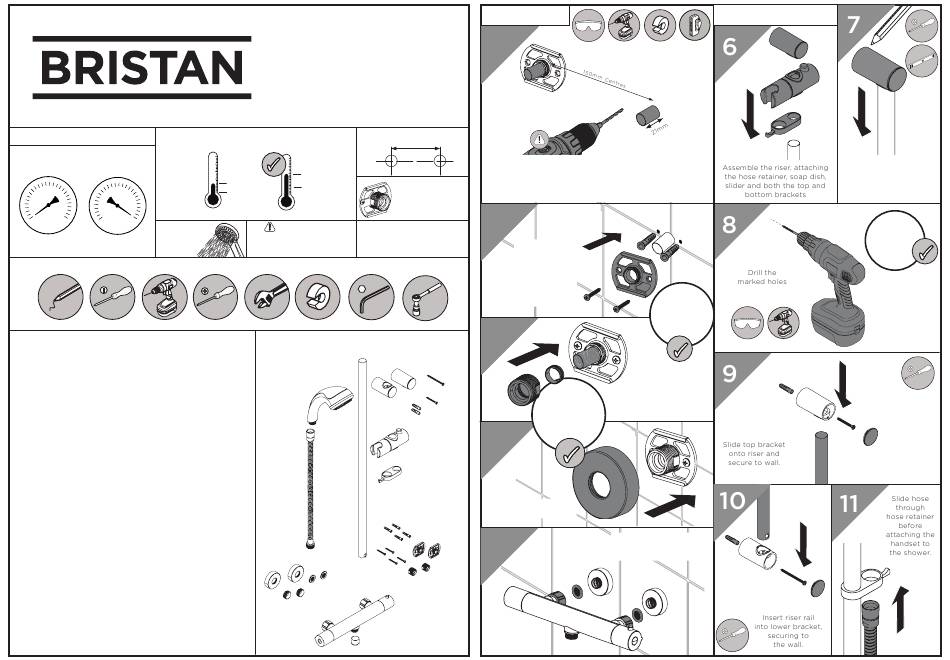

Installation
1
150mm
Centres
Identify the required position of the valve and
prepare the water supply pipes. Supply pipes should be
Inlet Connections
150mm apart. Using the backplate supplied with
the wallmount, mark and drill holes.
1/2" BSP
(male)
2
HP-S & LP-SE Secure the
rubber backplate
and backplate
into place.
Secure the
screws into
the wall.
3
Socket Spanner
x2
x1
INFORMATION
x1
Pipework must
x2
not protrude
past the olive by
4
more than 5mm
x1
x1
Screw shrouds to
the wall bridges.
x4
5
x2
x4
x2
x1
Riser Installation
REMEMBER
Hot on the
left, cold on
the right.
Secure the wall bridges
onto the backplate
ensuring the olive is
positioned over the
pipework correctly.
Insert the filter washers
and secure the shower
to the wall mount.
Use the assembled
riser to mark the desired
position for the riser
on the wall.
REMEMBER
To service
your
product!
