Mode LEDs

You generally use the nShield Edge in Operational (O) mode, but you must put it into Initialization (I)
mode when creating the Security World.

Changing the mode

To change the mode:
1. Use the Mode button to highlight the required mode.
2. Within a few seconds, press and hold the Clear button for a couple of seconds.
If the mode changes, the new mode's LED stops flashing and remains lit. The Status LED might
flash irregularly for a few seconds and then flashes regularly when the nShield Edge is ready.
Otherwise, the nShield Edge remains in the current mode, with the appropriate mode LED lit.

Status LED

If the Status LED flashes irregularly and the nShield Edge is unresponsive for more than a few minutes,
see Troubleshooting.
N-018201-X

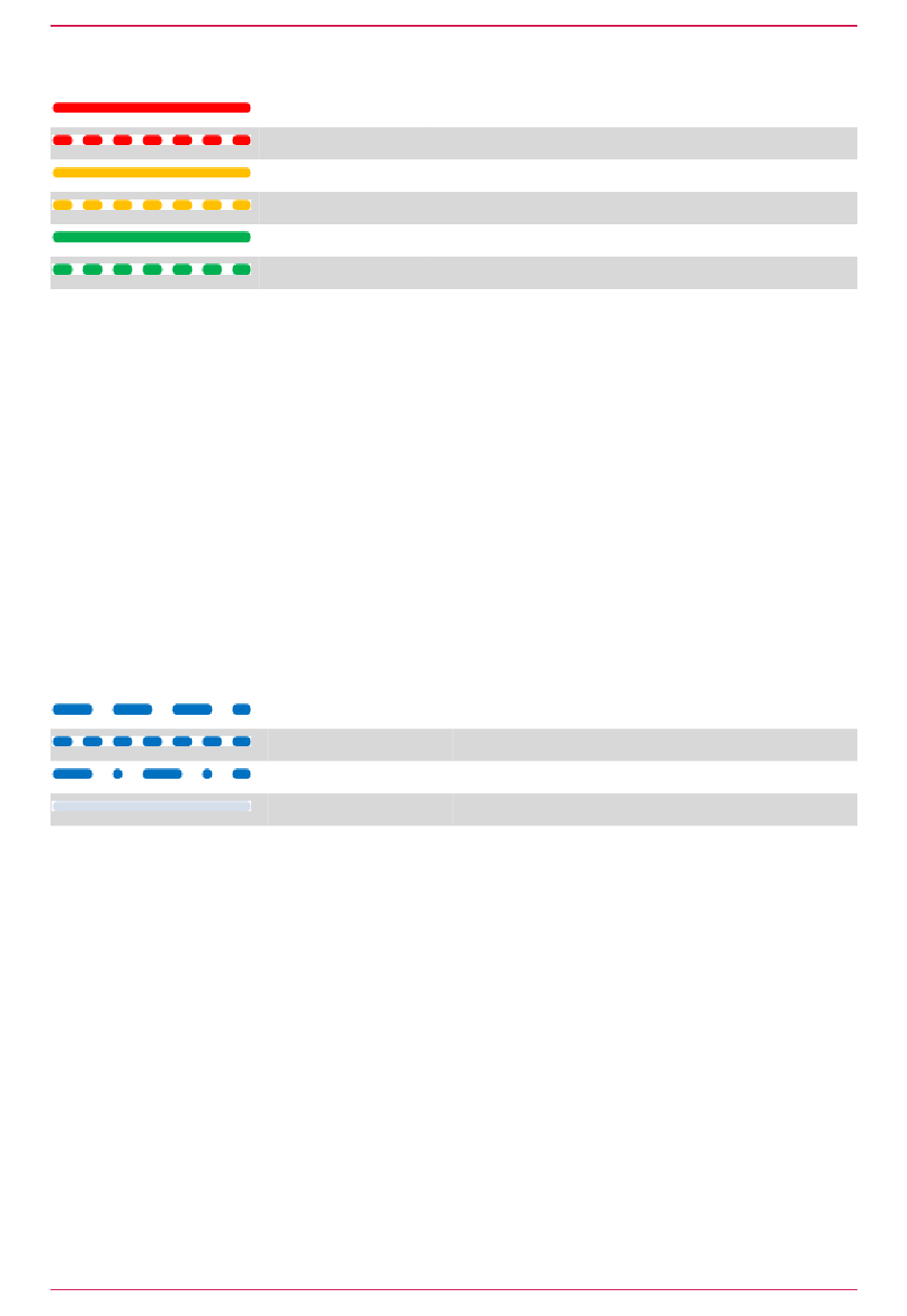

Red In Maintenance mode
Red flashing Maintenance mode selected
Amber In Initialization mode
Amber flashing Initialization mode selected
Green In Operational mode
Green flashing Operational mode selected
Long blue flash
Short blue flash
Irregular flash
Off
nShield® Edge-Installation Guide
Chapter 7: Using the nShield Edge
In Operational mode
In Maintenance or Initialization mode
Changing mode or processing data
No power
