Chapter 7: Using the nShield Edge

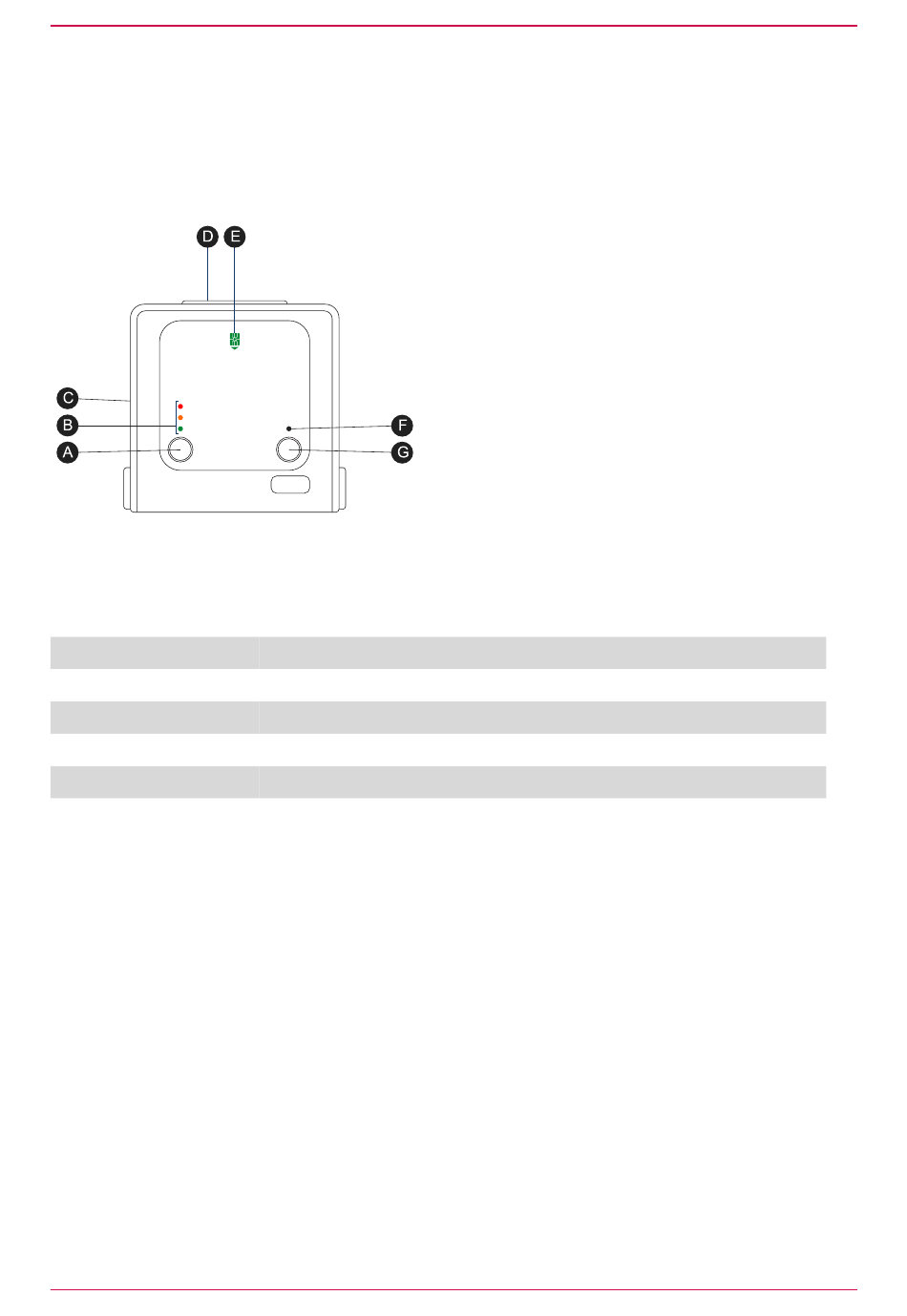

Figure 4. The nShield Edge controls, card slot, and LEDs
Key:
A: Mode button
B: Mode LEDs
C: B type USB port
D: Card slot
E: Card slot LED
F: Status LED
G: Clear button
N-018201-X
Selects a mode—the mode changes only when you press the Clear
button.
Shows the current mode or selected mode.
For connecting the nShield Edge to the computer.
For inserting the required smart card.
Lights green when a smart card is inserted.
Shows the status of the nShield Edge.
Clears the memory of the nShield Edge and changes the selected
mode. When using this button, press and hold it for a couple of
seconds.
