INSTALL CUTTING ATTACHMENT SHIELD
Use the following instructions if the cutting attachment shield
on your unit is not installed. Use only the instructions that apply
to the type of shaft and shield that your unit is equipped with.
WARNING:
To prevent serious personal injury,
never operate the trimmer without the cutting
attachment shield in place.
CC4105

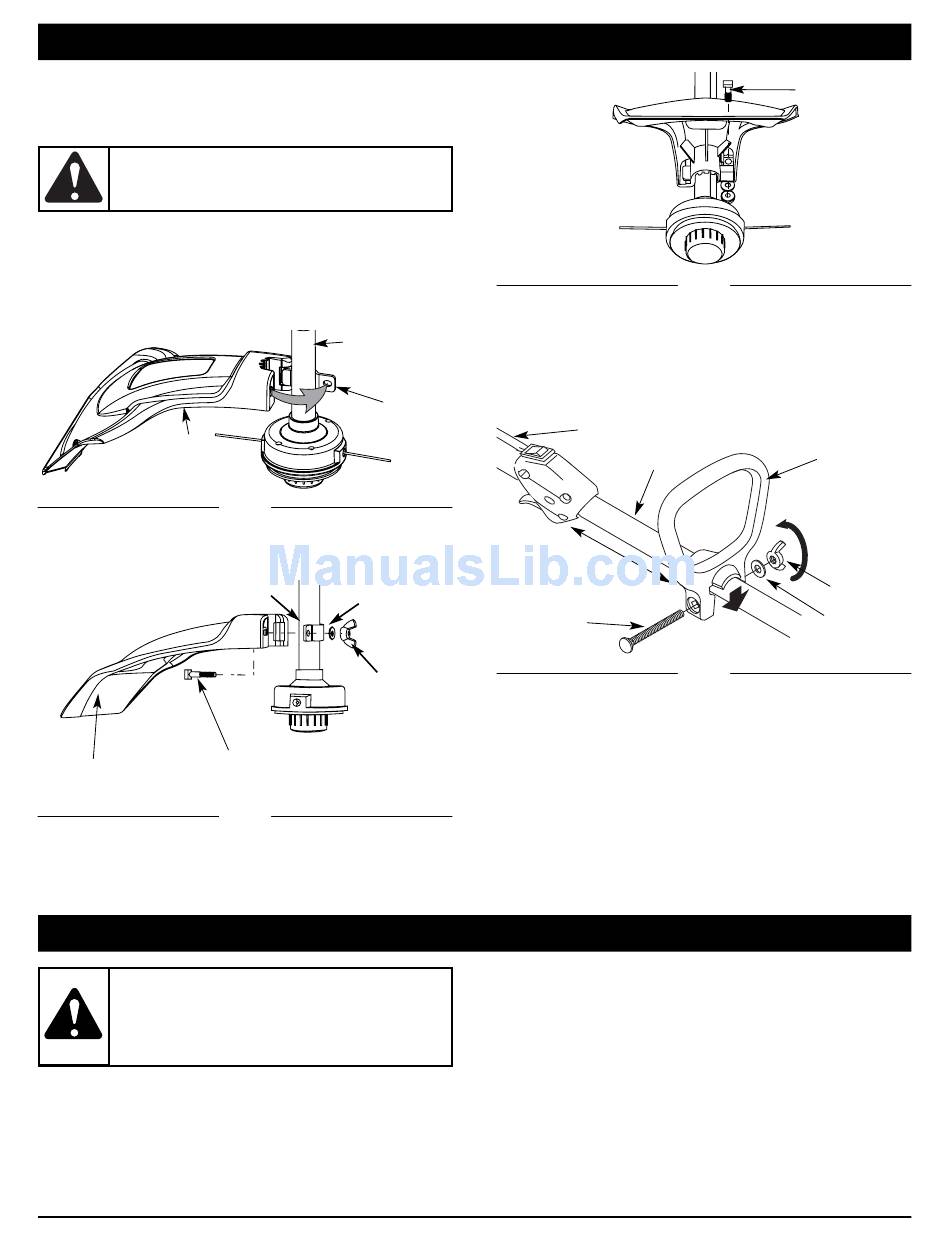

1. Place the cutting attachment shield onto the shaft housing.
Be sure the guard mounting bracket slides into the slot on the
edge of the cutting shield. Rotate the shield into place,
counterclockwise. The holes in the guard mounting bracket
and cutting attachment shield will line up (Fig. 1).
Cutting
Attachment
Shield
2. From inside the cutting attachment shield, push the square bolt
through the hole until the threaded end protrudes through the
guard mounting bracket (Fig. 2).
Guard Mounting Bracket
Square
Cutting Attachment
Shield
3. Put the washer on the bolt, then screw the wing nut onto
the bolt and tighten. Figure 3 shows the installation
process from underneath the unit.
WARNING:
OVERFILLING OIL CRANKCASE
MAY CAUSE SERIOUS PERSONAL INJURY. Check
and maintain the proper oil level in the crank case; it
is important and cannot be overemphasized. Check
the oil before each use and change it as needed.
See Changing the Oil.
RECOMMENDED OIL TYPE
Using the proper type and weight of oil in the crankcase is
extremely important. Check the oil before each use and
change the oil regularly. Failure to use the correct oil, or using
dirty oil, can cause premature engine wear and failure.
Use a high-quality SAE 30 weight oil of API (American
Petroleum Institute) service class SF, SG, SH.
4

ASSEMBLY INSTRUCTIONS

Shaft Housing
Guard
Mounting
Bracket
Fig. 1
Washer
Wing Nut
Blot
Fig. 2

OIL AND FUEL INFORMATION

INSTALL AND ADJUST THE D-HANDLE
On some units, the D-handle may be pre-installed, requiring
only loosening screws and some adjustment. If this is the case,
go to step 4.
1. Push the D-handle down onto the shaft housing (Fig. 4).
The squared bolt hole in the handle is to the right.
Shaft Grip
Shaft Housing
Minimum 6 inches
(15.24 cm)
Bolt
2. Insert the shoulder bolt into the squared hole in the handle
and push through. On the left side of the handle, place the
washer on the bolt, then screw the wing nut onto the bolt.
Do not tighten until you make the handle adjustment.
3. Rotate the D-handle to place the grip above the top of the
shaft housing. Place it a minimum of 6 inches (15.24 cm)
from the end of the shaft grip.
4. While holding the unit in the operating position (Fig. 13),
position the D-handle to the location that provides you the
best grip.
5. Tighten the wing nut until the D-handle is secure.
ADDING OIL TO CRANKCASE: INITIAL USE
NOTE: This unit is shipped without oil. In order to avoid
damage to the unit, put oil in the crankcase before you
attempt to start the unit.
Your unit is supplied with one 3.04 fluid oz. (90 ml.)
bottle of SAE 30 SF, SG, SH oil (Fig. 5).
NOTE: Save the bottle of oil. It can be used to measure the
correct amount during future oil changes. See
Changing the Oil.
1. Unscrew the top of the bottle of oil and remove the paper
seal covering the opening. Replace the top. Next, cut the
tip off the funnel spout (Fig. 5).
Bolt
Fig. 3
D-Handle
Tighten
Wing Nut
Washer
Fig. 4
