Package Contents - CHAINTECH 9BIF3 Manual

Chapter 1
r r r r r Embedded USB Controller
- Support up to 6 USB ports (EHCI/UHCI v1.1 compliant)
- Optional USB riser with additional 2 USB ports
@
The official USB 2.0 driver for Windows XP is available on-line at Windows
Update website at http://windowsupdate.microsoft.com/
r r r r r
Ethernet 10/100 Controller
-
On board LAN VIA VT6105LOM support 10/100Mbps Ethernet operation
r r r r r Double Stack Back-Panel I/O Connectors
- PS/2 Mini-DIN keyboard and mouse port
- Two USB port and One RJ45 connector
- One 9-pin D-Sub male Serial port
- One 15-pin D-Sub femaleVGA port
- One 25-pin D-Sub female Printer port
- Audio Line-in/out and Mic-in jacks
- One 15-pin D-Sub female Game/MIDI port
r r r r r
On board video Sub-system
-
Integrated 2D/3D graphics accelerator
- Full frame DVD audio and video playback
- Shared system memory use Intel D.V.M. technology
r r r r r
Audio Subsystem via AC-link
- AC"97 V2.1 compliant CODEC with integrated SRC

1-2 Package Contents

This product comes with the following components:
r r r r r One mainboard
r r r r r One 40-pin (80-conductor) UDMA-100 IDE connector ribbon cable (Figure 1-1)
* Color coded cable: Blue to mainboard, Gray to Master and Black to slave
r r r r r One 34-pin floppy disk drive ribbon cable (Figure 1-2)
r r r r r One 9-pin serial port ribbon cable (optional)
r r r r r One User's Manual
r r r r r One CD-ROM that includes
- Award DMI Utility for DOS
- Audio and VGA drivers and utilities
- Intel Chipset Software installation utility
- Optional Value Pack 2002 software pack including Norton AntiVirus, Adobe
ActiveShare, Acrobat Reader, Acrobat eBook Reader, Imagemore and AutoSave.
@
See the Readme.txt file in the CD-ROM's root directory for installation
instructions of all driver and software utilities.

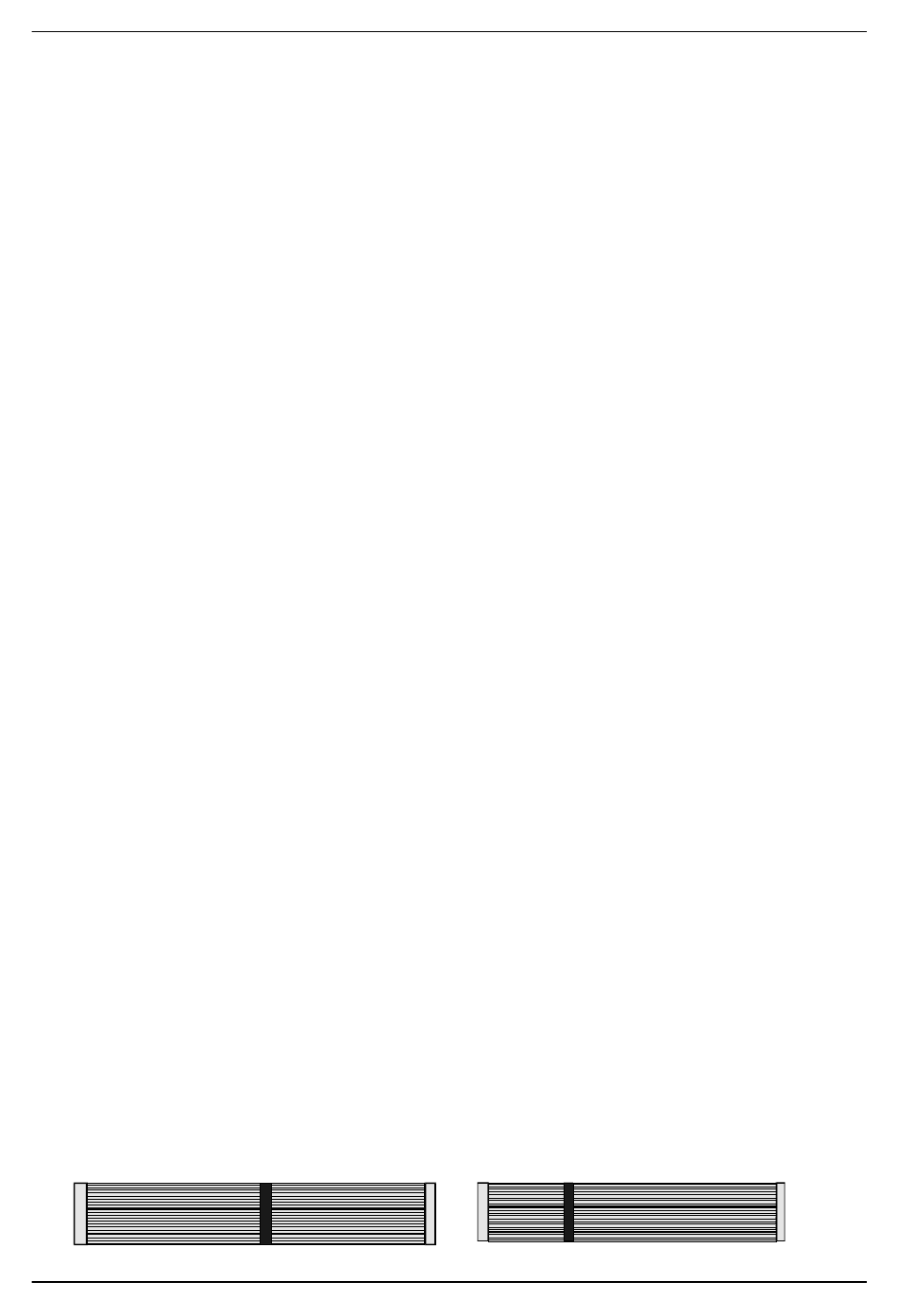

Figure 1-1
2
UDMA 100 IDE cable Figure 1-2
Standard Floppy cable
