CHAINTECH 9BIF3 Manual page 11

Chapter 2

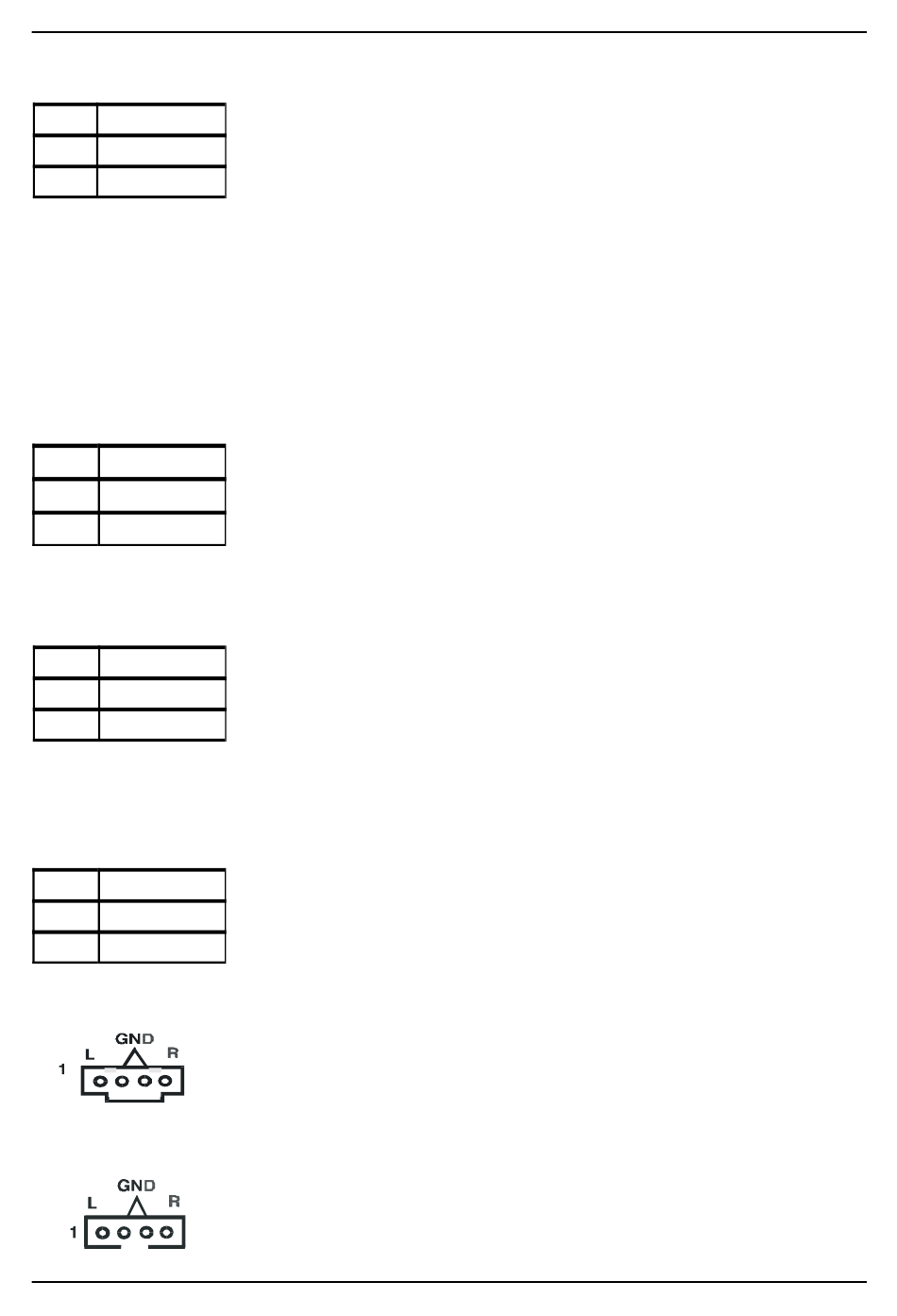

Clear CMOS Data (JP1)
Pin Definition
1~2 Normal (default)
2~3 Clear CMOS Data
Power On By Keyboard (JP5)
Pin Definition
1~2 Disable (default)
2~3 Enable
Power On By USB 0/1 and 2/3 (JP6/JP6A)
Pin Definition
1~2 Disable (default)
2~3 Enable
On board LAN (JP11)
Pin Definition
1~2 Enable
2~3 Disable (default)
CD-ROM Audio-in Connector (CN2/CN2A)
Auxiliary Audio-in Connector (CN3)
8
To clear the contents of the CMOS, please follow the steps
below.
1. Disconnect the system power supply from the power source.
2. Set the jumper cap at location 2~3 for 5 seconds, then set it back
to the default position.
3. Connect the system's power and then start the system.
4. Enter BIOS's CMOS Setup Utility and choose Load Setup
Defaults. Type Y and press enter.
5. Set the system configuration in the Standard CMOS Setup
menu.
This board is able to be turned on by the PS/2 keyboard (hot
key). To use this function, select a hot key of your choice at
the PS2KB Wakeup option under Wake Up Events in the BIOS's
Power On Management screen. You must also set this jumper's
cap to pins 2-3 to use this function.
This board is able to be turned on by a USB keyboard hot key
or a USB mouse click. To use this function, select a hot key of
your choice at the USB Kb Power Wake-Up From S3 option under
Wake Up Events in the BIOS's Power On Management screen.
You must also set both jumper's cap to pins 2-3 to use this
function.
This function allows you to enable or disable the on board
LAN. You must set the jumper cap to pins 1-2 to enable or
set pins 2-3 to disable this function.
Use the audio cable enclosed with your CD-ROM disk drive to
connect the CD-ROM to your mainboard. This will enable your
CD-ROM's audio function.
This connector is for use with a secondary CD-ROM, DVD-ROM
or CDR/CDRW disk drive.
