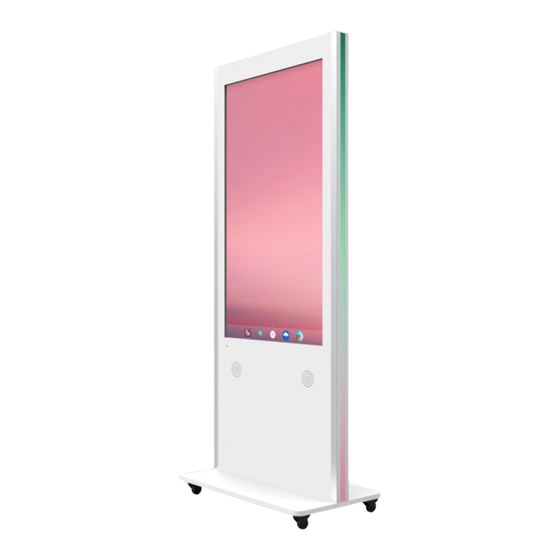

55" Edge-Lit
Floor Stand
Touch Digital
Poster
U S E R M A N U A L
SKU: DF055TLWE
FCC ID: 2ASCB- DF055TLWE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes/modifications to this equipment not approved by the party responsible for compliance could void the user's
authority to operate the equipment.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DF055TLWE
Summary of Contents for Displays2go DF055TLWE
- Page 1 U S E R M A N U A L SKU: DF055TLWE FCC ID: 2ASCB- DF055TLWE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 2 Thank you for purchasing this product from Displays2go. It’s our mission to help you connect with the world and build your brand with products that are personalized to your needs. Your product has been manufactured with great care using only the finest quality materials and expert workmanship.
-
Page 3: Table Of Contents
TA B L E O F C O N T E N TS Before Use Safety and Warnings Packing List Interface Diagram Assembly Operation Power On/Off Remote Control HDMI Connection Settings Android 1 1 Quick Start Guide LED Strip Remote Control MagicHome LED Controller DiViEX Reference... -
Page 4: Before Use
B E F O R E U S E Safety Warnings and Precautions Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2Go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. - Page 5 WARNING • Cut off the power supply before connecting or disconnecting any cables. • Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. • Do not place the Digital Signage in the positions such as: •...
- Page 6 CAUTION • Do not let children climb onto the Digital Signage. • Keep the small parts away from children to prevent them from swallowing. • If the Digital Signage won’t be used for a long time, please turn it off and pull out the power plug. •...
-
Page 7: Packing List
Cross head pad screw M6x12 Contact Displays2go if you have questions about the operation, debugging, or connection of the unit. If the unit doesn’t work normally, please cut off the power immediately and contact customer service. The unit is class-A product, which may cause radio interference in living environment. -
Page 8: Assembly
Assembly NOTE: Two people required for safe assembly of product. Always pull out the power plug before installing or disassembling the unit! U N PAC K I N G Open the top cover. Remove base from package and Have 2 people carefully remove unit from the package. carefully set aside. -
Page 9: Operation
O P E R AT I O N Power On/Off • Power on by inserting the power cord into unit and connecting to outlet. • To turn the screen on or off, press the power button on the remote control. •... -
Page 10: Settings
Settings Once turned on, the unit automatically displays the home screen, which includes the navigation bar and the App Drawer. NOTE: The Navigation bar can be minimized. To restore the Display navigation bar, go into Display settings and enable Navigation. App Drawer Background Applications Back... -
Page 11: Led Strip Remote Control 1
LED Strip Remote Control • Aim the remote control directly at the LED sensor when using the remote control. • If remote control does not initially control the LED strip, hold the ON key down for 5 seconds to pair. The lights flash slowly to indicate successful pairing. -
Page 12: Diviex
Our DiViEX Slideshow App comes pre-installed on this digital product to provide convenience for your business content management. Easily upload your videos and images to a USB and insert into the unit. Then, open the app to launch a slideshow or adjust picture settings, add filters and stickers, queue music and more! Add Media to USB 1. - Page 13 PLAYLIST SETTINGS Edit the overall playlist settings in the Settings tab. Once settings are adjusted, click PLAY or adjust further in the Edit or Music tab. Enable or disable automatic settings. A. AUTOMATIC SETTINGS Auto-Boot: Automatically launch DiViEX when unit is powered on Auto-Play: Automatically play slideshow when DiViEX opens B.
- Page 14 EDIT Tweak each photo individually in the Edit tab. A. PHOTOS Images/Video thumbnails in sequential order. Drag to rearrange. B. EDIT TOOLS Crop, Add Text, Add Filter, Add Sticker, Add Frame This white bar shows tool options for each of the Edit tools. Choose aspect ratios C.
-
Page 15: Reference
R E F E R E N C E Technical Specifications LCD Size 55” Light Source LED Backlight Resolution 1920 x 1080 (pixels) Brightness 500cd/m Contrast 1200: 1 Response 10ms PANEL Pixel Pitch 0.63 (H) mm x 0.63 (V) mm Refresh Rate 60Hz Viewing Angle... -
Page 16: Cleaning And Maintenance
Ethernet (RJ45) HDMI 3.5mm headphone INTERFACES WiFi Type-C OTG Net Weight 180.8 lbs (82kg) Gross Weight 216 lbs (98kg) Unit Dimensions 32”x 2.75”x 78” (810*70*1980mm) STRUCTURE Package Dimensions 82.5” x 9” x 39” (≈2095*230*995mm) Shell Material Aluminum Profile/Sheet Metal Shell Color White LANGUAGE English/Simplified Chinese... -
Page 17: Troubleshooting Guide
Troubleshooting Guide ISSUE PROBABLE CAUSE SOLUTION • Check that the unit is plugged into wall outlet. • Unit not plugged into wall • Confirm that the power cord is connected to outlet the terminal on the back of the unit. •... - Page 18 • Check that file has successfully transferred to USB and USB APPS NOT is functioning. • App is defective WORKING • Contact Displays2go support. • Android board is defective NOTE: Do not attempt to replace or repair circuitry yourself. Contact customer service to schedule a professional maintenance appointment.
-
Page 19: Names And Contents Of Toxic And Hazardous
Names and Contents of Toxic and Hazardous Substances or Elements in the Product The table shows that the machine contains harmful substances inside. The data is provided by material suppliers and verified by the company according to the material type. Some materials contain harmful substances that can’t be replaced in present technology. -
Page 20: Fcc Compliance Notice
FCC Compliance Notice Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
