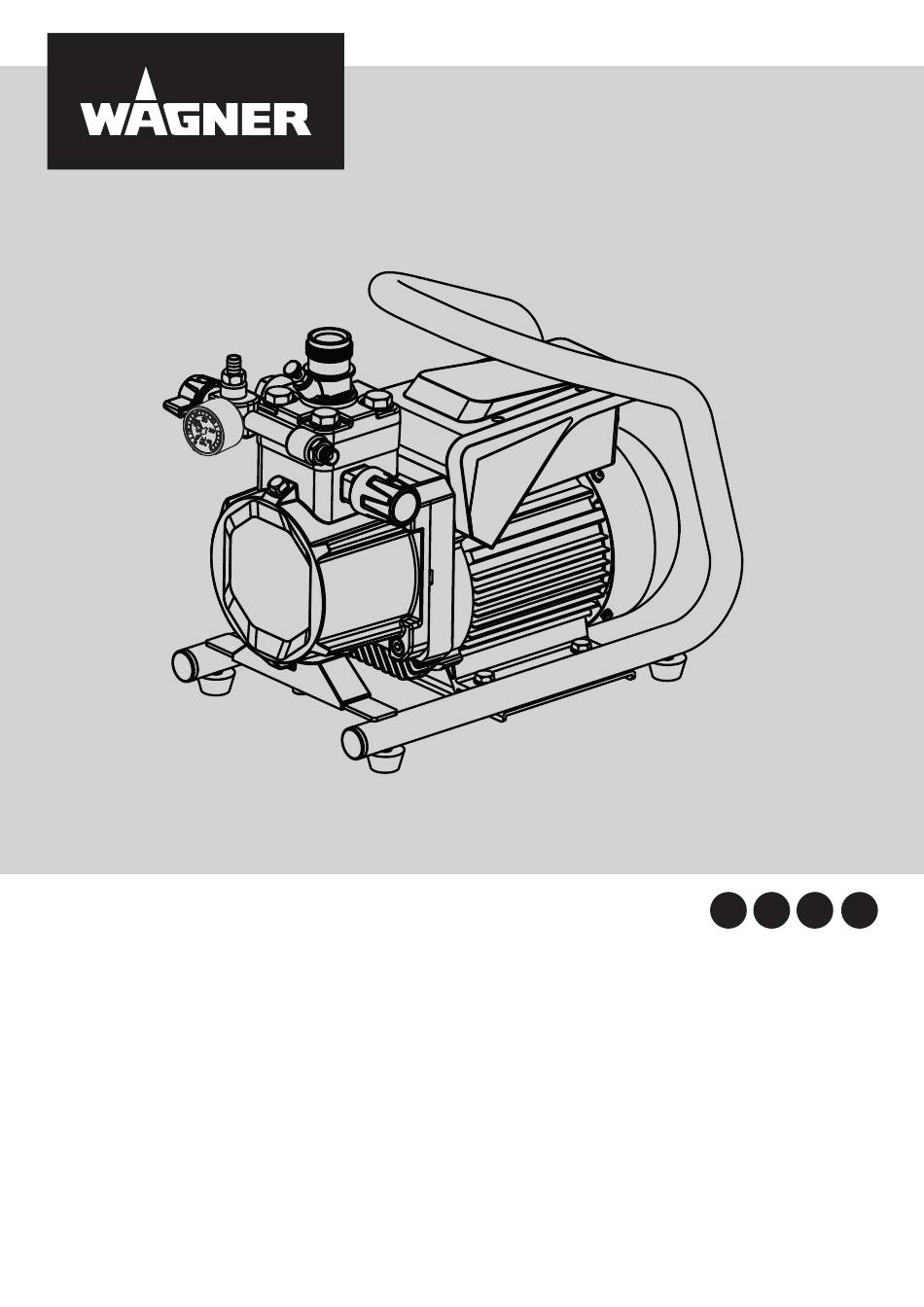

- Page 1 SUPER FINISH 21 PRO DE EN FR ES AIRLESS HIGH-PRESSURE SPRAYING UNIT ORIGINALBETRIEBSANLEITUNG - DE - Betriebsanleitung - EN - Operating manual - FR - Mode d'emploi - ES - Manual de instrucciones wagner-group.com...
-
Page 2: Table Of Contents
Super Finish 21 Pro accessories ________________ 46 2.21 Oscillation level _____________________________ 32 11.2 Spare parts list Super Finish 21 Pro _____________ 48 GENERAL VIEW OF APPLICATION / 11.3 Spare parts list high-pressure filter _____________ 50 DESCRIPTION OF UNIT _____________________ 33 11.4... - Page 3 Super Finish 21 Pro 3. Safety of Persons GENERAL SAFETY INSTRUCTIONS a) Be attentive. Pay attention to what you are doing and WARNING! Read all safety information, instructions, work sensibly with a power tool. Do not use the tool if...
-
Page 4: Safety Regulations For Airless Spraying
Super Finish 21 Pro CONTENTS e) Take proper care of your tools. Check whether the EXPLOSION PROTECTION moving parts function trouble-free and do not jam, whether parts are broken or damaged so that the tool Do not use the unit in work places which are function is impaired. -
Page 5: Breathing Equipment As Protection Against Solvent Vapors
Super Finish 21 Pro SAFETY REGULATIONS 2.11 BREATHING EQUIPMENT AS PROTECTION ELECTROSTATIC CHARGING (FORMATION OF AGAINST SOLVENT VAPORS SPARKS OR FLAMES) Wear breathing equipment during spraying work. Electrostatic charging of the unit may occur A breathing mask is to be made available to the user. -
Page 6: Cleaning The Unit
Super Finish 21 Pro SAFETY REGULATIONS/ GENERAL VIEW OF APPLICATION/ DESCRIPTION OF UNIT 2.17 CLEANING THE UNIT When cleaning the gun, only rinse when the nozzle is removed and rinse at low pressure. When cleaning the unit with solvents, the... -
Page 7: General View Of Application/ Description Of Unit
Super Finish 21 Pro GENERAL VIEW OF APPLICATION/ DESCRIPTION OF UNIT 3.2.1 GENERAL VIEW OF APPLICATION/ COATING MATERIALS WITH SHARP-EDGED ADDITIONAL MATERIALS DESCRIPTION OF UNIT These particles have a strong wear and tear effect on valves and tips, but also on the heating hose and spray gun. This im- APPLICATION pairs the durability of these wearing parts considerably. -
Page 8: Explanatory Diagram
Super Finish 21 Pro GENERAL VIEW OF APPLICATION/ DESCRIPTION OF UNIT EXPLANATORY DIAGRAM Tip guard with airless tip* Spray gun* High-pressure hose* Connection for high-pressure hose Pressure gauge* Pressure control valve ON / OFF switch Pressure relief valve Spraying Circulation... -
Page 9: Technical Data
Super Finish 21 Pro GENERAL VIEW OF APPLICATION/ DESCRIPTION OF UNIT TECHNICAL DATA 230-240 V 110 V Voltage : 230-240 V AC, 50 Hz 110-120 V AC, 50 Hz Fuses : 8 A time-lag 16 A time-lag Unit connecting line : 6 m long, 3 x 1.0 mm²... -
Page 10: Startup
Super Finish 21 Pro STARTUP STARTUP HIGH PRESSURE HOSE AND SPRAY GUN 1. Screw the high pressure hose (9) onto the hose connec- Press the inlet valve pusher before start up. tion This ensures that the valve is not blocked or 2. -
Page 11: Cleaning Preserving Agent When Starting-Up Of Operation Initially
Super Finish 21 Pro STARTUP CLEANING PRESERVING AGENT WHEN STARTING-UP OF OPERATION INITIALLY Unit with suction tube 1. Immerse the suction system into a container filled with a suitable cleaning agent (recommendation: water). Unit with hopper 2. Fill up hopper with a suitable cleaning agent (recommen- dation: water). -
Page 12: Spraying Technology
Use the lowest possible pressure setting to create the desired spray pattern in order to minimise spray mist. • To achieve perfect surfaces at varnishing works, special accessories are available at Wagner, e.g. FineFinish tips. Your Wagner dealer will advise you. 10-25cm 10-25cm... -
Page 13: Handling The High-Pressure Hose
Never pull on the high-pressure hose to move the device. Make sure that the high-pressure hose cannot twist. This can In using quick-drying or two-component be avoided by using a Wagner spray gun with a swivel joint coating materials, do not fail to rinse unit and a hose system. -
Page 14: Cleaning The Unit
Super Finish 21 Pro CLEANING THE UNIT CLEANING THE UNIT • Unit with upper hopper A clean state is the best method of ensuring operation with- out problems. After you have finished spraying, clean the unit. 1. Set pressure relief valve to (circulation). -
Page 15: Cleaning The Unit From The Outside
Super Finish 21 Pro CLEANING THE UNIT CLEANING THE UNIT FROM THE OUTSIDE HIGH-PRESSURE FILTER 1. Set pressure relief valve to (pressure relief, circulation). First unplug the power plug from the outlet. 2. Switch the unit off using the ON/OFF switch (Pos. 0). -
Page 16: Cleaning The Airless Spray Gun
Super Finish 21 Pro CLEANING THE UNIT / SERVICING CLEANING THE AIRLESS SPRAY GUN SERVICING 1. Rinse the Airless spray gun with a suitable cleaning agent under lower operating pressure. GENERAL SERVICING 2. Clean the tip thoroughly with a suitable cleaning agent so that no suitable coating material rests remain. -
Page 17: Repairs At The Unit
Super Finish 21 Pro REPAIRS AT THE UNIT REPAIRS AT THE UNIT Switch the unit off. Before all repair work: Unplug the power plug from the outlet. 10.1 INLET VALVE Disassembly 1. Place the enclosed 30 mm wrench on the housing (1). -
Page 18: Outlet Valve
Super Finish 21 Pro REPAIRS AT THE UNIT 10.2 10.3 OUTLET VALVE PRESSURE CONTROL VALVE 1. Use a 22 mm wrench to screw the outlet valve from the Only have the pressure control valve (1) re- paint section. placed by the customer service. -
Page 19: Remedy In Case Of Faults
Super Finish 21 Pro REPAIRS AT THE UNIT 10.5 REMEDY IN CASE OF FAULTS TYPE OF MALFUNCTION WHAT ELSE? POSSIBLE CAUSE MEASURES FOR ELIMINATING THE MALFUNCTION Unit does not start The device does No voltage applied Check voltage supply not start after it has... -
Page 20: Spare Parts And Accessories
Super Finish 21 Pro SPARE PARTS AND ACCESSORIES SPARE PARTS AND ACCESSORIES 11.1 SUPER FINISH 21 PRO ACCESSORIES Accessories: ITEM DESIGNATION ORDER NO. ITEM DESIGNATION ORDER NO. Spray gun Vector Pro (2-finger) 0538 041 Tip extension Spray gun Vector Pro (4-finger) 0538 040 Length 12.5 cm... - Page 21 Some paints may need to be diluted to achieve the best result possible. The experts at Wagner application technology have therefore tested a wide range of materials for you. Their recommendations can be found in the Wagner Spray Guide at sprayguide.
-
Page 22: Spare Parts List Super Finish 21 Pro
Super Finish 21 Pro SPARE PARTS AND ACCESSORIES 11.2 SPARE PARTS SF 21 PRO ITEM ORDER NO. DESIGNATION 2452215 Inlet 2443908 Inlet valve housing assy. (incl. pos. 1) 2443943 Inlet valve 2443952 Fitting 2443941 Oil level measuring set 2443942 Fitting... - Page 23 Super Finish 21 Pro SPARE PARTS AND ACCESSORIES Spare parts diagram SF 21 Pro...
-
Page 24: Spare Parts List High-Pressure Filter
Super Finish 21 Pro SPARE PARTS AND ACCESSORIES 11.3 11.4 SPARE PARTS LIST HIGH-PRESSURE FILTER SPARE PARTS LIST HOPPER ITEM ORDER NO. DESIGNATION ITEM ORDER NO. DESIGNATION 0097 121 High-pressure filter HF- 01 compl. 2444212 Hopper 3.7 l, assy. (pos. 2-6) -
Page 25: Spare Parts List Suction System
Super Finish 21 Pro SPARE PARTS AND ACCESSORIES 11.5 SPARE PARTS LIST SUCTION SYSTEM ITEM ORDER NO. DESIGNATION 2444485 Suction system assy. 2444491 Suction filter 2444493 Return hose 2444494 Clamp Spare parts diagram suction system... -
Page 26: Testing Of The Unit
The EU declaration of conformity is enclosed with the product. If required, it can be re-ordered using order number Wagner or one of our dealers will take back your used Wagner 2448573. waste electrical or electronic equipment and will dispose of it for you in an environmentally friendly way. - Page 27 Super Finish 21 Pro DECLARACIÓN DE GARANTÍA...
- Page 28 Super Finish 21 Pro...
- Page 29 Super Finish 21 Pro...
- Page 30 Tel. 01327 368410 Tel.: +49 / 75 44 / 505 -1664 enquiries@wagnerspraytech.co.uk Fax: +49 / 75 44 / 505 -1155 wagner@wagner-group.com www.wagner-group.com AUS Wagner Spraytech Australia Pty. Импортёр: Изготовитель: Ltd. ООО «ВинТех рус» Дж. Вагнер Гмбх, 8 – 10 Dansu Court 143960 МО, г.
