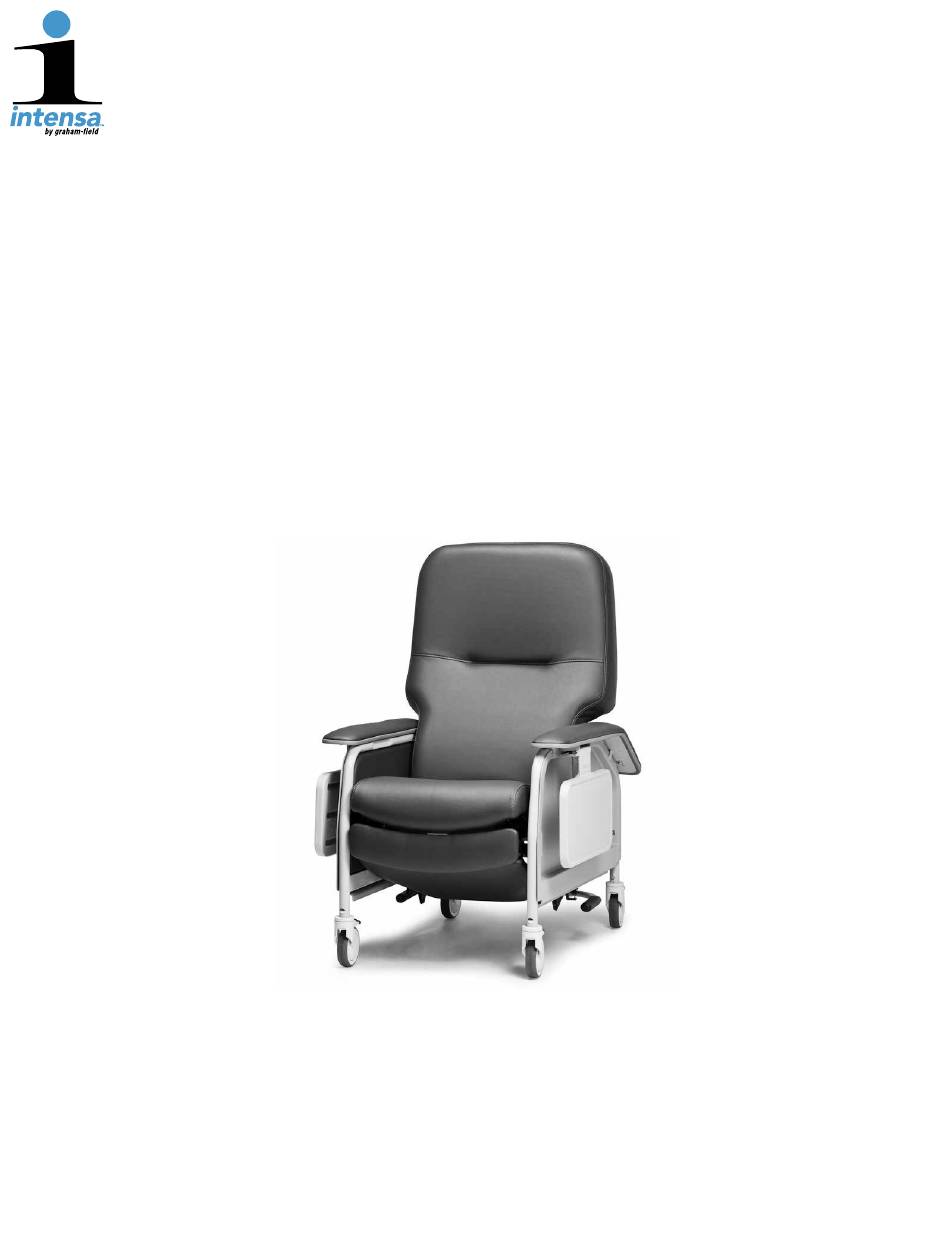

Series IN566G Deluxe Clinical Care Recliner
Series IN566DG Deluxe Clinical Care Recliner with Drop Arm
Series IN566GH Deluxe Clinical Care Recliner
Series IN566DGH Deluxe Clinical Care Recliner with Drop Arm
Series IN566GHO Deluxe Clinical Care Recliner
Series IN566DGHO Deluxe Clinical Care Recliner with Drop Arm
ASS EM BLY A ND O P E RATI NG
SAVE THIS MANUAL FOR FUTURE USE.
with Heat and Massage
with Heat and Massage
with Heat Only
with Heat Only
INSTR UCTI O NS
IN_IN566DG-INS-LAB-RevB22
Advertisement
Table of Contents
Related Manuals for Graham Field Intensa IN566G Series
Summary of Contents for Graham Field Intensa IN566G Series
- Page 1 Series IN566G Deluxe Clinical Care Recliner Series IN566DG Deluxe Clinical Care Recliner with Drop Arm Series IN566GH Deluxe Clinical Care Recliner with Heat and Massage Series IN566DGH Deluxe Clinical Care Recliner with Drop Arm with Heat and Massage Series IN566GHO Deluxe Clinical Care Recliner with Heat Only Series IN566DGHO Deluxe Clinical Care Recliner with Drop Arm with Heat Only...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ........................... 3 INTENDED USE ..........................3 IMPORTANT SAFETY PRECAUTIONS—READ BEFORE USE ........... 3 WARNINGS ..........................3 ASSEMBLY ............................5 UNPACKING ............................ 5 PRODUCT DESCRIPTION ......................5 FEATURES, SERIES IN566G ....................5 FEATURES, SERIES IN566DG ....................5 UPHOLSTERED BACK ASSEMBLY, ALL MODELS ..............6 OPERATION ............................ -
Page 3: Introduction
INTRODUCTION This manual contains assembly, operation, and maintenance instructions for Intensa Clinical Care Recliners Series IN566G (Models IN566G, IN566GH, and IN566GHO) and IN566DG (Models IN566DG, IN566DGH, and IN566DGHO). Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, call Graham-Field / Intensa Technical Support at 1.770.368.4700. - Page 4 WARNING: This product has a maximum weight capacity of 400 lb (181 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times, except during transport. WARNING: Unauthorized modification of your recliner or the use of non-Intensa replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.
-
Page 5: Assembly
ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, please notify the carrier and your Graham-Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION Features, Series IN566G upholstered back upholstered seat padded push handle upholstered armrest... -
Page 6: Upholstered Back Assembly, All Models
Upholstered Back Assembly, All Models upholstered back upholstered skirt threaded knobs upholstered back’s kd brackets steel tube mechanism’s bayonet links bracket and link to be even threaded knob through large hole in bayonet link kd bracket bayonet link 1. Lift the skirt on the rear of the upholstered back. To make assembly easier, hold skirt up with a small piece of tape to fully expose the KD (knock-down) brackets that are to be mated to the two bayonet lugs on the recliner mechanism. -
Page 7: Operation
OPERATION WARNING: Disconnection of the device: In case of emergency, always disconnect the device by removing the power cord plug from the power outlet. TENTE CASTERS, ALL MODELS ® WARNING: Casters must be locked at all times, except during transport. black actuator tab green actuator tab All Intensa Clinical Care Recliners now feature the latest... -
Page 8: Side Table Operation, All Models
SIDE TABLE OPERATION, ALL MODELS To Raise Table side table (disengaged position) Raise the side table all the way up armrest and slide in toward the armrest until tabs engage slots in mount bracket. " clevis pin Press down lightly on table to ensure attachment side table locking tabs are engaged. -
Page 9: Side Panel Operation
SIDE PANEL OPERATION For easy cleaning and access to the side and underside of the recliner, Intensa Clinical Care Recliners feature easy-to-remove side panels. Series IN566G To Remove Side Panel: depress the two panel tabs push buttons located on the lower sides side panel of frame. -
Page 10: Recliner Operation, All Models
RECLINER OPERATION, ALL MODELS The Intensa Series IN566G / IN566DG recliners feature three positions for patient comfort. The fourth position is a Trendelenburg (or Shock) Position that must be activated by a caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the recliner. In addition, this recliner features a back that can be repositioned via the Adjustment Lever located on the Push Handle on the back of the recliner. -
Page 11: Third Position
Third Position Upright Position The third position is the Second Recline Position and is also known as the “Full Recline” position. This position is ideal for patient treatment, rest and reading. First Recline Position To Achieve Third Position / Second Recline Position: (TV Position) •... -
Page 12: Drop Arm Function, Series In566Dg Only
DROP ARM FUNCTION, SERIES IN566DG ONLY The Intensa Deluxe Clinical Care Recliner with Drop Arm (Series IN566DG) features self-storing drop arms that are simple for the caregiver to actuate. By lowering the arm, a safer and easier lateral transfer for the resident and caregiver can be achieved. WARNING: Always lock all recliner casters before attempting to transfer a patient. -
Page 13: Recliners With Heat And Massage Or Heat Only Feature
RECLINERS WITH HEAT AND MASSAGE OR HEAT ONLY FEATURE HEAT AND MASSAGE: IN566GH / IN566DGH; HEAT ONLY: IN566GHO / IN566DGHO INSTALLATION AND OPERATING GUIDE Tools required: masking or packaging tape WARNING: Important! Read and understand these instructions before assembling or using the Specialty Healthcare Seating Heat and Massage / Heat Only Unit. -
Page 14: Heat And Massage / Heat Only Installation Instructions
Handheld Heat & Massage Power Cord Handheld Heat Only Power Cord Pendant Connectors Connector Pendant Connectors Connector Connector Connector Heat and Massage Feature — Heat Only Feature — Control Module and Transformer Unit Control Module and Transformer Unit Showing All Connections Correctly Made Showing All Connections Correctly Made 2. - Page 15 Insert Insert Seat Seat Connector Connector Here Here Heat and Massage Feature — Heat Only Feature — Install Seat Connector Install Seat Connector 4. There is only one connection to make — push the seat connector firmly into the control module until its locking tabs snap into place as shown above.
-
Page 16: Heat And Massage / Heat Only Unit Operation Instructions
Heat and Massage / Heat Only Unit Operation Instructions 1. Plug the power cord into any grounded outlet. Handheld Pendant Handheld Pendant Heat and Massage Heat Only 2. The Heat and Massage / Heat Only Unit is operated using the Handheld Pendant, shown above. HIGH HEAT PRESS 1 TIME MEDIUM HEAT... - Page 17 4. Heat and Massage MASSAGE Option: Press the MASSAGE switch to start this function. The Massage Function Settings are as follows: a) Press selector switch for Setting 1: Gentle Lower Back Massage. b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage. c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
-
Page 18: Heat And Massage / Heat Only Unit Troubleshooting Guide
Heat and Massage / Heat Only Unit Troubleshooting Guide The cables and connections need to be validated. This will require the services of a maintenance person and a clear working area. 1. INSPECTION: Perform the following checks. If a working recliner of the same model is available, use it for comparison. -
Page 19: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure casters into frame. • Check caster brakes. • Check and clean lock recline mechanism. •... -
Page 20: Cdc Recommendations
Abrasion test results exceeding ACT Performance Guidelines are not an indicator of product lifespan. Multiple factors affect fabric durability and appearance retention. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents. The use of certain agents can be harmful to the surface appearance and lifespan of vinyl. - Page 21 • Follow proper procedures for effective uses of mops, cloths, and solutions. • Prepare cleaning solutions daily or as needed, and replace with fresh solution frequently according to facility policies and procedures. • Change the mop head at the beginning of each day and also as required by facility policy, or after cleaning up large spills of blood or other body substances.
-
Page 22: Disposal And Key To Symbols
DISPOSAL AND KEY TO SYMBOLS DISPOSAL Intensa Recliner equipment and accessories can be disposed of. We recommend disassembling and dividing the equipment and components into different waste groups such as: metal, cable, electronic, recoverable resource and plastic for recycling or combustion. -
Page 23: Key To Symbols
KEY TO SYMBOLS The following symbols are used on Intensa Recliner product labels. MANUFACTURER GENERAL WARNING SIGN FRAGILE, HANDLE WITH CARE KEEP DRY ELECTRICAL AND ELECTRONIC CE MARK EQUIPMENT CAUTION CONSULT INSTRUCTIONS FOR USE EUROPEAN AUTHORIZED MEDICAL DEVICE REPRESENTATIVE UNIQUE DEVICE IDENTIFIER IN_IN566DG-INS-LAB-RevB22 www.intensa.net... -
Page 24: Technical Specifications
TECHNICAL SPECIFICATIONS Specification Series IN566G Series IN566DG Overall Height 50" (129.5 cm) " (130.8 cm) Overall Width 31" (78.7 cm) 33" (83.8 cm) Overall Depth 43" (109.2 cm) 38" (96.5 cm) Width Between Arms 21" (53.3 cm) 23" (58.4 cm) Arm Height from Floor "... -
Page 25: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (GF) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 26 8) Representations and warranties made by any person or entity other than GF. ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. GF MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
-
Page 27: Index
INDEX Assembly 5 Side panel, install 9 Side panel operation 9 Side panel, remove 9 Side table, lower 8 Care and maintenance 19 Side table operation 8 Caster, directional (swivel) 7 Side table, raise 8 Casters 7 Symbol key, Intensa Recliner product labels 23 Casters, locking 7 CAUTION statement, significance 3 Technical specifications 24... - Page 28 Manufactured By: GF Health Products, Inc. One Graham-Field Way, Atlanta, GA 30340 GF Health Products, Inc. is an ISO 13485:2016 MDSAP Certified Company +1 770.368.4700 Information contained herein is subject to change without notice. The most current and complete product information can be found on our website. www.intensa.net | www.grahamfield.com ©...
