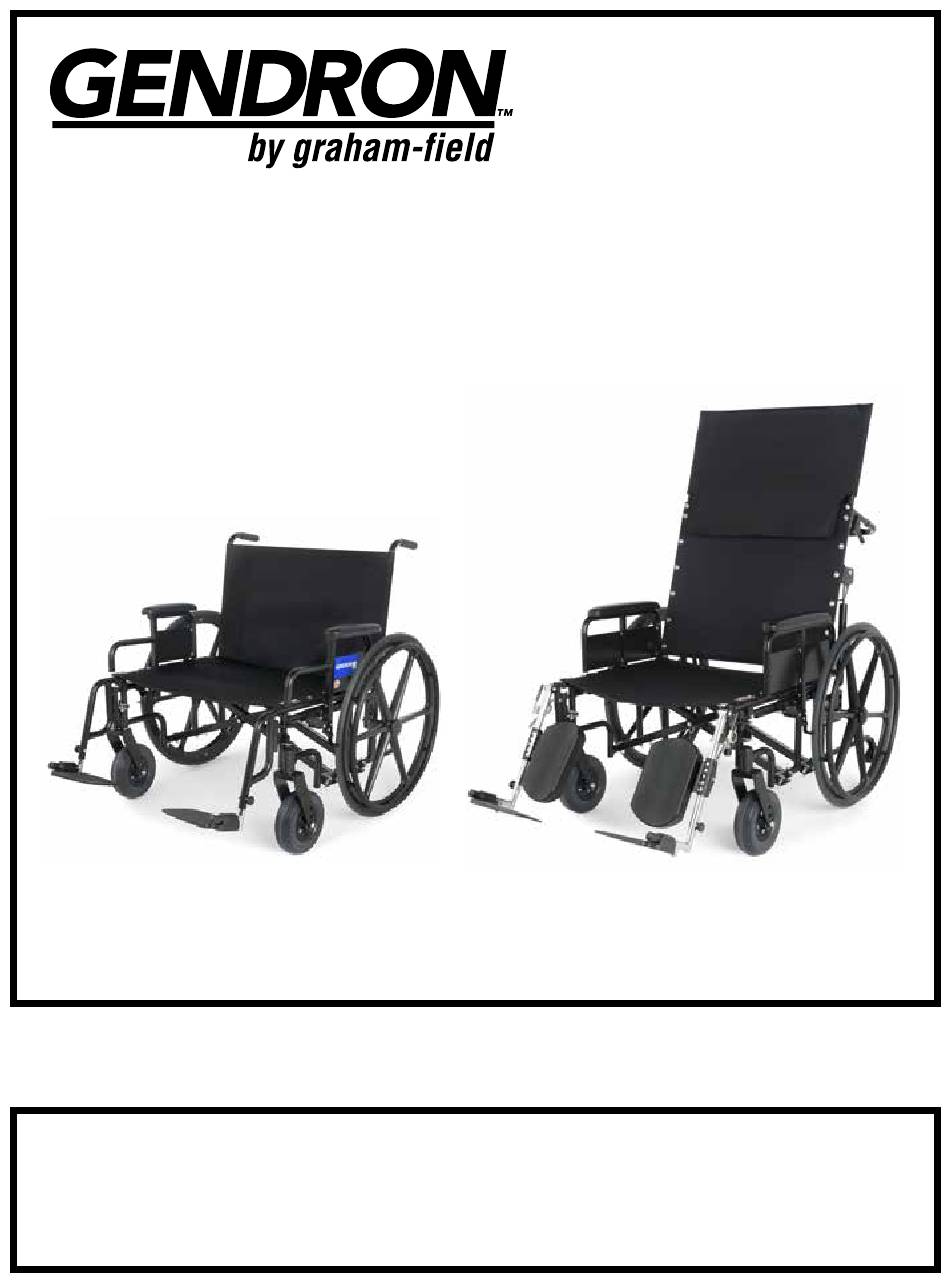

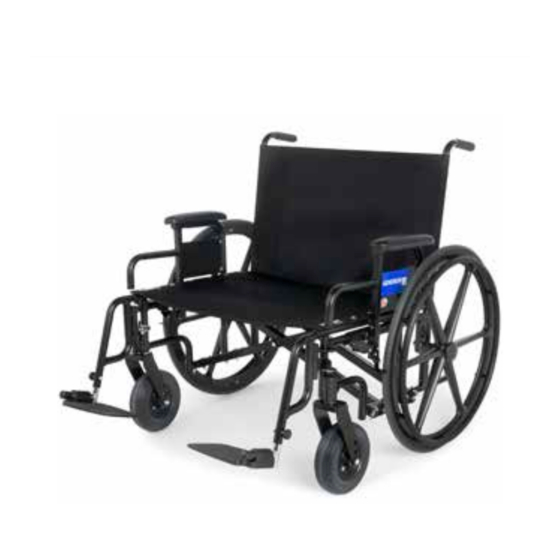

- Page 1 6700 Standard / 6700 Recliner 6800 Standard / 6800 Recliner Bariatric Manual Wheelchair User Manual GD_6700-6800-INS-LAB-RevA21 Read this manual before operating your wheelchair. Save this manual for future use. The most current version of this manual can be found online at www.grahamfield.com.
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION......................................3 IMPORTANT SAFETY PRECAUTIONS ..............................4 WARNINGS ........................................4 GETTING STARTED — SETUP AND GENERAL OPERATION GUIDELINES..................6 REGENCY 6700 / 6800 COMPONENT IDENTIFICATION ..........................6 OPERATING THE WHEEL LOCKS ................................. 7 UNFOLDING AND FOLDING THE WHEELCHAIR ............................7 UNFOLDING THE WHEELCHAIR ................................8 OPENING THE WHEELCHAIR (ALL MODELS) .......................... -
Page 3: Introduction
1 INTRODUCTION Important safety, operating, and maintenance instructions that warrant your attention are included in this user manual. Read this entire manual carefully before operating your new wheelchair, keep it handy for future reference, and refer to it as often as necessary to help maintain good performance standards. -
Page 4: Important Safety Precautions
2 IMPORTANT SAFETY PRECAUTIONS IMPORTANT SAFETY PRECAUTIONS: ALWAYS FOLLOW THESE SAFETY PRECAUTIONS WHEN USING YOUR WHEELCHAIR. FAILURE TO DO SO COULD RESULT IN PERSONAL INJURY TO YOU OR OTHERS OR DAMAGE TO YOUR WHEELCHAIR. Safety requires the constant attention of the wheelchair user and the attendant. It is extremely important to learn and always use safe methods of performing basic daily activities. - Page 5 WARNING: Do not wrap hand around seat edge when opening or entering the chair. WARNING: When folding or unfolding the wheelchair, do not place your fingers or hands under the seat rail or between the seat rail and side panel. WARNING: Do not lift the wheelchair by the arms, footrests or legrests, or any other detachable parts.
-
Page 6: Getting Started - Setup And General Operation Guidelines
3 GETTING STARTED — SETUP AND GENERAL OPERATION GUIDELINES REGENCY 6700 / 6800 COMPONENT IDENTIFICATION Familiarize yourself with main components, identified in Regency 6700 / 6800 illustrations below. backpost / push handle handgrip back upholstery armpad rear wheel seat upholstery footrest handrim footplate... -
Page 7: Operating The Wheel Locks
OPERATING THE WHEEL LOCKS The Regency 6700 / 6800 has two wheel locks — one on each rear wheel. To engage the wheel locks, push the levers forward until they lock into place. To disengage, pull back on the levers until the wheels roll freely. -
Page 8: Unfolding The Wheelchair
UNFOLDING THE WHEELCHAIR Opening the Wheelchair (All Models) 1. Engage wheel locks on both sides. 2. Use both hands to push down with even pressure on seat tubes and seat upholstery on insides of wheelchair, as shown at above left, until the seat rails are fully seated, as shown at above right. -
Page 9: Folding The Wheelchair For Transportation Or Storage
FOLDING THE WHEELCHAIR FOR TRANSPORTATION OR STORAGE Removing the Headrest and Pushbar (Reclining Models Only) 1. Press both pushbar spring buttons and pull pushbar out away from push handles. 2 Remove headrest cover, shown at above left. 3. Remove headrest as shown at above right: slide headrest up and off headrest support assembly as shown. -
Page 10: Handling Tips
4 HANDLING TIPS The Gendron Regency 6700 / 6800 has been designed and engineered to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the Regency 6700 / 6800 over if it is used improperly or if you move beyond the center of gravity. You may want to consider the use of a positioning belt, available from your distributor or www.grahamfield.com, to maintain proper weight distribution. -
Page 11: Reaching / Bending
REACHING / BENDING WARNING: Always turn the casters frontward to provide stability while reaching. If in doubt, ask for assistance or use a device that will extend your reach without requiring you to shift your weight. Although it is not recommended, you may find it occasionally necessary to lean or reach from your wheelchair. -
Page 12: Ramps And Inclines
RAMPS AND INCLINES WARNING: During descent, the footplates' lowest point should be no closer to the ground than 2 1/2 inches to permit proper clearance. WARNING: Do not attempt inclines without anti-tippers installed. Do not attempt any incline or decline of more than 6 degrees (10% grade, or one foot of rise or fall per ten feet of ramp length). -
Page 13: Curbs - With Attendant
CURBS — WITH ATTENDANT Going up (Method 1) Going Up (Method 2) (Going Down) WARNING: When approaching a curb, ensure the hand grips are securely fastened and do not turn or slip off. Curbs should only be negotiated with the assistance of an attendant. The following are suggestions only for curb negotiation. -
Page 14: Adjustments
5 ADJUSTMENTS The Regency 6700 / 6800 offers several adjustments to make it easier and more comfortable to drive. The MAINTENANCE section offers preventive maintenance suggestions for keeping your wheelchair in excellent condition; ensure that all components are in excellent condition before adjusting. -
Page 15: Adjust Arm Position
ADJUST ARM POSITION LOCKED UNLOCKED Tools required: " wrench To adjust the front-to-rear position, loosen the two locknuts behind the clamp bracket (shown Rail at right), slide along the rail to the desired position, and tighten the locknuts. Locknuts SWINGAWAY FOOTREST / ELEVATING LEGREST Swingaway Footrest Elevating Legrest WARNING: Avoid potential pinch points while swinging the Footrest or Elevating Legrest in... -
Page 16: Swingaway Footrest, Elevating Legrest: Adjust Footplate Extension Length
SWINGAWAY FOOTREST, ELEVATING LEGREST: ADJUST FOOTPLATE EXTENSION LENGTH Tools required: " wrench Legrest height release lever Calf pad position adjustment (calf pad height adjustment bracket) Calf pad Swingaway Swingaway release lever release lever Footplate length adjustment Footplate length adjustment Caster cap Legrest rod and release Swingaway footrest Elevating legrest... -
Page 17: Crossbraces
CROSSBRACES TIGHTEN CROSSBRACES Tools required: " wrench Check the crossbraces to ensure that the bolt and nut securing both crossbraces in the center of the wheelchair are secure (crossbraces should be loose enough to fold easily, yet snug enough to take up excess play). -
Page 18: Recliner
RECLINER ADJUSTING THE BACK ANGLE HEADREST Spring button Release lever Pushbar 1. See picture above: to adjust the back angle, grasp both ends of pushbar securely and simultaneously pull up on both release levers (use your hands to squeeze pushbar ends and release levers together). -
Page 19: Transporting The Gendron Regency 6700 / 6800
6 TRANSPORTING THE GENDRON REGENCY 6700 / 6800 WARNING: This wheelchair does not offer seating or occupant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to the vehicle seat and use the restraint provided by the vehicle manufacturer. -
Page 20: Maintenance
7 MAINTENANCE Protect your Gendron Regency 6700 / 6800 by having it serviced regularly. Proper care and maintenance are essential to keep your wheelchair in safe working condition. Periodic inspection, adjustment, and replacement of worn parts will provide many years of superb performance. -
Page 21: List Of Tools
LIST OF TOOLS The tools and cleaning supplies listed will assist in the following procedures. 30 weight oil (available at most auto parts stores) Phillips screwdriver soft cloth mild soap and water solution GENERAL CARE Always evaluate the overall operation of your wheelchair. It should function with ease and should travel straight without excessive drag or pull to one side. -
Page 22: Check Upholstery
CHECK UPHOLSTERY Check upholstery at least once a month. Inspect for rips, tears and worn spots. Ensure that all upholstery-attaching screws are present, properly aligned, and well-secured. Use a Phillips screwdriver to tighten upholstery mounting screws. Check attaching screws for sharp edges or stripped screws, and replace if found. -
Page 23: Check Casters
CHECK CASTERS Check the caster stems for proper rotation at least every three months. The caster forks must swivel freely to facilitate steering and handling. Adjusting the stem nut varies the amount of force required to turn the caster. If the nut is too loose, the caster will flutter or shimmy; if too tight, the wheelchair will be difficult to steer. -
Page 24: Troubleshooting
8 TROUBLESHOOTING Continual use of your Regency 6700 / 6800 necessitates maintenance, especially if the factory- set adjustments have been altered. The following troubleshooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your Graham-Field authorized distributor for assistance. -
Page 25: Specifications
9 SPECIFICATIONS Specification Model 6700 Standard 6800 Standard Fixed Back 6700 Recliner Fixed Back 6800 Recliner Overall Depth 43" (109.2 cm) 53" (134.6 cm) 43" (109.2 cm) 53" (134.6 cm) Overall Height 35" (88.9 cm) 53" (134.6 cm) 35" (88.9 cm) 53"... -
Page 26: Limited Warranty
10 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 27: Index
11 INDEX Adjustments 14 Pushbar, installing (reclining models only) 8 Anti-tipper position, adjust 17 Anti-tippers 17 Ramps and Inclines 12 Anti-tippers, check 21 Reaching / bending 11 Arm, install 14 Rear wheel adjustment, check 22 Arm position, adjust 15 Rear wheels 14 Arm, remove 14 Recliner, adjusting the back angle 18 Arms 14... - Page 28 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com / www.gendroninc.com © 2021, GF Health Products, Inc. All Rights Reserved. Gendron is a trademark of GF Health Products, Inc. GF Health Products, Inc.
