Graham Field Everest Jennings 2055LS Assembly And Operation Instructions

The most current version of these instructions can be found online at www.grahamfield.com.
Tools required: Phillips screwdriver
WARNING: Important! Read and understand these instructions before assembling or using the
Everest & Jennings Adjustable Back Upholstery with Cushion. If you do not understand any
part of these warnings or instructions, contact a healthcare professional for direction in the use
of this product. If the Upholstery is not properly assembled, personal injury and damage to the
Upholstery could result.
WARNING: If components are damaged or missing, contact your Graham-Field distributor
immediately. DO NOT use substitute parts. Use only Everest & Jennings replacement parts.
Non-Everest & Jennings replacement parts could cause personal injury and damage to the
Upholstery.
WARNING: DO NOT exceed the wheelchair's maximum weight capacity.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused
by improper assembly, installation or use of this product.

INTENDED USE

The Adjustable Back Upholstery with Cushion is intended to provide a stable surface for
propulsion and completion of wheelchair user's daily living activities.

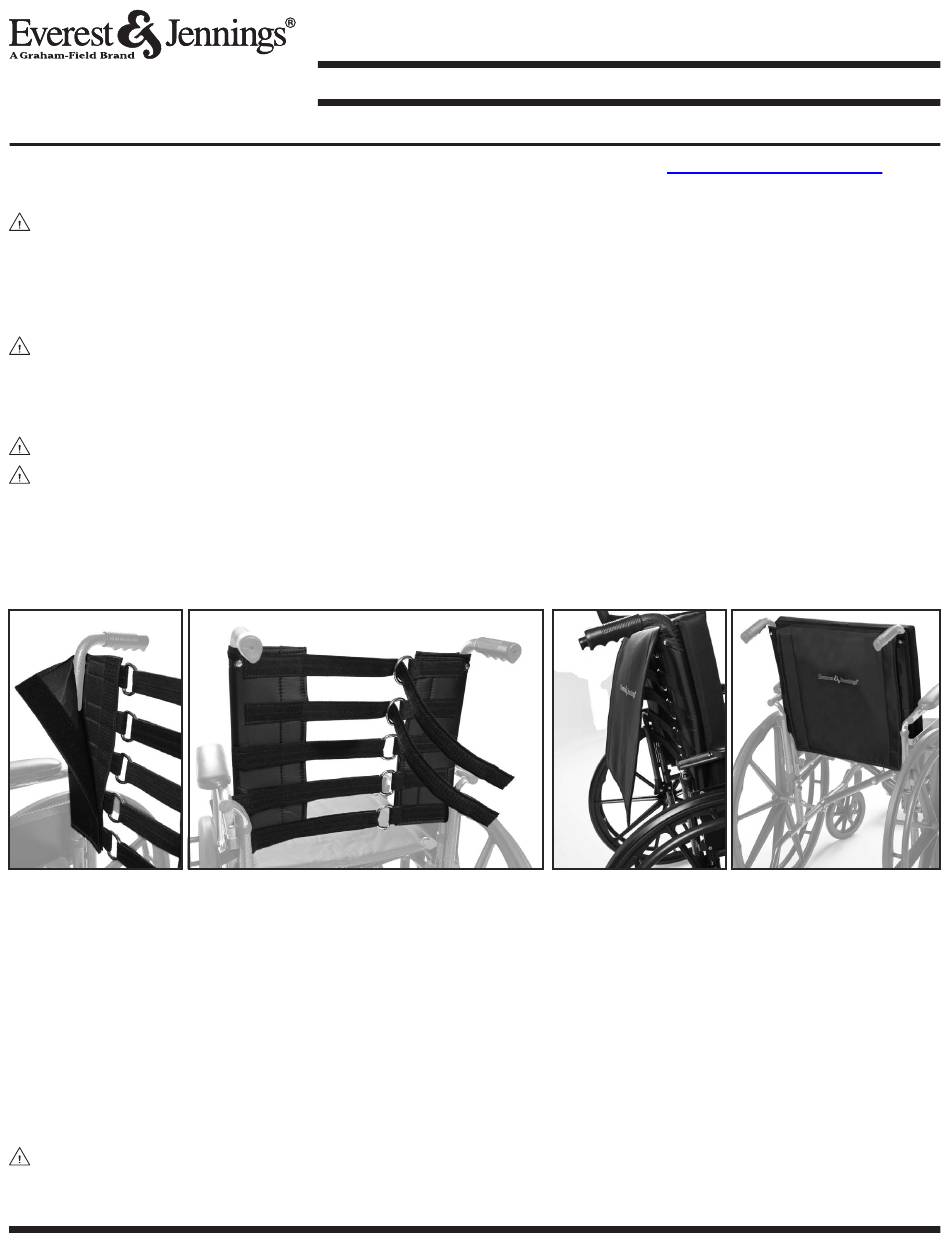

Fig. 1
ASSEMBLY (REFER TO PICTURES ABOVE)
1. Use Phillips screwdriver to remove existing wheelchair back upholstery; keep hardware and
upholstery for future use.
2. Place Back Upholstery around backposts as shown in Fig. 1.
3. Using existing hardware, install screw through grommet at top of Upholstery into backpost as
shown in Fig. 2. Use Phillips screwdriver to tighten securely. Do this for both backposts.
4. Place cushion over Upholstery as shown in Fig. 3, and use hook and loop strips to fasten.
Wheelchair with Back Upholstery and Cushion installed is shown in Fig. 4.
5. Straps can be tightened or loosened as shown in Fig. 2 depending on user preference.
WARNING: Straps must be securely fastened. Failure to do so could affect back support and
result in personal injury.
2055LS-INS-LAB-RevB13
2055LS: ADJUSTABLE BACK UPHOLSTERY WITH CUSHION
ASSEMBLY AND OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
PARA INSTRUCCIONES EN ESPAÑOL, CONSULTE LA PAGINA 3
Fig. 2 Fig. 3 Fig. 4
