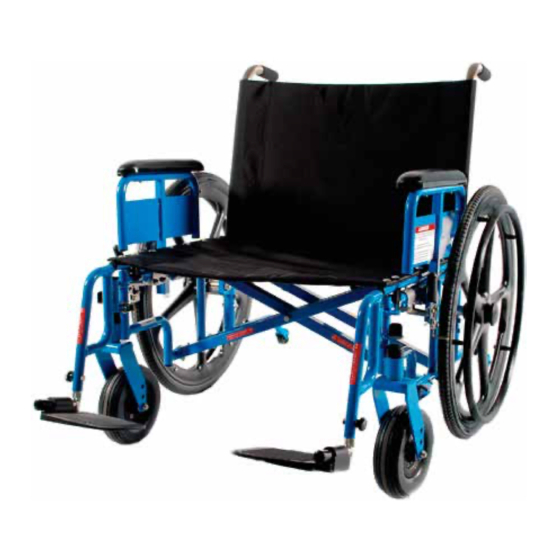

- Page 1 4000MRQ2 / 4650MR / 4850MR MRI Transport Wheelchair User Manual GD_MR-INS-LAB-RevA21 Read this manual before operating your wheelchair. Save this manual for future use. The most current version of this manual can be found online at www.grahamfield.com.
-
Page 2: Table Of Contents
WARNING: MRI Transport Wheelchair user and attendant: Do not operate the transport wheelchair without first reading and understanding this manual. If you do not understand the warnings, cautions, and instructions provided herein, contact your healthcare professional, GF authorized distributor, or technical representative before proceeding with the use of this product;... -
Page 3: Introduction
1 INTRODUCTION Thank you for choosing a Gendron product. We at Graham-Field wish to assure you of our continuing commitment to provide innovation and quality in our products. Important safety, operating, and maintenance instructions that warrant your attention are included in this user manual. Read this entire manual carefully before operating your new transport wheelchair, keep it handy for future reference, and refer to it as often as necessary to help maintain good performance standards. -
Page 4: Standard Safety Statements
STANDARD SAFETY STATEMENTS Note the following special statements, used throughout this manual, and their significance: WARNING: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in death or serious personal injury. CAUTION: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in minor or moderate personal injury. -
Page 5: Important Safety Precautions
2 IMPORTANT SAFETY PRECAUTIONS IMPORTANT SAFETY PRECAUTIONS: ALWAYS FOLLOW THESE SAFETY PRECAUTIONS WHEN USING YOUR TRANSPORT WHEELCHAIR. FAILURE TO DO SO COULD RESULT IN PERSONAL INJURY TO YOU OR OTHERS OR DAMAGE TO YOUR WHEELCHAIR. Safety requires the constant attention of the transport wheelchair user and the attendant. It is extremely important to learn and always use safe methods of performing basic daily activities. - Page 6 WARNING: When folding or unfolding the transport wheelchair, do not place your fingers or hands under the seat rail. WARNING: Do not lift the transport wheelchair by the arms, footrests, or any other detachable parts. WARNING: Always engage wheel locks before transferring, using a wheelchair lift, or using an elevator.
-
Page 7: Getting Started - Setup And General Operation Guidelines
3 GETTING STARTED — SETUP AND GENERAL OPERATION GUIDELINES MRI TRANSPORT WHEELCHAIR COMPONENT IDENTIFICATION Familiarize yourself with main components, identified in MRI Transport Wheelchair illustration below. seat upholstery back upholstery handgrip armpad rear wheel removable arm handrim swingaway footrest footrest length adjustment bolt footplate frame... -
Page 8: Unfolding The Transport Wheelchair
UNFOLDING THE TRANSPORT WHEELCHAIR 1. Engage wheel locks on both sides. 2. Use both hands to push down with even pressure on seat tubes and seat upholstery on insides of transport wheelchair, as shown at above left, until the seat rails are fully seated, as shown at above right. -
Page 9: Handling Tips
4 HANDLING TIPS The Gendron MRI Transport Wheelchair has been designed and engineered to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the MRI Transport Wheelchair over if it is used improperly or if you move beyond the center of gravity. -
Page 10: Reaching / Bending
REACHING / BENDING WARNING: Always turn the casters frontward to provide stability while reaching. If in doubt, ask for assistance or use a device that will extend your reach without requiring you to shift your weight. Although it is not recommended, you may find it occasionally necessary to lean or reach from your transport wheelchair. -
Page 11: Ramps And Inclines
RAMPS AND INCLINES WARNING: During descent, the footplates' lowest point should be no closer to the ground than 2 1/2 inches to permit proper clearance. WARNING: Do not attempt inclines without anti-tippers installed. Do not attempt any incline or decline of more than 6 degrees (10% grade, or one foot of rise or fall per ten feet of ramp length). -
Page 12: Curbs - With Attendant
CURBS — WITH ATTENDANT Going up (Method 1) Going Up (Method 2) (Going Down) WARNING: When approaching a curb, ensure the hand grips are securely fastened and do not turn or slip off. Curbs should only be negotiated with the assistance of an attendant. The following are suggestions only for curb negotiation. -
Page 13: Adjustments
5 ADJUSTMENTS The MRI Transport Wheelchair offers several adjustments to make it easier and more comfortable to drive. The MAINTENANCE section offers preventive maintenance suggestions for keeping your transport wheelchair in excellent condition; ensure that all components are in excellent condition before adjusting. -
Page 14: Swingaway Footrest
SWINGAWAY FOOTREST Swingaway Footrest WARNING: Avoid potential pinch points while swinging the footrest in or out. WARNING: The footplates' lowest point should be no closer to the ground than 2 inches, to permit proper clearance. WARNING: Do not stand on the footplates; this could cause the transport wheelchair to tip. SWING FOOTREST AWAY FOR TRANSFER 1. -
Page 15: Wheel Locks
WHEEL LOCKS ADJUST WHEEL LOCKS As a result of tire wear, wheel locks may need adjustment to prevent the rear wheels from turning when the wheel locks are engaged. To adjust wheel locks: 1. Use " wrench to loosen the two locknuts (shown at right) until the lock slides on the frame. -
Page 16: Transporting The Gendron Mri Transport Wheelchair
6 TRANSPORTING THE GENDRON MRI TRANSPORT WHEELCHAIR WARNING: The transport wheelchair does not offer seating or occupant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to the vehicle seat and use the restraint provided by the vehicle manufacturer. -
Page 17: Maintenance
7 MAINTENANCE Protect your Gendron MRI Transport Wheelchair by having it serviced regularly. Proper care and maintenance are essential to keep your transport wheelchair in safe working condition. Periodic inspection, adjustment, and replacement of worn parts will provide many years of superb performance. When you believe that a component or part of your MRI Transport Wheelchair is not functioning properly, contact your Graham-Field authorized distributor immediately, as a potentially hazardous condition could result. -
Page 18: List Of Tools
LIST OF TOOLS The tools and cleaning supplies listed will assist in the following procedures. 30 weight oil (available at most auto parts stores), Phillips screwdriver; clean, soft cloth; and mild soap and water solution GENERAL CARE Always evaluate the overall operation of your transport wheelchair. It should function with ease and should travel straight without excessive drag or pull to one side. -
Page 19: Check Rear Wheel Adjustment
CHECK REAR WHEEL ADJUSTMENT Inspect the wheels at least once a month. Check alignment by elevating the rear of the transport wheelchair on a stable object until the rear wheels clear the ground, or placing the transport wheelchair upside down in a stable position such that the wheels can spin freely. Spin the wheels; there should be no wobble or sideplay, and the wheels should spin freely without binding. -
Page 20: Troubleshooting
8 TROUBLESHOOTING Continual use of your MRI Transport Wheelchair necessitates maintenance, especially if the factory-set adjustments have been altered. The following troubleshooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your Graham-Field authorized distributor for assistance. -
Page 21: Limited Warranty
9 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. - Page 22 ENTIRE WARRANTY, EXCLUSIVE REMEDY AND CONSEQUENTIAL DAMAGES DISCLAIMER THIS WARRANTY IS GF’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. GF MAKES NO IMPLIED WARRANTIES OF ANY KIND INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IF ANY MODEL OR SAMPLE WAS SHOWN TO THE CUSTOMER, SUCH MODEL OR SAMPLE WAS USED MERELY TO ILLUSTRATE THE GENERAL TYPE AND QUALITY OF THE PRODUCT AND NOT TO REPRESENT THAT THE PRODUCT WOULD NECESSARILY CONFORM TO THE MODEL OR...
-
Page 23: Index
10 INDEX Reaching / bending 10 Rear wheel adjustment, check 19 Adjustments 13 Rear wheels 13 Anti-tippers, check 18 Arm, install 13 Arm, remove 13 Safety precautions 5 Arms 13 Setup 7 Arms, check 19 Stairs 12 Backposts, check 19 Tires, check 18 Balance 9 Tools, for adjustment, list 13... - Page 24 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. grahamfield.com / gendroninc.com © 2021, GF Health Products, Inc. All Rights Reserved. Gendron is a trademark of GF Health Products, Inc. GF Health Products, Inc.
