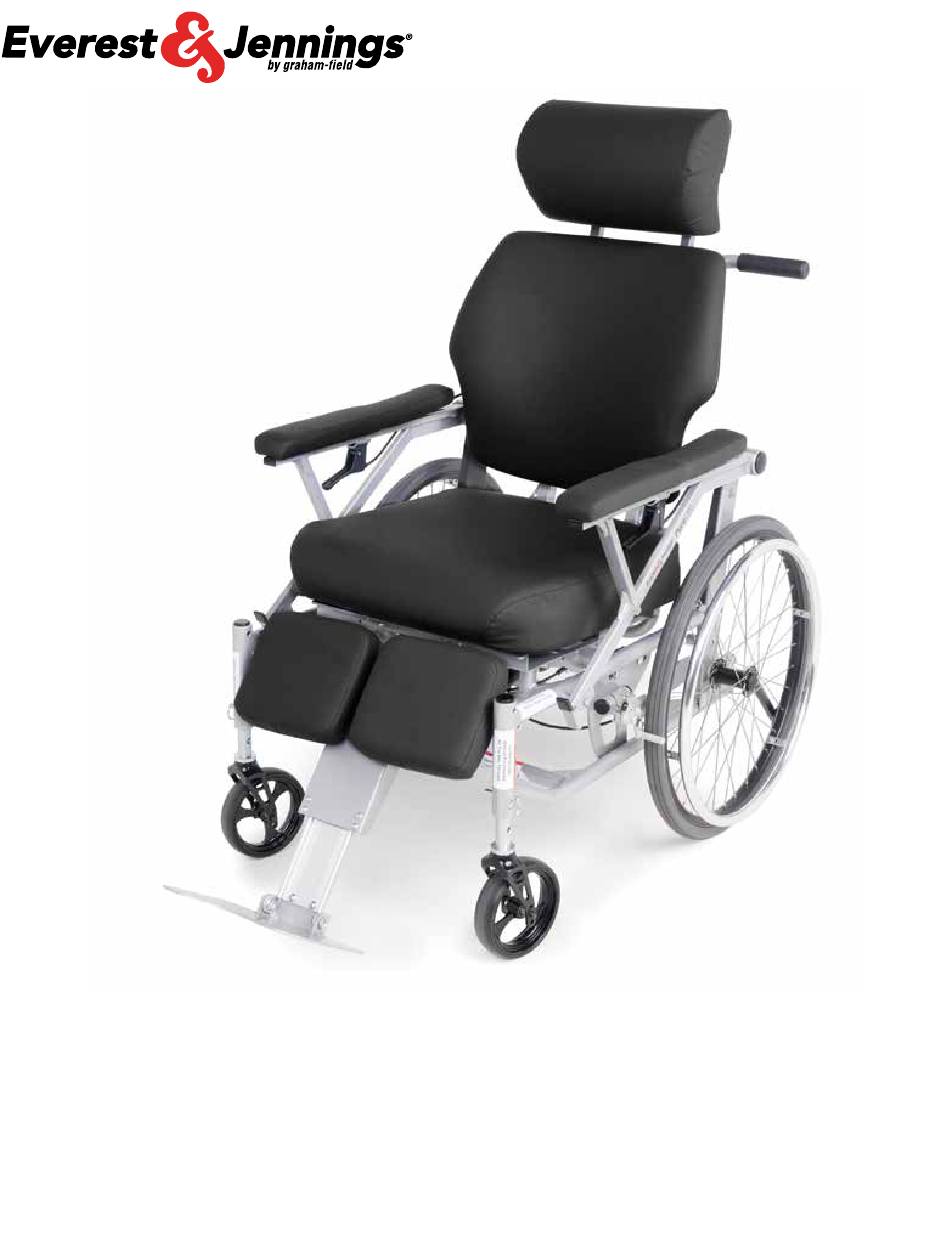

- Page 1 PU R ETILT ™ PT3000-18 MANUAL TILT WHEELCHAIR SERVICE AND MAINTENANCE MANUAL SAVE THIS MANUAL FOR FUTURE USE. EJ_PT3000-18-INS-LAB-RevC22...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ............................................3 INTENDED USE ............................................3 STATEMENTS OF SIGNIFICANCE ......................................3 IMPORTANT SAFETY PRECAUTIONS ....................................4 WARNINGS ...............................................4 FEATURES ..............................................6 PURETILT LABELS ..........................................7 GETTING STARTED ..........................................8 OPERATING THE WHEEL LOCKS ......................................8 INSTALLING THE FRONT CASTERS ......................................8 INSTALLING AND OPERATING THE ANTI-TIPPERS ................................9 INSTALLING THE HEADREST ........................................9 UNFOLDING AND FOLDING THE WHEELCHAIR ................................10 UNFOLDING THE WHEELCHAIR ....................................10... -
Page 3: Introduction
READ THIS MANUAL BEFORE OPERATING YOUR WHEELCHAIR 1 INTRODUCTION Thank you for choosing an Everest & Jennings product. Important safety, operating, and maintenance instructions that warrant your attention are included in this user manual. Read the entire manual carefully before operating your new wheelchair, and refer to it as often as necessary to help maintain good performance standards. -
Page 4: Important Safety Precautions
2 IMPORTANT SAFETY PRECAUTIONS IMPORTANT SAFETY PRECAUTIONS: ALWAYS FOLLOW THESE SAFETY PRECAUTIONS WHEN USING YOUR WHEELCHAIR. FAILURE TO DO SO COULD RESULT IN PERSONAL INJURY TO YOU OR OTHERS OR DAMAGE TO YOUR WHEELCHAIR. Safety requires the constant attention of the wheelchair user and the attendant. It is extremely important to learn and always use safe methods of performing basic daily activities. - Page 5 WARNING: Do not stand or step on the footplate while transferring to or from your wheelchair. This could cause the wheelchair to tip or may cause personal injury or damage to your wheelchair. WARNING: Do not place your hand between seat rail and side panel. WARNING: Always engage wheel locks before transferring, using a wheelchair lift, or using an elevator.
-
Page 6: Features
3 FEATURES Familiarize yourself with main components, identified in PureTilt illustration below. Adjustable Headrest Adjustable Back Arm Pad Seat Cushion Push Handle Seat Tilt Control Handle Arm Rotation Hinge Rotatable Arm with Quick Release Legrest Pad Legrest Angle Control Handle Rear Propelling Wheel and Handrim Left Arm Release Handle Two-Inch Front Caster Height Adjustment... -
Page 7: Puretilt Labels
PURETILT LABELS You will find the following labels on the PureTilt wheelchair; descriptions are listed below and their locations are shown in the illustrations at the bottom of the page. Do not remove labels. A The chair identification label, shown at right, identifies the chair serial number and model, essential information when ordering replacement parts or claiming parts under warranty. The identification label location is shown below. -
Page 8: Getting Started
4 GETTING STARTED OPERATING THE WHEEL LOCKS WARNING: Always engage wheel locks before transferring, using a wheelchair lift, or using an elevator. Unlocked Locked Wheel Lock In Unlocked and Locked Positions Two wheel locks are located on the PureTilt; one on each of the rear wheels. 1. -
Page 9: Installing And Operating The Anti-Tippers
INSTALLING AND OPERATING THE ANTI-TIPPERS Upward Downward Anti-tippers Rotated to Upward and Downward Positions 1. Select the appropriate set of ports for the current height setting of the wheelchair (upper ports for hemi height, lower ports for standard height, as circled at above left). 2. -
Page 10: Unfolding And Folding The Wheelchair
UNFOLDING AND FOLDING THE WHEELCHAIR UNFOLDING the Wheelchair Info: There is a back lock on each side, one near each pivot point. 1. Engage wheel locks on both sides. 2. Rotate the back frame rearward. The back will lock into place in the upright position. -
Page 11: Handling Tips
5 HANDLING TIPS The Everest & Jennings PureTilt has been designed and engineered to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the PureTilt over if it is used improperly or if you move beyond the center of gravity. You may want to consider the use of a positioning belt, available from your distributor or www.grahamfield.com, to maintain proper weight distribution. -
Page 12: Reaching / Bending
REACHING / BENDING WARNING: Always turn the casters frontward to provide stability while reaching. If in doubt, ask for assistance or use a device that will extend your reach without requiring you to shift your weight. Although it is not recommended, you may find it occasionally necessary to lean or reach from your wheelchair. -
Page 13: Ramps And Inclines
RAMPS AND INCLINES WARNING: DO NOT attempt curbs or inclines while in the tilted position. The wheelchair must be in full upright position. WARNING: During descent, the footplate's lowest point should be no closer to the ground than 2 in. (6.4 cm) to permit proper clearance. WARNING: Do not attempt inclines without anti-tippers installed. -
Page 14: Curbs - With Attendant
Curbs — with Attendant Going up (Method 1) Going Up (Method 2) Going Down WARNING: When approaching a curb, ensure the hand grips are securely fastened and do not turn or slip off. Curbs should only be negotiated with the assistance of an attendant. The following are suggestions only for curb negotiation. -
Page 15: Operation
6 OPERATION ROTATING THE ARMS The arms swing above the horizontal (upward and toward the back) to facilitate transfer, as shown at above left. 1. To unlock the arm, push the arm release handle, circled in red at above right. 2. -
Page 16: Operating Seat Tilt
OPERATING SEAT TILT PureTilt Shown Tilted Operating Seat Tilt: by User WARNING: Always engage the wheel locks, lock the arms into place, and lower the footplate before tilting the seat. Ensure anti-tippers are installed and in proper location. WARNING: Avoid accidental actuation of seat tilt and footrest levers. 1. -
Page 17: Adjustments
7 ADJUSTMENTS The PureTilt offers several adjustments to make it easier and more comfortable to operate. Section 9, MAINTENANCE, offers preventive maintenance suggestions for keeping your wheelchair in excellent condition; ensure that all components are in excellent condition before adjusting. The following are recommended methods;... -
Page 18: Headrest
HEADREST Adjust Headrest Height 1. Remove the quick-disconnect pins, shown circled in red at right, from posts and headrest mounting holes. 2. Slide the headrest up or down to the desired position. 3. While holding the headrest at the desired height, align the hole in each post with the matching hole in each mounting tube. -
Page 19: Adjust Legrest Angle
Adjust Legrest Angle 1. Locate the legrest angle control handle on the left arm, circled in red above. 2. To raise the legrest when it is in the vertical down position, squeeze the handle to raise the legrest through a range to nearly horizontal; release the handle to lock the legrest into the desired position. -
Page 20: Seat
SEAT Seat Tilt Force Seat Tilt Force Adjustment Holes Seat Tilt Force Adjustment Positions The force required to tilt the seat while the tilt handle is squeezed is adjustable. The seat tilt piston retaining pin can be placed in one of four different holes, as shown above. The lower the hole in which the pin is placed, the higher the effort required to tilt, and the higher the assistance provided to the user in rotating themself to an upright position. -
Page 21: Adjust Seat Tilt Force
Adjust Seat Tilt Force WARNING: DO NOT adjust the seat tilt force, nor remove nor adjust any of the retaining pins, while the wheelchair is occupied. WARNING: The Seat Tilt Piston is under high pressure. DO NOT twist or bend the piston in any way. -
Page 22: Wheel Locks
WHEEL LOCKS Adjust wheel locks M5 hex key Unlocked Locked Wheel Lock In Unlocked and Locked Positions 1. Ensure the wheel lock is unlocked Socket Head Cap Screws Mounting Clamp (pull the handle toward the back of the Handle Adjustment Rod wheelchair). -
Page 23: Transporting The Puretilt
8 TRANSPORTING THE PURETILT WARNING: This wheelchair does not offer seating or occupant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to the vehicle seat and use the restraint provided by the vehicle manufacturer. -
Page 24: Maintenance
9 MAINTENANCE Protect your E&J PureTilt by having it serviced regularly. Proper care and maintenance are essential to keep your wheelchair in safe working condition. Periodic inspection, adjustment, and replacement of worn parts will provide many years of superb performance. When you believe that a component or part of your PureTilt is not functioning properly, contact your GF authorized distributor immediately, as a potentially hazardous condition could result. -
Page 25: List Of Tools
List of tools The tools and cleaning supplies listed will assist in the procedures outlined in this section. 30 weight oil (available at most auto parts stores) M5, 9/64, and 7/64 hex keys soft cloth mild soap and water solution General care Always evaluate the overall operation of your wheelchair. -
Page 26: Check Upholstery
Check upholstery Check upholstery at least once a month. Inspect for rips, tears and worn spots. Ensure hook and loop fastener is firmly attached to metal surfaces and backs of pads. WARNING: Worn or torn upholstery must be replaced immediately. Clean upholstery and plastic components Clean upholstery and plastic components at least once a month with a mild soap and water solution. -
Page 27: Troubleshooting
10 TROUBLESHOOTING Continual use of your PureTilt necessitates maintenance, especially if the factory-set adjustments have been altered. The following troubleshooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your GF authorized distributor for assistance. -
Page 28: Specifications
11 SPECIFICATIONS Info: Dimensional tolerance: angles ± 2°, lengths ± .5" (1.3 cm) MODEL NAME / NUMBER PT3000-18 Overall length upright 39.8" (101.0 cm) reclined 50" (127.0 cm) Overall width 28.5" (72.4 cm) Storage length (back folded) 39.5" (100.3 cm) Storage height with seat 36"... -
Page 29: Disposal
12 DISPOSAL Dispose of wheelchair in accordance with local regulations. www.grahamfield.com EJ_PT3000-18-INS-LAB-RevC22... -
Page 30: Limited Warranty
13 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (GF) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 31: Index
14 INDEX Adjustments 17 Maintenance 24 Anti-tippers, check 25 Maintenance, check at least every month 25 Anti-tippers, installing and operating 9 Maintenance, check at least every six months 26 Arm locking latches, check 26 Maintenance, check at least every three months 26 Arms, check 26 Maintenance, check at least every week 25 Arms, rotating 15... - Page 32 +1 770.368.4700 Manufactured By: GF Health Products, Inc. Information contained herein is subject to change without notice. One Graham-Field Way, Atlanta, GA 30340 The most current and complete product information can be found on our website. www.grahamfield.com © 2021, GF Health Products, Inc. All Rights Reserved. EJ_PT3000-18-INS-LAB-RevC22 Everest &...
