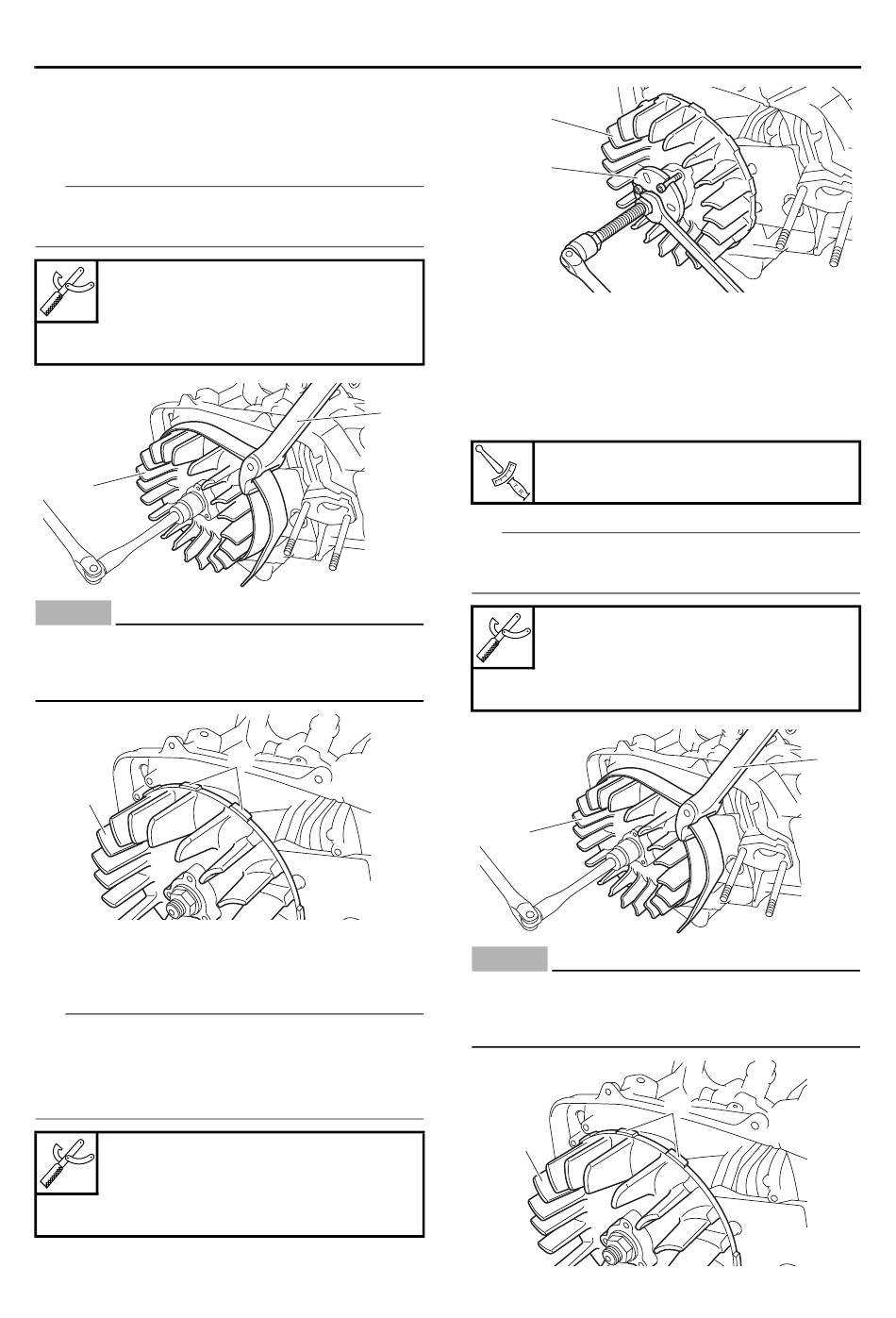

REMOVING THE FLYWHEEL

1. Remove:
• Flywheel nut
• Washer
TIP
Hold the flywheel "1" with the rotor holding tool
"2" while loosening the flywheel nut.
Rotor holding tool
90890-04166
Rotor holding tool
YM-04166
1
NOTICE
Make sure that the end of rotor holding tool
handle does not contact the fins "a" or pro-
jections "b" on the flywheel.
a
2. Remove:
• Flywheel "1"
• Woodruff key
TIP
• Use a flywheel puller set "2" to separate the fly-
wheel and crankshaft.
• Make sure the flywheel puller is centered over
the flywheel.
Flywheel puller set
90890-01468
Heavy duty puller
YU-33270-B
2
b
1
2

INSTALLING THE FLYWHEEL

1. Install:
• Flywheel "1"
• Washer
• Flywheel nut
Flywheel nut
120 N·m (12 kgf·m, 89 lb·ft)
TIP
Hold the flywheel with the rotor holding tool "2"
while tightening the flywheel nut.
Rotor holding tool
90890-04166
Rotor holding tool
YM-04166
1
NOTICE
Make sure that the end of rotor holding tool
handle does not contact the fins "a" or pro-
jections "b" on the flywheel.
a
5-22
FLYWHEEL
2
b
