SX40 User Manual
10
1 Power Button
2 Status LED
3 USB-C Connector
4 CCU and Charger Connector
5 Device Holder

TrapJumper Camera

The TrapJumper Camera is illustrated in Figure 4. It is a sealed unit, rated to a depth of
3 metres in standing water. The camera provides a self-levelling picture with integrated LED
illumination and a magnetic sonde emitting an oscillating magnetic field with a choice of two
frequencies, 512Hz or 33kHz. The camera is designed to enter pipelines from 50mm
diameter up to 150mm diameter for the express purpose of undertaking a visual survey. The
sonde enables the camera head to be located inside the pipeline under survey using a
detection device to a depth up of 4 meters in optimal conditions. This allows the surveying
engineer to pin-point the areas of the pipeline needing repair, significantly reducing the
amount of effort required to carry out the repair by minimising, for example, the area
needed to be excavated to locate a pipeline fault.
Version 1.0
29 June 2022

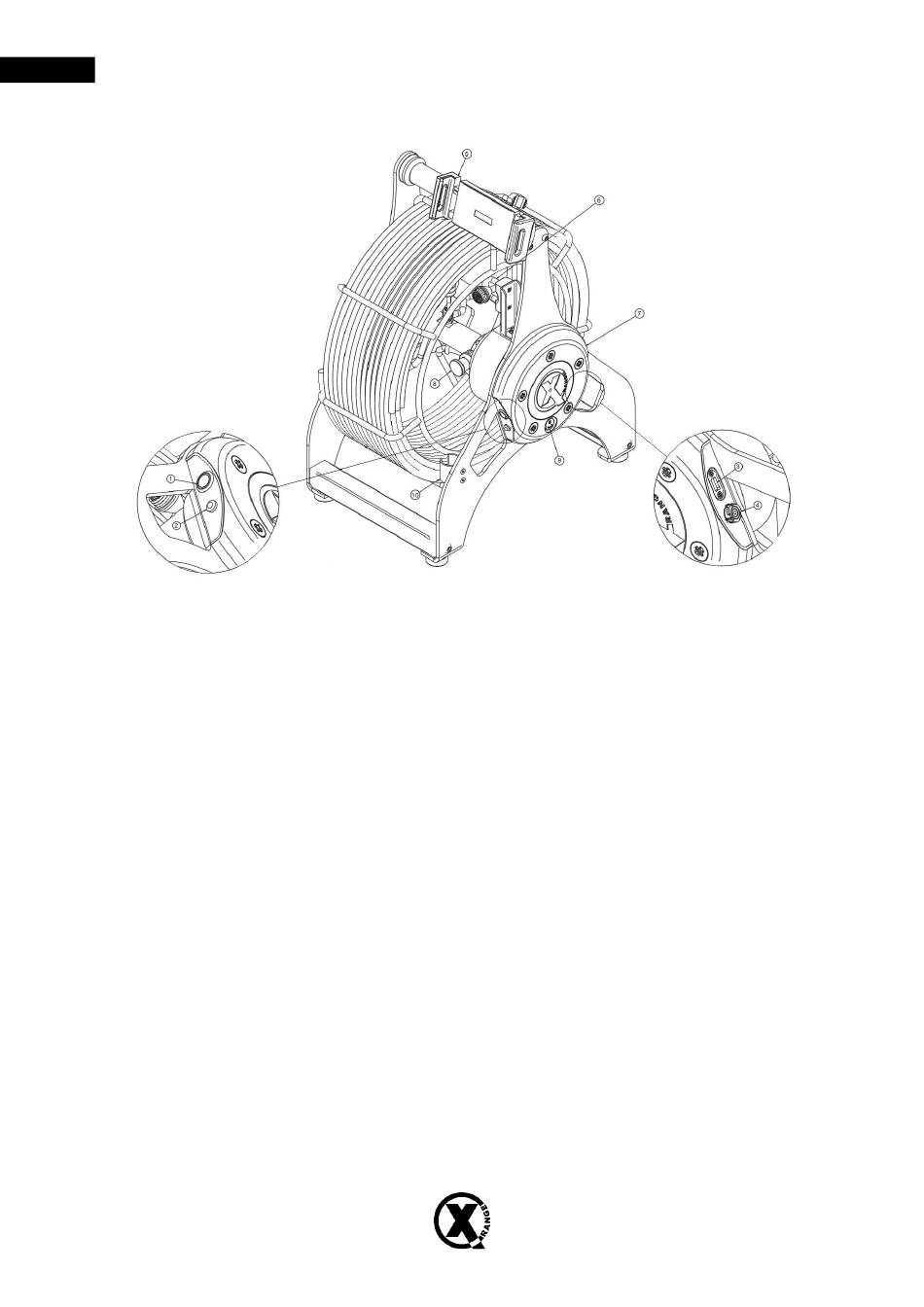

Figure 3: X40 System Components

6 Rod Guide
7 Connector Side Plate
8 Coiler Brake
9 Battery Breather
10 Camera Clip
