TEMPUR ERGO PROSMART
A hex key is included with the accessory kit to complete installation.
Headboard
Bracket (2)

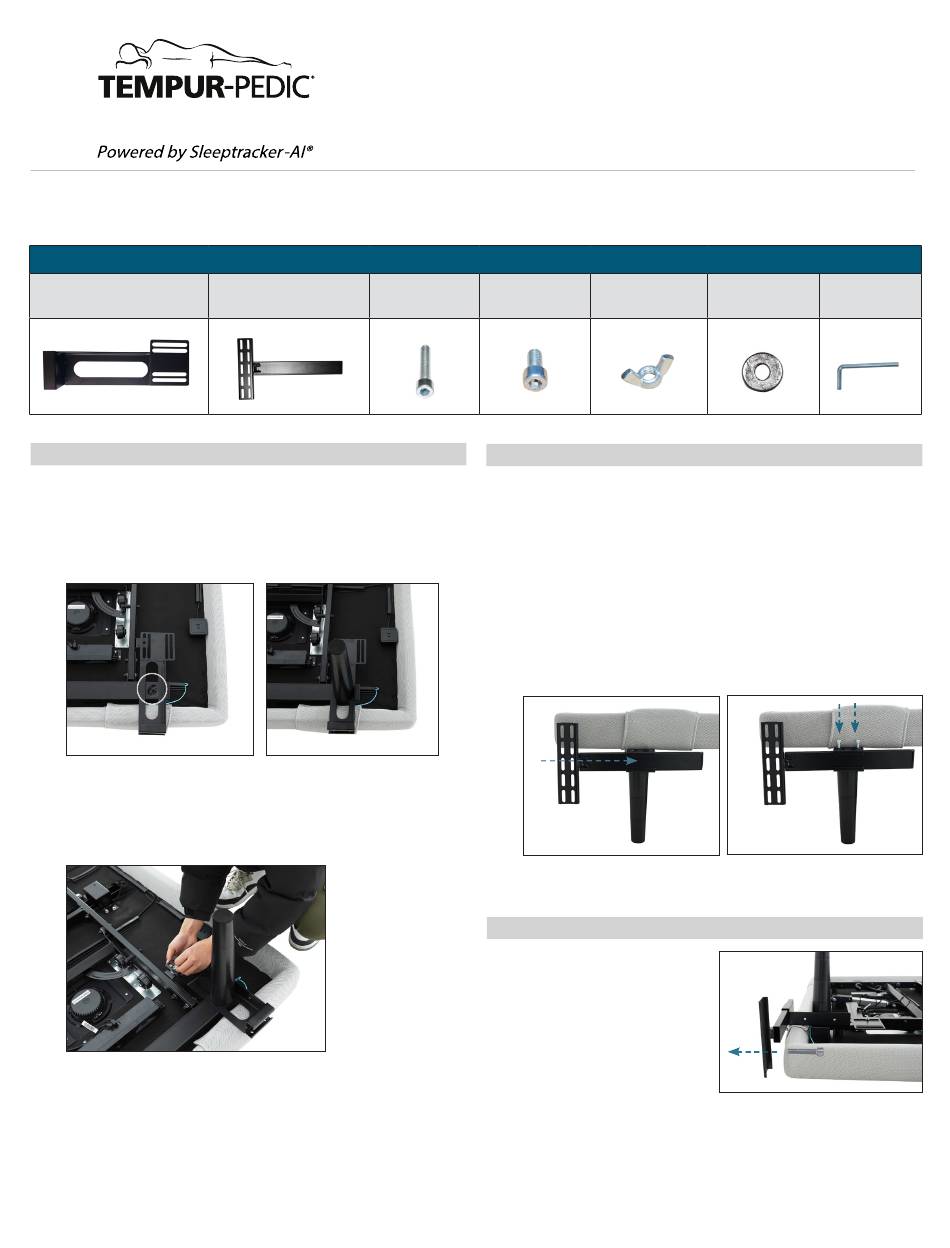

STEP 1 : Attach the Headboard Bracket
a. Align the hole in the bracket to the brass sleeve
into which the leg threads. Hold the bracket in
place and screw the leg into the base until it is
snug. DO NOT OVERTIGHTEN. Too force may
cause the leg to spin freely.
b. Align the tab with the hole in the frame (located
towards the foot of the base) and use a short bolt
and wingnut to secure the bracket. Make sure the
bolt is tight.
AIR
TM
To install the headboard bracket, place the base on it's side.

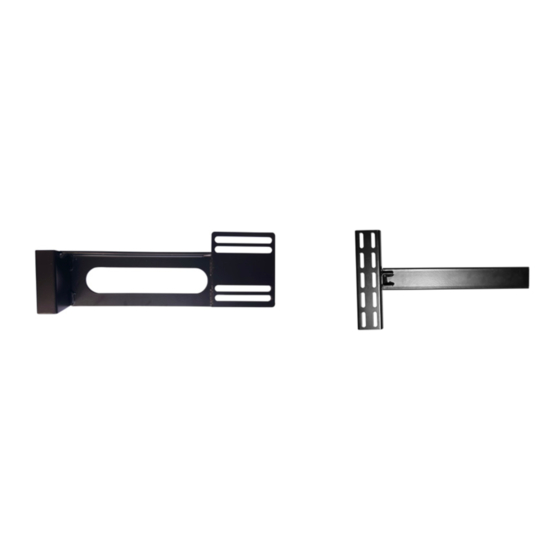

HEADBOARD BRACKET COMPONENTS

Long
T-Bracket (2)
Bolts (8)
Headboard Bracket
Installation Guide
Short
Wingnuts (2)
Bolts (6)
STEP 2 : Attach the T-Bracket
a. Measure the distance between the mounting
holes on the headboard and install the T-Bracket
to accommodate the headboard.
b. To install the T-Bracket, slide the T-Bracket
through the end of the headboard bracket. Align
the flat side of the T-Bracket plate to the mount-
ing holes on the headboard.
c. Secure T-Bracket in place by inserting two short
screws through top of bracket. Use hex key to
tighten screws.

STEP 3: Connect your Headboard

Connect your headboard
to the attachment plate
using the remaining long
screws or hardware that
came with your head-
board. The heads of the
bolts will face outward.
Use hex key to tighten
bolts.
Washers (2)
Hex Key (1)
V001_3/2023
