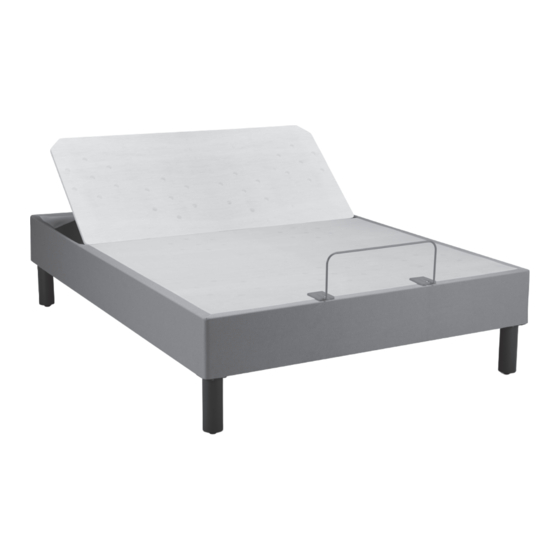

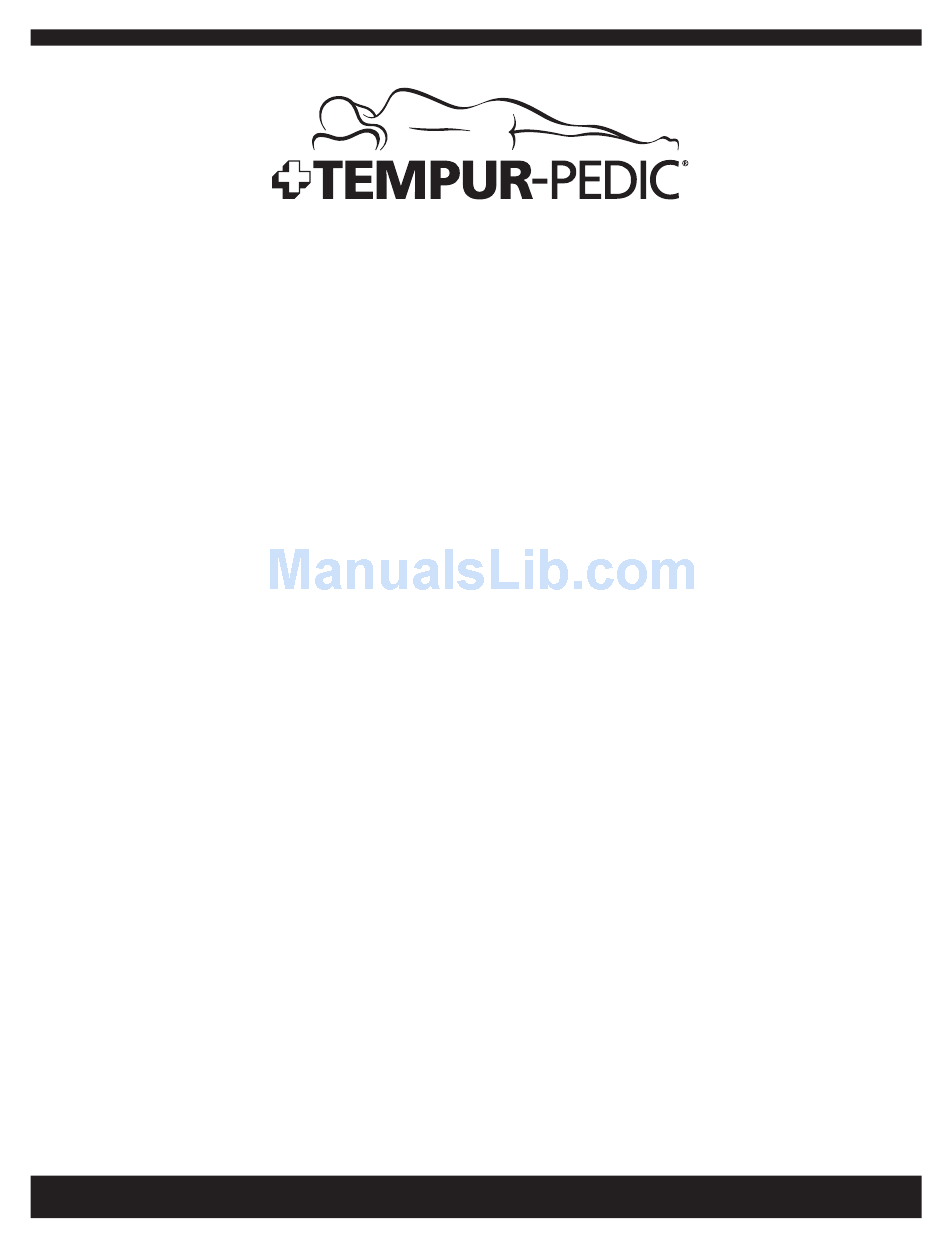

- Page 1 TEMPUR‑Up Foundation ™ Complete Reference Guide Patents pending TUF-100-04 2014/02/01 © 2014 Tempur-Pedic Management, LLC. All Rights Reserved.
-
Page 2: Table Of Contents
TEMPUR‑Up Foundation ™ Table of Contents SAFETY PRECAUTIONS ....................3 COMMONLY ASKED QUESTIONS AND ANSWERS ............. 7 SPECIFICATIONS ......................8 INSTALLATION Installation Instructions ................... 9 Pre-Delivery Procedure ..................10 Delivery Procedure ....................11 Joining Two Foundations ..................13 OPERATION Wired Remote Control Features ................14 Operating Instructions .................... -
Page 3: Safety Precautions
Safety Precautions Safety Precautions WARNING! WARNING! IMPORTANT SAFETY To reduce the risk of burns, fire, electric shock, or injury to persons: INSTRUCTIONS. • Unplug from outlet before putting on or taking off parts. • Close supervision is necessary when this furnishing is PLEASE READ THESE used by, or near children, invalids, or disabled persons. - Page 4 Any Servicing a double-insulated product requires extreme repair or replacement of TEMPUR-Up Foundation parts care and knowledge of the system, and is to be done must be performed by an authorized service person.
- Page 5 USER-SERVICEABLE PARTS TEMPUR-Up Foundation. In the event the technician is unable to perform service due to lack of accessibility, the This product is specifically designed to be service call will be billed to the purchaser and the service maintenance-free for the user.
- Page 6 NOTE: Exceeding the recommended weight restrictions could damage your TEMPUR‑Up Foundation and void your warranty. For best performance, you should enter and exit the TEMPUR-Up Foundation while it is in the flat or fully lowered position. CUSTOMER SERVICE: 1–800–887–4321...
-
Page 7: Commonly Asked Questions And Answers
“freestanding” beds. We always recommend you measure the inside dimensions of the assembled bed to be sure the TEMPUR-Up Foundation will fit. Please refer to the specifications on page 8 for dimensions of the foundation. One of our aftermarket riser leg sets may be required in some cases. -
Page 8: Specifications
TEMPUR‑Up Foundation ™ Bed Type A. Foundation B. Foundation Weight Width Length Specifications Twin Long 37 1/2" 79" 119 lb Double 53 1/4" 75" 139 lb Queen 58 1/4" 79" 151 lb 9"* * Brackets are required to attach legs or casters and are available as aftermarket purchase. -
Page 9: Installation
Installation Installation Instructions *Attached to foundation for shipping. Appearance of some parts may differ from photos. Before discarding any packing materials, check the TEMPUR-Up Foundation carton and verify the ™ following items in the parts list are included: PARTS LIST A. -
Page 10: Pre-Delivery Procedure
TEMPUR‑Up Foundation ™ Pre-Delivery Procedure STEP 1 STEP 6 Lift carton top off box to reveal the bottom of the Once the warehouse test is successful and complete: foundation. • Unplug the power extension cord • Place the lid back on the outer carton and secure STEP 2 for delivery Using a power extension cord to reach the... -
Page 11: Delivery Procedure
Carefully take the foundation in the carton to the bedroom and place next to where the customer wants it set up. STEP 2 Carefully lift the TEMPUR-Up Foundation out of the shipping carton, keeping the unit topside down. For safety reasons, this should be performed by two people. - Page 12 TEMPUR‑Up Foundation ™ STEP 7 STEP 10C If this delivery involves dual foundations and/or Install Mattress Retainer Bar (C) and install Retainer Bar split mattresses, see instructions for joining two Plate (D). foundations on page 15. STEP 8 Carefully flip the TEMPUR-Up Foundation(s) over to ™...
-
Page 13: Joining Two Foundations
Installation Instructions For Joining Two Foundations ONE WIRED REMOTE CONTROL AND TWO TEMPUR-UP STEP 5 ™ FOUNDATIONS Plug in the “B” output of the Y-Cable into Frame B control port. Assembling Split/Dual Foundations (Frame A and Frame B) to be used together as a single King system. NOTE: The use of “Frame A”... -
Page 14: Wired Remote Control Features
TEMPUR‑Up Foundation ™ Wired Remote Control Features READ ADVISORY INFORMATION IN THE SAFETY PRECAUTIONS SECTION OF THIS GUIDE CAREFULLY BEFORE USING THIS PRODUCT. THE POTENTIAL FOR ELECTRIC SHOCK EXISTS IF ELECTRICAL COMPONENTS ARE NOT INSTALLED OR OPERATED PROPERLY. 1. HEAD UP (HU) 2. -
Page 15: Operating Instructions
Operation Operating Instructions To ensure safe operation of the system, please observe the following safety instructions: CAUTION: Keep children away from electrically adjustable beds and control units. There is risk of injury and electric shock. CAUTION: Unplug the power cord during a thunderstorm or if you do not intend to use the system for an extended period of time. -
Page 16: Emergency Power-Down
TEMPUR‑Up Foundation ™ Special Functions EMERGENCY POWER-DOWN CHANGE FROM A TANDEM SYSTEM TO A SINGLE SYSTEM The power-down button on the power supply unit gives the user the ability to move the bed to a flat position STEP 1 during power failure. Disconnect both foundations from wall outlet. -
Page 17: Troubleshooting
• Your surge protection device and/or electrical outlet may be defective. Test the outlet by plugging in another working appliance. • The TEMPUR-Up Foundation may be obstructed. Elevate and Head section will elevate but will not check for an obstruction. Remove the obstruction. - Page 18 Manufacture Date : Serial Number: Write Serial Number here for future reference. FOR TECHNICAL SUPPORT OR SERVICE, QUESTIONS ABOUT YOUR TEMPUR-PEDIC MATTRESS, ® OR TO ORDER TEMPUR-UP FOUNDATION ACCESSORIES: ™ 1-800-887-4321 OR VISIT WWW.TEMPURPEDIC.CA CUSTOMER SERVICE: 1–800–887–4321 8934b-TEM v2...
