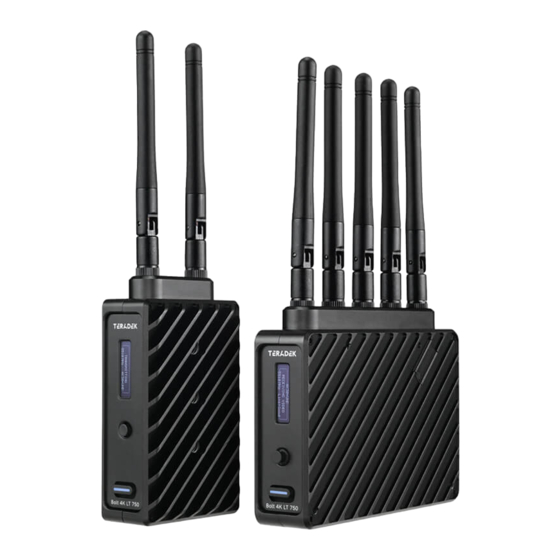

Teradek Bolt 4K User Manual
  1. Manuals
  2. Brands
  3. Teradek Manuals
  4. Extender
  5. BOLT 4K Series
  6. User manual

Teradek Bolt 4K User Manual

Hide thumbs Also See for Bolt 4K:
Table of Contents

Advertisement

Quick Links

B
4K
OLT
© 2023 Teradek, LLC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bolt 4K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teradek Bolt 4K

Summary of Contents for Teradek Bolt 4K

  • Page 1 © 2023 Teradek, LLC. All rights reserved.

  • Page 2: Table Of Contents

    Table of Contents Quick Start Guides Bolt 4K LT-HDMI Quick Start Guide ...................... 4 Bolt 4K LT Camera Control Quick Start Guide ................... 17 Bolt 4K Camera Control Quick Start Guide ..................30 Physical Properties Bolt 4K System ............................ 42 Bolt 4K LT System ..........................
  • Page 3 Bolt Panel Antenna v.4 ........................95 Bolt 4K LT-HDMI System ........................96 Troubleshooting/FAQ Troubleshooting/FAQ .......................... 99 How to Upgrade your Bolt 4K LT HDMI to include the new 6GHz Mode ........102 Antenna Maintenance Bolt Panel Antenna V.4 ........................104...

  • Page 4: Bolt 4K Lt-Hdmi Quick Start Guide

    Bolt 4K LT-HDMI Quick Start Guide Bolt 4K LT HDMI is the newest entry-level wireless video system to be introduced to the Bolt 4K family. Bolt 4K LT HDMI devices are fully compatible with all other Bolt 4K devices, are capable of transmitting 10-bit, 4:2:2 HDR video at a range of up to 750 feet line-of-sight over the unlicensed 5GHz band, and can multicast to 6 receivers simultaneously.
  • Page 5 Teradek User Manual TABLE OF CONTENTS...
  • Page 6 Teradek User Manual 1. PHYSICAL PROPERTIES 2. POWER AND CONNECT 3. POWER CONNECTOR/PIN OUT 4. CUSTOM/3RD PARTY POWER CABLES 5. PAIRING 6. MOUNTING 7. TRANSMITTER MENU 8. RECEIVER MENU 9. BOLT APP 10. OTHER RESOURCES PHYSICAL PROPERTIES Bolt 4K Page 6...
  • Page 7 Teradek User Manual POWER AND CONNECT 1. Connect the output from your video source to the HDMI input (E) on the Bolt transmitter. Connect the HDMI output (D) from the Bolt receiver to the video input on your monitor. 2. Attach two 2dBi antennas to the transmitter and five antennas to the receiver via the threaded RP- SMA connectors (A).
  • Page 8 Teradek User Manual 4. Move the power switches on both the transmitter and receiver (I) to the ON position. Video appears within a few seconds. POWER CONNECTOR/PIN-OUT Bolt devices use a locking 2-pin power connector similar to the 0B 302 series LEMO connector.
  • Page 9 Teradek User Manual CUSTOM/3RD PARTY POWER CABLES • Test the power cable polarity with ONLY the power cable connected to Bolt. Do not connect video cables. • Check the power cable for shorts and proper grounding. CAUTION:  Using a reverse polarity or improperly−constructed power cable can damage the product and is not covered under warranty.
  • Page 10 Pairing is successful. MOUNTING Bolt 4K devices have a 1/4”-20 threaded hole (additional 3/8”-16 threaded hole on the receiver) on the bottom for mounting the included light stand adapter or any other mounting accessory. WITHOUT DUAL MOUNT Bolt 4K/Bolt 4K LT devices have a 1/4”-20 threaded hole (additional 3/8”-16 threaded hole on the...
  • Page 11 Launch, then navigate through the menu with the Menu joystick (H), or from the Bolt App. • Wireless Settings ◦ Enable Fixed Frequency - Fixed Frequency Mode allows your Bolt 4K transmitter to designate a specific non-DFS channel within the selected wireless region for use, providing a stronger connection in difficult environments.
  • Page 12 • Wireless Settings - Configure the transmitter’s wireless settings. ◦ Enable Fixed Frequency - Fixed Frequency Mode allows your Bolt 4K receiver to designate a specific non-DFS channel within the selected wireless region for use, providing a stronger connection in difficult environments.
  • Page 13 • Firmware Versions - Displays the current firmware versions for all device components. BOLT APP Use the Bolt App to remotely manage and monitor every parameter of Bolt 4K including pairing, frequency selection, and 3D LUTs. CONNECT VIA BLUETOOTH 1.
  • Page 14 Teradek User Manual TRANSMITTER STATUS DISPLAY • Settings (Descriptions listed in Transmitter Menu section) - Tap the settings button on the top right corner of the screen to customize the transmitter’s various settings. • Status - Displays the current status of: ◦...
  • Page 15 • Range Analyzer - Displays the transmission distance between the transmitter and receiver. • Status - Displays the current status of: ◦ Network Status ◦ Current Frequency ◦ Range ◦ Quality ◦ Bandwidth ◦ OSD name OTHER RESOURCES • USER GUIDE/ARTICLES: https://guide.teradek.com/m/103512 Bolt 4K Page 15...
  • Page 16 Teradek User Manual • FIRMWARE UPGRADE AND PDF OF BOLT 4K QUICK START GUIDE: https://teradek.com/pages/ downloads#bolt4k Bolt 4K Page 16...

  • Page 17: Bolt 4K Lt Camera Control Quick Start Guide

    Teradek User Manual Bolt 4K LT Camera Control Quick Start Guide Owners of SmallHD Smart 7 monitors and Teradek Bolt 4K LT Transmitters and Receivers can now unlock Wireless Camera Control. Teradek’s Wireless Camera Control Starter Kit works with your products to create a cable-free setup, allowing you to control a variety of cameras at up to 5,000 feet.
  • Page 18 Teradek User Manual TABLE OF CONTENTS...
  • Page 19 Teradek User Manual PHYSICAL PROPERTIES WHAT'S INCLUDED ACTIVATE CAMERA CONTROL LICENSE INSTALL LICENSE CONNECT AND POWER (TX) ENABLE TX CAMERA CONTROL CONNECT AND POWER (RX) ENABLE RX CAMERA CONTROL OTHER RESOURCES PHYSICAL PROPERTIES Bolt 4K Page 19...
  • Page 20 Teradek User Manual WHAT'S INCLUDED 1x Bolt 4K LT TX USB Adapter 1x Bolt 4K LT RX USB Adapter 2x Smart 7 Dual USB Hub 2x Screw Socket Cap Black, 1/4-20 x 5/8in 2x Screw Socket Head Low Profile 1/4-20 x 5/8in...
  • Page 21 Teradek User Manual ACTIVATE CAMERA CONTROL LICENSE Before you proceed, you must first purchase a Camera Control license for your camera from smallHD.com, then install it on both monitors. 1. Open a web browser and go to activate.smallhd.com. 2. Enter the Activation Code you received with the purchase of your SmallHD Camera Control software in the Activate Camera Control section, then click Go (see image).
  • Page 22 Teradek User Manual 4. Return to the activation website and enter your Monitor Token. You will be prompted to make sure the token is entered correctly. Click Yes to continue. 5. Enter your monitor’s Serial Number in the field that appears and click Submit. Your monitor’s serial is located alongside a barcode on the input/output port area or on the battery plate.
  • Page 23 Teradek User Manual 2. To add a Camera Control page, exit the Settings menu and swipe left until the “New Blank Page” screen appears, then select Camera Control from the apps list on the right (see image). Bolt 4K Page 23...
  • Page 24 CONNECT AND POWER (TX) 1. Attach the TX adapter to the Bolt 4K LT transmitter, then secure the adapter to the unit using the included low profile socket screw (see image). Ensure the mounting hole and micro USB align with their corresponding terminals.
  • Page 25 1. Swipe right on the Smart7 monitor until the Settings screen appears, then confirm that TERADEK BOLT 4K is listed under the feed list on the left (see image). This indicates that the transmitter is communicating with the monitor. If TERADEK BOLT 4K is not listed, remove and reconnect the hubs.
  • Page 26 Teradek User Manual 4. Select your camera from the list, then tap CONNECT (see image). Video appears within seconds. Bolt 4K Page 26...
  • Page 27 CONNECT AND POWER (RX) 1. Attach a Camera Control USB adapter to the Bolt 4K LT receiver, then secure the adapter to the unit using the included low profile socket screw (see image). Ensure the mounting hole and micro USB align with their corresponding terminals.
  • Page 28 3. Connect either the SDI or HDMI output from the receiver to the video input on your monitor. 4. Connect the 5pin lemo cable from the Bolt 4K RX USB adapter to the Smart7 USB Dual hub. 5. Connect power to the receiver and monitor, then turn the power on.
  • Page 29 Teradek User Manual OTHER RESOURCES • SUPPORT ARTICLES: https://support.teradek.com Bolt 4K Page 29...

  • Page 30: Bolt 4K Camera Control Quick Start Guide

    Teradek User Manual Bolt 4K Camera Control Quick Start Guide Owners of SmallHD Smart 7 monitors and Teradek Bolt 4K Transmitters and Receivers can now unlock Wireless Camera Control. Teradek’s Wireless Camera Control Starter Kit works with your products to create a cable-free setup, allowing you to control a variety of cameras at up to 5,000 feet.
  • Page 31 Teradek User Manual TABLE OF CONTENTS...

  • Page 32: Physical Properties

    Teradek User Manual PHYSICAL PROPERTIES WHAT'S INCLUDED ACTIVATE CAMERA CONTROL LICENSE INSTALL LICENSE CONNECT AND POWER (TX) ENABLE TX CAMERA CONTROL CONNECT AND POWER (RX) ENABLE RX CAMERA CONTROL OTHER RESOURCES PHYSICAL PROPERTIES Bolt 4K Page 32...
  • Page 33 Teradek User Manual WHAT'S INCLUDED 1x Bolt 4K TX USB Adapter 1x Bolt 4K RX USB Adapter 2x Smart 7 Dual USB Hub 2x Screw Socket Cap Black, 1/4-20 x 5/8in 2x Screw Socket Head Low Profile 1/4-20 x 5/8in...
  • Page 34 Teradek User Manual ACTIVATE CAMERA CONTROL LICENSE Before you proceed, you must first purchase a Camera Control license for your camera from smallHD.com, then install it on both monitors. 1. Open a web browser and go to activate.smallhd.com. 2. Enter the Activation Code you received with the purchase of your SmallHD Camera Control software in the Activate Camera Control section, then click Go (see image).
  • Page 35 Teradek User Manual 4. Return to the activation website and enter your Monitor Token. You will be prompted to make sure the token is entered correctly. Click Yes to continue. 5. Enter your monitor’s Serial Number in the field that appears and click Submit. Your monitor’s serial is located alongside a barcode on the input/output port area or on the battery plate.
  • Page 36 Teradek User Manual 2. To add a Camera Control page, exit the Settings menu and swipe left until the “New Blank Page” screen appears, then select Camera Control from the apps list on the right (see image). Bolt 4K Page 36...
  • Page 37 CONNECT AND POWER (TX) 1. Attach the TX adapter to the Bolt 4K transmitter, then secure the adapter to the unit using the included low profile socket screw (see image). Ensure the mounting hole and micro USB align with their corresponding terminals.
  • Page 38 1. Swipe right on the Smart7 monitor until the Settings screen appears, then confirm that TERADEK BOLT 4K is listed under the feed list on the left (see image). This indicates that the transmitter is communicating with the monitor. If TERADEK BOLT 4K is not listed, remove and reconnect the hubs.
  • Page 39 Teradek User Manual 4. Select your camera from the list, then tap CONNECT (see image). Video appears within seconds. Bolt 4K Page 39...
  • Page 40 CONNECT AND POWER (RX) 1. Attach a Camera Control USB adapter to the Bolt 4K receiver, then secure the adapter to the unit using the included low profile socket screw (see image). Ensure the mounting hole and micro USB align with their corresponding terminals.
  • Page 41 3. Connect either the SDI or HDMI output from the receiver to the video input on your monitor. 4. Connect the 5pin lemo cable from the Bolt 4K RX USB adapter to the Smart7 USB Dual hub. 5. Connect power to the receiver and monitor, then turn the power on.

  • Page 42: Bolt 4K System

    Teradek User Manual OTHER RESOURCES • SUPPORT ARTICLES: https://support.teradek.com Bolt 4K System Bolt 4K Page 42...
  • Page 43 Teradek User Manual Receiver Antennas This image illustrates the order of the receiver's antennas. The numbers below correspond to the antenna numbers in Bolt App's per-antenna SNR (Signal-to-noise ratio) graph, which can be used to troubleshoot signal quality issues. Antenna 1 is closest to the video outputs, while Antenna 5 is closest to the OLED screen.

  • Page 44: Bolt 4K Lt System

    Teradek User Manual Bolt 4K LT System Receiver Antennas This image illustrates the order of the receiver's antennas. The numbers below correspond to the antenna numbers in Bolt App's per-antenna SNR (Signal-to-noise ratio) graph, which can be used to troubleshoot signal quality issues. Antenna 1 is closest to the video outputs, while Antenna 5 is closest to the OLED screen.

  • Page 45: Bolt 4K Monitor Module (Tx/Rx)

    Teradek User Manual Bolt 4K Monitor Module (TX/RX) Bolt 4K Page 45...

  • Page 46: Bolt Panel Antenna V.4

    Teradek User Manual Bolt Panel Antenna v.4 OMNIDIRECTIONAL ANTENNA  The included omni-directional antenna (A) can receive a signal from your transmitter even when it’s placed behind the Panel Antenna, and supports a wider spectrum (4.9-7.3 GHz). ANTENNA CONFIGURATION ...

  • Page 47: Bolt 4K Lt-Hdmi

    Teradek User Manual Bolt 4K LT-HDMI Receiver Antennas This image illustrates the order of the receiver's antennas. The numbers below correspond to the antenna numbers in Bolt App's per-antenna SNR (Signal-to-noise ratio) graph, which can be used to troubleshoot signal quality issues. Antenna 1 is closest to the video outputs, while Antenna 5 is closest to the OLED screen.

  • Page 48: Power And Connect (Bolt 4K/Bolt 4K Lt)

    • Bolt 4K transmitters - Attach two 2dBi antennas to the transmitter’s two center connectors and the two “H” antennas to the left and right connectors. • Bolt 4K LT transmitters - Attach one "H" antenna on the connector labeled H(closest to the SDI connectors), and one 2dBi antenna to the opposite connector •...

  • Page 49: Power And Connect (Bolt 4K Monitor Module)

    Power and Connect (Bolt 4K Monitor Module) 1. Remove the battery plate from the back. 2. TX Module - Detach the cover plate from the back of the Bolt 4K Monitor Module to expose the JST connector. RX Module - Remove the battery plate from the back of the Bolt 4K Monitor Module to expose the two top mounting holes.
  • Page 50 Teradek User Manual Bolt 4K Page 50...

  • Page 51: Power Cables

    Teradek User Manual Power Cables 2-Pin Power Connector Bolt 4K devices use a locking 2-pin power connector similar to the 0B 302 series LEMO connector. * Pin 1 is closest to the red dot on the connector. Input Voltage: 6-28V DC...

  • Page 52: Wireless Configuration

    TX unit. Wireless Configuration Bolt 4K contains several wireless configuration options that allow the system to work at its best in different environments. The system is designed to work adequately using its default, automatic settings, but they may not be ideal for all situations. This section details all available wireless configuration options for the transmitter and receiver.
  • Page 53 Bolt Panel Antenna while in Broadcast Mode. NOTE: Bolt 4K XT/LT 750 and 1500 receivers will not link to a Bolt 4K XT/LT MAX transmitter in Broadcast Mode, even if they were previously paired. You must use a Bolt 4K MAX receiver. Otherwise, the receiver's OLED will display Broadcast Not Supported.
  • Page 54 • Better Quality Mode - (Two fine antennas) Maintains higher signal quality but reduces the maximum range. • Best Quality Mode (Bolt 4K XT only) - (Three fine antennas) Ideal for complex, high contrast scenes that require the highest possible quality.

  • Page 55: Pairing And Unpairing

    Teradek User Manual Pairing and Unpairing Bolt 4K devices purchased as a set (TX and RX) are paired by default, requiring no additional configuration. Bolt 4K devices purchased separately need to be paired using the device's front panel (OLED) menu, Bolt Manager, or the Bolt App. You will need to use either Bolt Manager or the Bolt App to pair your transmitter with multiple receivers.
  • Page 56 1. Swipe right on the monitor’s touchscreen, then tap on the Settings option once it appears. 2. Scroll back up and tap to select the TERADEK BOLT 4K option, then tap Pair new receiver. 3. Enable Pairing on the Bolt 4K receiver(s)or by selecting Pair on the front panel menu. The Monitor Module will begin scanning for receivers to automatically pair with.
  • Page 57 2. Open Bolt Manager, select the Pairing tab, then tap the Unpair All button. Switch TX (RX only) Bolt 4K receivers can pair up to four transmitters simultaneously. Switch TX allows you to quickly switch from one paired transmitter's camera feed to another paired transmitter. This feature is especially useful in multi-camera situations when you need to switch to a different camera's view mid- shoot, without having to perform the pairing process every time.

  • Page 58: Video Settings Configuration

    • Off after 10 sec • No Burnin Prevention HDMI/SDI Output (Bolt 4K Receiver) You can choose to match the video source’s resolution (Same As Input) or choose from the resolutions list. If using the receiver with a recorder or monitor that is sensitive to video signal changes, select Continuous Output to ensure the signal stays constant even if the link is interrupted.
  • Page 59 ◦ 480i (NTSC) ◦ 576i (PAL) 3D LUT Settings (Bolt 4K/Bolt 4K LT Receiver) The 3D LUT settings menu contains specific looks that can be applied to your video output that either match or simulate how the video will appear after editing, along with options for how they are overlayed on your video output (Full or Split-screen).

  • Page 60: Tools

    Teradek User Manual Tools SDI EYE PATTERN (TX) The SDI Eye Pattern provides a graphical display of the SDI signal coming from the camera to the transmitter, and is useful in determining the amount of interference present, or if the SDI cable is damaged.
  • Page 61 Teradek User Manual Frequencies are represented by bars; the higher the bar, the more congested that frequency is. Bars without a dot (1) indicate the frequency is not as saturated and can be used. Bars with a dot (2) indicate the frequency is too saturated to connect to.
  • Page 62 Teradek User Manual 3. Place the TX and RX at least 5 feet apart from each other. 4. Power on both units and allow them to link. The OLED will display one of the following messages: 1. NO VIDEO - No video source is connected.

  • Page 63: Advanced Settings

    HDMI (RX only) Bolt 4K supports all HDMI output modes. You can select from one of the following options: • Auto • RGB 8bit •...
  • Page 64 • Use Bluetooth PIN - Enables the use of a PIN for authentication when using the Bolt App. • Change PIN - Press the Menu joystick towards the right to change the Bluetooth PIN NOTE: Bluetooth is disabled by default. To configure your Bolt 4K devices via the Bolt App, you must first enable Bluetooth.

  • Page 65: Info

    Teradek User Manual Info DEVICE INFO Reset all configurable options to their factory defaults. FIRMWARE VERSIONS Displays the current firmware versions for all device components. REGULATORY Displays all compliance certifications relating to radio frequencies used by the TX and RX to communicate.

  • Page 66: Bolt Manager

    Teradek User Manual Bolt Manager With Bolt Manager, you can configure all of your Bolt 4K devices at once. Available as software for Windows and Mac, Bolt Manager allows you to pair multiple receivers to your transmitter, select frequencies, load 3D LUTs, and perform firmware upgrades.
  • Page 67 Color processing allows users to apply 3D LUTs directly to the receiver’s video output or to add, remove, and modify up to 16 LUTs stored in Bolt 4K’s memory. Live LUT - Click Load and browse for a 3D LUT file to apply to the video output. The following file formats are supported: •...
  • Page 68 Teradek releases firmware updates periodically that add new features, improve performance, and fix vulnerabilities. To update Bolt 4K, you’ll need to load a firmware package into Bolt Manager. • Load from Web - If you have an Internet connection, click Load from Web to download the latest firmware package from Teradek’s servers.

  • Page 69: Bolt App

    The Advanced screen also allows users to select which components to upgrade. Bolt App Use the Bolt App to remotely manage and monitor every parameter of Bolt 4K including pairing, frequency selection, and 3D LUTs. Connect via Bluetooth 1.
  • Page 70 Teradek User Manual ▪ Spectrum Analyzer - Detects congestion in the area and determines which frequencies are available to use. Each bar represents a frequency, and the height represents the amount of congestion in that frequency; the higher the bar, the more congested that frequency is. Make sure to always select the shortest, least congested bar.

  • Page 71: Antenna Orientation

    VERTICAL AND HORIZONTAL ANTENNAS Vertical (V) antennas are included as a standard item with your Bolt 4K, offering good performance in a wide variety of short-to-medium range situations when quick setup and flexibility is key. V antennas are ideal for achieving diversity indoors.
  • Page 72 BOLT PANEL ANTENNA V.4 If using the Bolt Panel Antenna V.4 with your Bolt 4K/4K LT 1500 or MAX receiver, you must connect the five RP-SMA connectors from the receiver to the back of the antenna (see below for connector...
  • Page 73 Teradek User Manual placement), and position the antenna so that the front (with the Teradek logo) has a clear line of sight to the transmitter. The Bolt Panel Antenna includes an omnidirectional antenna with a receive pattern that varies based on its distance from the transmitter.

  • Page 74: Device Placement

    With Dual Mount Depending on the model, Bolt 4K/4K LT devices are equipped with a dual mount battery plate that allows you to attach your device to either the back of a camera, monitor, or Bolt Panel Antenna.

  • Page 75: Frequencies By Region

    Teradek User Manual Frequencies by Region NOTE: Pairing the TX and RX is required after a different region is selected. Bolt 4K Page 75...

  • Page 76: Bolt 4K U-Nii-5 (6Ghz) Support By Region

    As different regions approve U-NII-5 for unlicensed operation, Teradek will release firmware updates to enable the additional frequencies. Note that we sometimes refer to U- NII-5 frequencies as “6GHz” to make it simpler to understand Bolt 4K (5GHz only) vs. Bolt 4K operation (5GHz and 6GHz).
  • Page 77 U-NII-5 (6GHz) support by region Teradek products are built to comply with regulatory requirements for all markets in which they are sold. As such, we can only enable U-NII-5 support in the regions where it is approved for license-free use.

  • Page 78: Regulatory Information

    Operating the product without regulatory approval is illegal. Any changes or modifications to the product not expressly approved by Teradek could void the user's authority to operate the equipment and its regulatory approvals. Please make sure you use the latest revision of this document which is available at teradek.com.
  • Page 79 Teradek User Manual • Use ONLY a UL/IEC 62368 or UL/IEC 60950-1 2nd revision approved AC/DC power adapter class LPS with an electrical output rating range of 6-28 V DC, 3A, with an ambient temperature range of 0°C to 40°C.
  • Page 80 Teradek User Manual IC RADIATION EXPOSURE STATEMENT Important Note: Radiation Exposure Statement This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
  • Page 81 Teradek User Manual Modules IC Antenna Max Permissable Gain Location Antenna Impedance 7680A- Dipole 2dBi Typical at 5GHz External 50Ω AMN41012 7680A- Dipole 11dBi Typical at 5GHz External 50Ω AMN41012 Internal 4492A-2832 Internal Antenna UNINTENTIONAL RADIO INTERFERENCE FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, under Part 15 of the FCC rules.
  • Page 82 Teradek User Manual undesired operation. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage, et 2.
  • Page 83 This equipment may be operated in all EU countries with the following restrictions: • 5.15-5.35GHz frequencies for indoor use only Teradek hereby declares that this Radio Transmitter complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU DoC is located at: https://support.teradek.com/hc/en-us/articles/233429747-EC-Declaration-of-Conformity-for-CE-...

  • Page 84: Bolt 4K System

    Teradek User Manual SUPPORT RESOURCES In addition to this Reference Guide, you can find more information on Bolt 4K devices' features and operation by visiting www.teradek.com. If you are unable to find what you need online, please contact Teradek’s support staff.
  • Page 85 Teradek User Manual 1080i50/59.94/60 720p50/59.94/60 480p59.94/576p50 (via HDMI ports only) 480i (NTSC)/576i (PAL) Input Cross Yes, HDMI to SDI Conversion Output Video Yes, Framerate and Resolution Scaling Scaling VIDEO PROCESSING Video Visually lossless Compression Test Pattern Generator Video Format Conversion...
  • Page 86 Teradek User Manual INTERFACES Configuration OLED Screen with Menu Joystick Interface Navigation Switches On/Off Switch Desktop App Bolt Manager app (OSX and Windows) Mobile App Bolt App (iOS and Android) USB Interface Upgrade via Micro-USB Bluetooth Bolt App Compatability NETWORK...
  • Page 87 Teradek User Manual cordless phones, and operate up to 6 cordless phones, and operate up to 6 sets in the same location sets in the same location POWER Power Input 2-Pin locking connector 7-28 VDC 2-Pin locking connector 7-28 VDC...

  • Page 88: Bolt 4K Lt System

    Teradek User Manual Bolt 4K LT System BOLT 4K LT SYSTEM BOLT 4K TRANSMITTER BOLT 4K TRANSMITTER VIDEO 3G-SDI SMPTE 424M standard/75 Ω Video Inputs (BNC x 1), 1x HDMI 1.4b Type-A receptacle 3G-SDI SMPTE 424M standard/75 Ω 3G-SDI SMPTE 424M standard/75 Ω...
  • Page 89 Teradek User Manual Compression Test Pattern Generator Spectrum Analyzer AUDIO Audio 48kHz 24-bit PCM 48kHz 24-bit PCM Compression Embedded SDI/HDMI Audio Input Audio Input (2 channel) Embedded SDI/HDMI Audio Input Audio Output (2 channel) PHYSICAL ATTRIBUTES Dimensions 2.4” x 4.1” x 1.3” (60 x 103 x 33mm) 4.8”...
  • Page 90 Teradek User Manual 5.270 ~ 5.670 GHz 5.270 ~ 5.670 GHz Non-DFS Frequencies: Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 Bluetooth 2.4GHz 2.4GHz RF Channel Auto, Manual Auto, Manual...
  • Page 91 Teradek User Manual Multiple mounting options with M3 and Multiple mounting options with 3/ Mounting 1/4-20” holes 8”x16 and 1/4-20” holes Bolt 4K Page 91...

  • Page 92: Bolt 4K Monitor Module

    Teradek User Manual Bolt 4K Monitor Module BOLT 4K MONITOR MODULE (TX/RX) VIDEO Video Input/ 1x HDMI 2.0 Type-A receptacle, feeds into Smart 7 HDMI input via block Output connector Color Sampling HDMI: RGB 4:4:4, 8-bit <0.001sec (without format Delay (TX to RX) conversions) 4Kp23.98/24/25/29.97/30 (4K signals will be displayed as 1080p on monitor)
  • Page 93 Teradek User Manual Construction Milled aluminum (chassis), regulation-compliant PCB INTERFACES Configuration OSD on monitor, Bolt App Interface Mobile App Bolt App (iOS and Android) USB Interface Upgrade via Micro-USB NETWORK DFS Frequencies: 5.270 ~ 5.670 GHz Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz and 5.755 ~ 5.795 GHz...
  • Page 94 Teradek User Manual GENERAL Mounting Mounts in between SmallHD Smart 7 monitor and battery plate. Bolt 4K Page 94...

  • Page 95: Bolt Panel Antenna V.4

    Teradek User Manual Bolt Panel Antenna v.4 BOLT PANEL ANTENNA V.4 WIRELESS Frequency Range 4.9 - 7.5 GHz Gain 14 and 16dBi Polarization 2x Horizontal, 5x Vertical for polarization Beam-width deg horizontal 75° 35° Beam-width deg vertical Impedance 50 ohm...

  • Page 96: Bolt 4K Lt-Hdmi System

    Teradek User Manual Bolt 4K LT-HDMI System BOLT 4K LT-HDMI SYSTEM BOLT 4K LT-HDMI TRANSMITTER BOLT 4K LT-HDMI RECEIVER VIDEO Video Inputs 1x HDMI 1.4b Type-A receptacle Video Outputs 1x HDMI 1.4b Type-A receptacle 1x HDMI 1.4b Type-A receptacle SDI Ancillary...
  • Page 97 Teradek User Manual Spectrum Analyzer Color Correction AUDIO Audio 48kHz 24-bit PCM 48kHz 24-bit PCM Compression Embedded HDMI Audio Input (2 Audio Input channel) Embedded HDMI Audio Input Audio Output (2 channel) PHYSICAL ATTRIBUTES Dimensions 2.4” x 4.1” x 1.3” (60 x 103 x 33mm) 4.8”...
  • Page 98 Can receive wireless video to all Can transmit wireless video to all ranges ranges of Bolt 4K XT and Bolt 4K LT of Bolt 4K XT and Bolt 4K LT receivers Interoperability transmitters (limited by shortest range...

  • Page 99: Troubleshooting/Faq

    App. Will Bolt 4K work with my current Bolt? No. Previous generation Bolts cannot communicate with Bolt 4K. Bolt 4K uses a different RF system along with a unique chipset not found in any of the previous generation Bolts. Does Bolt 4K support SDI Metadata/ancillary data passthrough? Bolt 4K supports a limited subset of SDI ancillary data (metadata) from certain cameras.
  • Page 100 Bolt 4K’s performance and capabilities. NOTE: These requirements only apply if you are using an A/C outlet to power on Bolt 4K. Using a compatible battery and accessory cable as a power source will not affect Bolt 4K’s performance.
  • Page 101 Yes. Recent changes to the device's chassis allows the user to assemble and install battery plates on either the receiver or transmitter. Earlier Bolt 4k units required battery plates to be installed only by a trained technician at a Certified Teradek Repair Center. Contact Teradek to verify if your device's metalwork is the latest.

  • Page 102: How To Upgrade Your Bolt 4K Lt Hdmi To Include The New 6Ghz Mode

     Canada. As more governments open the 6GHz frequencies for public use, we will update the Bolt 4K firmware for compatibility with 6GHz frequencies free of charge. Check out the latest regions that support 6GHz here. If you have completed this process, but still do not see the Band option in the Wireless...
  • Page 103 Bolt Manager for Mac or PC. 3. Connect your Bolt 4K LT HDMI TX via UBC-C (Thunderbolt cable will not work) to your computer. 4. Download the latest Bolt 4K firmware. a. Load from Web - click Load from Web to automatically download the latest firmware package from Teradek’s servers.

  • Page 104: Bolt Panel Antenna V.4

    Bolt Panel Antenna V.4 If you're using the Bolt Panel Antenna V.4 with your Bolt 4K/Bolt 4K LT 1500 or MAX receiver, you must connect the five RP-SMA connectors from the receiver to the back of the antenna (see below for connector placement), and position the antenna so that the front (with the Teradek logo) has a clear line of sight to the transmitter.
  • Page 105 Teradek User Manual For more information about the different antenna configurations for Bolt 6, please visit: https://teradek.com/blogs/articles/what-antennas-should-i-use-with- bolt4k_pos=1&_sid=cefeb7d2d&_ss=r Bolt 4K Page 105...
