Teradek User Manual
Ace 750 Quick Start Guide

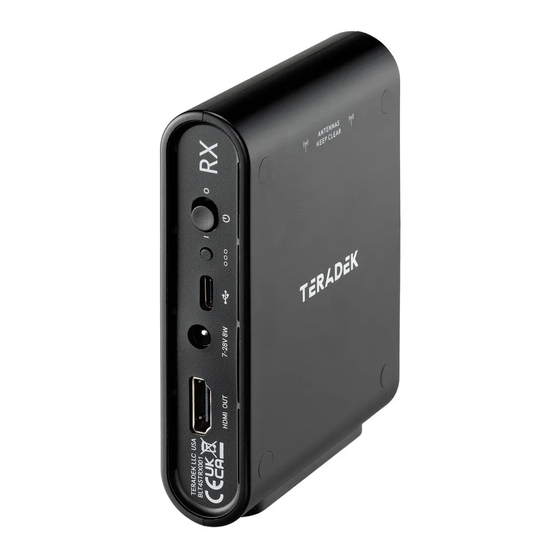

Ace 750 is a lightweight, compact, HDMI wireless video system with built-in antennas designed to
be used with mirrorless cameras, camcorders, action cameras, and A/V workflows. It sends
uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace
750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and fully complies with
FCC and CE frequency usage and power output guidelines.
Ace 750 Quick Start Guide
Page 1
Advertisement
Table of Contents
Related Manuals for Teradek Ace 750
Summary of Contents for Teradek Ace 750
- Page 1 Teradek User Manual Ace 750 Quick Start Guide Ace 750 is a lightweight, compact, HDMI wireless video system with built-in antennas designed to be used with mirrorless cameras, camcorders, action cameras, and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and fully complies with FCC and CE frequency usage and power output guidelines.
- Page 2 Teradek User Manual Table of Contents...
-
Page 3: What's Included
Physical Properties Power and Connect 1. Connect the output from your video source to the HDMI input on the transmitter. Connect the HDMI output from the Ace 750 receiver to the monitor's video input. Ace 750 Quick Start Guide Page 3... - Page 4 Pairing/Unpairing Ace 750 devices purchased as a set (TX and RX), are paired by default, requiring no additional configuration. Ace 750 devices purchased separately must be paired using the Bolt Manager, or the Bolt App. To pair your transmitter with multiple receivers, you will also need to use either the Bolt Manager or the Bolt App.
- Page 5 2. Open Bolt Manager, select the Pairing tab, then tap the Unpair All button. Bolt App Download and use the Bolt App to remotely manage and monitor every parameter of Ace 750 including pairing, frequency selection, and 3D LUTs. Transmitter Status Display •...
- Page 6 Advanced Settings tab, and the Restart System tab ▪ Advanced Settings: • Debug Info • Firmware Upgrade • Command Tool • Logs ◦ Device Registration • Signal Quality - Determine the quality and reliability of the signal being received. Ace 750 Quick Start Guide Page 6...
-
Page 7: Other Resources
• Status - Displays the current status of: ◦ TX Name ◦ Network Status ◦ Link ◦ Video Input ◦ Current Frequency ◦ Range ◦ Quality ◦ Region ◦ OSD name Other Resources • TECHNICAL SPECIFICATIONS: https://guide.teradek.com/a/1777167-ace-750-tx-and-rx-system Ace 750 Quick Start Guide Page 7...
