750/1500 RX and TX
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOLT 4K Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Teradek BOLT 4K Series

  • Page 1 750/1500 RX and TX Quick Start Guide...

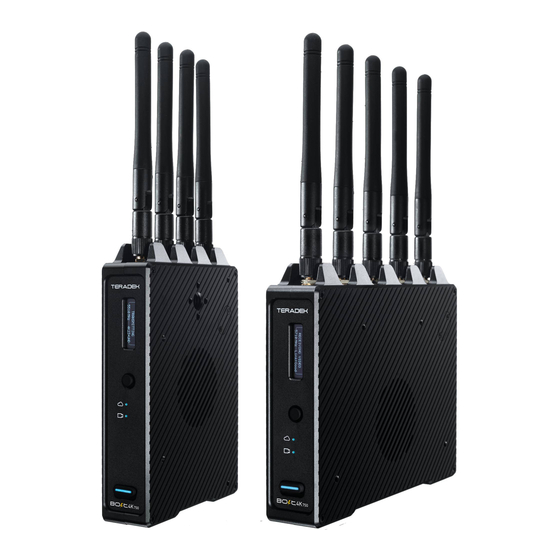

  • Page 2 PHYSICAL PROPERTIES Bolt 4K TX RP-SMA connectors Bolt 4K RX 6-28V DC power input HDMI input 12G-SDI output 12G-SDI input OLED display Menu joystick Network status Video status Power switch USB port (not shown) HDMI output...
  • Page 3 Bolt 4K is the first 4K HDR wireless video system to provide uncompressed, zero-latency (<1ms) transmission. Bolt 4K transmits 10-bit, 4:2:2 HDR video at a range of up to 750/1500 feet line-of-sight over the unlicensed 5GHz band, and can multicast to 6 receivers simultaneously.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Power and Connect ......3 Device Operation ........3 Bolt Connector/Pin-Out ...... 4 Custom 3rd Party Cables ..... 4 Mounting ..........5 Receiver Menu ........7 Transmitter Menu ........ 9 Bolt Manager ........10 Bolt App ..........11...
  • Page 5: Power And Connect

    POWER AND CONNECT (C or E) Connect the output from your video source to either the SDI or HDMI input on the Bolt (D or L) transmitter. Connect either the SDI or HDMI output from the Bolt receiver to the video input on your monitor.
  • Page 6: Bolt Connector/Pin-Out

    BOLT CONNECTOR/PIN-OUT Bolt uses a 2−pin power connector Description * Pin 1 is closest to the red dot on the connector CUSTOM/THIRD PARTY CABLES • Test the power cable polarity with ONLY the power cable connected to Bolt. Do not connect video cables. •...
  • Page 7: Mounting

    MOUNTING Bolt 4K devices have a 1/4”-20 threaded hole (additional 3/8”-16 threaded hole on the receiver) on the bottom for mounting the included light stand adapter or any other mounting accessory. • Mount the Bolt transmitter vertically, keeping the Bolt 4K receivers antennas clear of any obstructions.
  • Page 8 With Dual Mount Depending on the model, Bolt 4K devices are equipped with a dual mount battery plate that allows you to attach your device to either the back of a camera, monitor, or Array Antenna. • Mount the Bolt transmitter onto the back of a camera, keeping the antennas clear of any obstructions.
  • Page 9: Receiver Menu

    RECEIVER MENU Receiver Status Screens - Cycle through status screens or return from the menu by pressing the Menu joystick (G). • Main Status Screen - This screen displays the status of the wireless receiver, along with the current video resolution, frequency, and link quality (if connected). •...
  • Page 10 • Pairing - Pair your receiver with another transmitter. Once Pairing is activated on the receiver, activate Pairing on the transmitter. • Audio Settings - Configure Bolt’s Audio settings. If Beep on REC is activated, you will hear a short tone whenever the camera begins or stops recording.
  • Page 11: Transmitter Menu

    TRANSMITTER MENU Transmitter Status Screens - Cycle through status screens or return from the menu by pressing the Menu joystick (G). • Main Status Screen - This screen displays the status of the wireless receiver, along with the current video resolution, frequency, link quality (if connected). •...
  • Page 12: Bolt Manager

    Bolt Manager allows you to configure, pair, and upgrade your Bolt device. Bolt Manager is available as software for Mac and Windows at www.teradek.com/pages/downloads, or for purchase as a standalone device. NOTE: Available configuration settings will differ between Bolt models.
  • Page 13: Bolt App

    BOLT APP Use the Bolt App to remotely manage and monitor every parameter of the Bolt 4K including pairing, channel selection, and 3D LUTs. CONNECT VIA BLUETOOTH Download the Bolt App from the App Store. Navigate to the Bluetooth menu on both the transmitter and receiver, then select Enable (see pages 6-8).
  • Page 14 RECEIVER STATUS DISPLAY • Settings (Shortcut to menu items listed on pg. 6) - Tap the button at the top of the display to customize the receiver’s various settings such as the output format, audio, display and OSD. • SNR (Signal to Noise Ratio) - Compare the signal power level to the noise power level from the attached antennas.
  • Page 15 Teradek regularly releases new firmware versions to improve performance, add new features, or to fix vulnerabilities. Visit teradek.com to update your device with the latest firmware. NEED MORE HELP? SUPPORT: http://support.teradek.com → Contains tips, information and all the latest firmware & software updates.
  • Page 16 © 2019 Teradek, LLC. All rights reserved. v1.2...

This manual is also suitable for:

Bolt 4k 750 rxBolt 4k 750 txBolt 4k 1500 rxBolt 4k 1500 tx
