cozey MENSA Assembly Manual

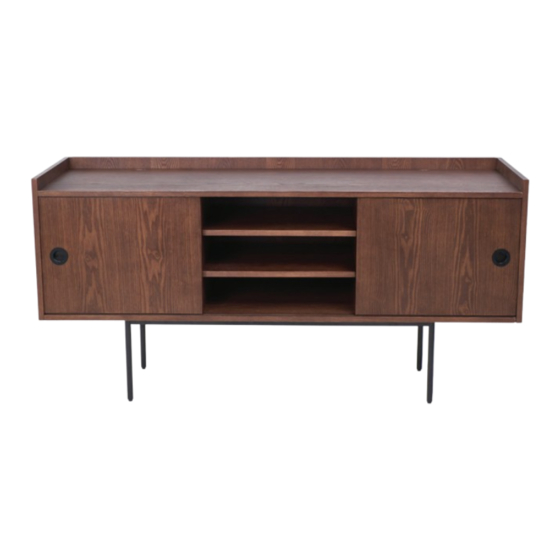

Credenza
Hide thumbs Also See for MENSA:

Advertisement

Quick Links

Download this manual
MENSA
Assembly guide for the credenza

Advertisement

loading
Need help?

Need help?

Do you have a question about the MENSA and is the answer not in the manual?

Questions and answers

Related Manuals for cozey MENSA

Summary of Contents for cozey MENSA

  • Page 1 MENSA Assembly guide for the credenza...

  • Page 2: Need Help

    MENSA Assembly guide for the credenza Scan the QR code to watch the assembly video. Need help? support@cozey.com +1(888) 828-8371...
  • Page 3 What’s in your Cozey boxes Mensa Credenza Bottom Panel (x1) Back Panel (x1) Center Support Panels (x2) Side Panels (x2) Mensa Credenza Top Panel (x1) Doors (x2) Shelves (x4) Legs (x2)
  • Page 4 Legend Connection System Connector Receiver Leveling Feet Hand Screw (x2) (x4) (x7) Shelf Pin Allen Key (x18) (x1)
  • Page 5 Empty the boxes.
  • Page 6 Flip the bottom panel upside down and screw in the legs using the hand screws. Use the Allen Key to tighten the hand screws .
  • Page 7 Flip the bottom panel back on its upright position. Make sure the cable management holes are on the back side.
  • Page 8 Insert both center support panels into the bottom panel. PRO TIP Angle to align the connector clips with the receivers. Insert the connector clips into the receivers. Slide the panel to secure in place. Make sure to follow the “Front” orientation sticker.
  • Page 9 Insert the top panel onto both center support panels. PRO TIP Angle to align the connector clips with the receivers. Insert the connector clips into the receivers. Slide the panel to secure in place. Make sure the cable management holes are on the back side.
  • Page 10 Insert the back panel on the top and bottom panels. PRO TIP Angle to align the connector clips with the receivers. Insert the connector clips into the receivers. Slide the panel to secure in place. Make sure to follow the “Top” orientation sticker.
  • Page 11 Insert both side panels on the top and bottom panels. PRO TIP Angle to align the connector clips with the receivers. Insert the connector clips into the receivers. Slide the panel to secure in place. Make sure to follow the “Top” orientation sticker.
  • Page 12 Install the shelves to the desired layout using the shelf pins. PRO TIP Insert 4 pins per shelf. Insert the shelf pins. Install the shelf onto the 4 pins.
  • Page 13 Insert the doors inside the top and bottom panel grooves. PRO TIP Doors are reversible, flip them for a no handle look. Insert the door inside the top panel Insert the door inside the bottom Adjust the leveling feet if needed. groove.
  • Page 14 Enjoy your Mensa Credenza! Doors slide on single track and leave one bay open at all times.
  • Page 15 Let’s get Cozey Share your creation with us !
