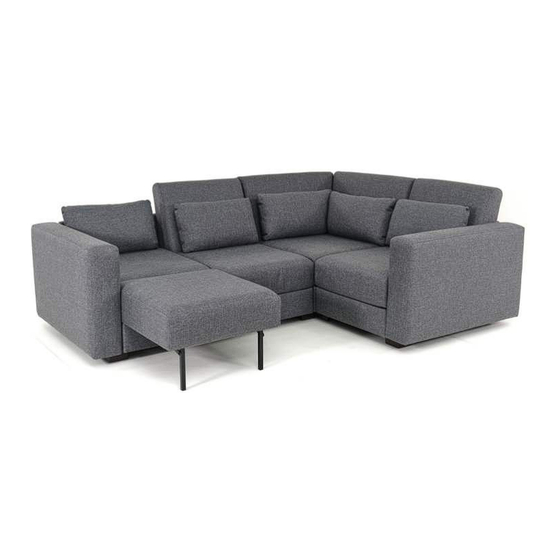

NEPTUNE
Assembly guide for sofas and sectionals

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEPTUNE and is the answer not in the manual?

Questions and answers

Summary of Contents for cozey NEPTUNE

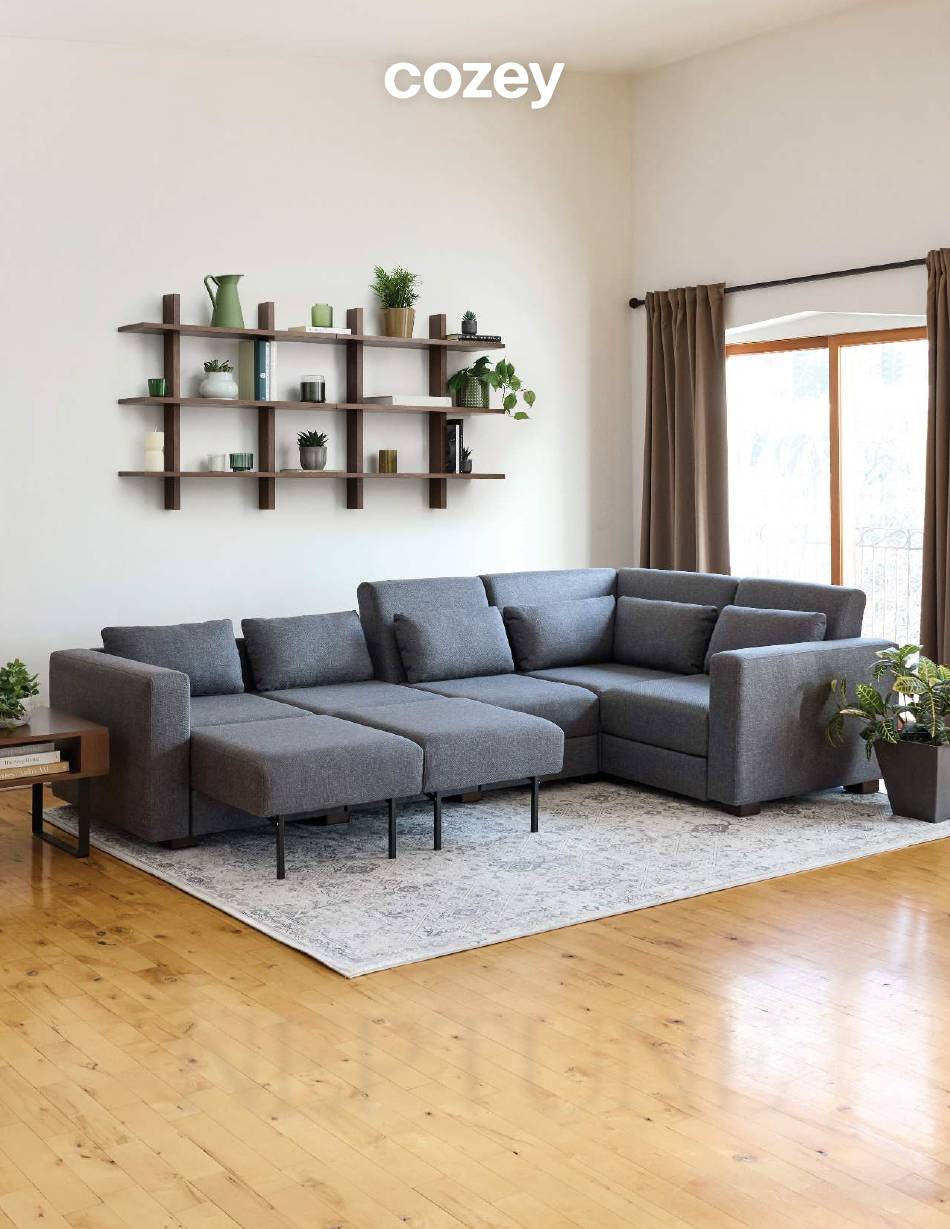

  • Page 1 NEPTUNE Assembly guide for sofas and sectionals...
  • Page 2 NEPTUNE Assembly guide for sofas and sectionals Scan the QR code to watch the assembly video. Need help? support@cozey.com +1(888) 828-8371...
  • Page 3 What’s in your Cozey boxes Sleeper Seat Sleeper seat (x1) Lumbar pillow (x1) Sleeper Seat Backrest Sleeper seat backrest (x1) Sleeper seat back cushion (x1) Connector legs (x2) Hand screws (x2) Legs plastic caps (x2) Arms Left arm (x1) Right arm (x1)
  • Page 4 What’s in your Cozey boxes Corner Seat Corner seat base (x1) Corner seat cushion (x1) Lumbar pillows (x2) Corner Backrests Corner backrests (x2) Connector legs (x2) Hand screws (x2) Legs plastic caps (x2) Corner Seat Back Cushions Corner seat back cushions (x2)
  • Page 5 Legend Seat Connection System Seat receiver Seat connector Backrest Connection System Backrest receiver Backrest connector Connector leg Hand screw Leg plastic cap...
  • Page 6 Final Arm (p. 8- 9) (p. 37 - 39) Sofa Bed Con昀椀guration Sleeper Seat (p. 10 - 16) (p. 40 - 44) Storage Seat Storage Ottoman and Chaise (p. 17 - 25) (p. 45 - 49) Single Bed Con昀椀guration Corner Seat (p.
  • Page 7 Empty the boxes. Tilt the boxes to slide the units out.
  • Page 9 Put the arm on its side and attach two connector legs. PRO TIP Place the plastic caps on the connector legs. Attach the legs using the hand screws.
  • Page 10 Sleeper Seat...
  • Page 11 Back Bottom Put the sleeper seat upside down and screw two connector legs. Front PRO TIP Place the plastic caps on the connector legs. Screw the legs using the hand screws.
  • Page 12 Put the sleeper seat back in its upright position and lift the seat to remove the lumbar pillow. PRO TIP Undo the velcro loop.
  • Page 13 Slide the connectors of the sleeper seat onto the receivers of the previous module. PRO TIP Angle to connect seat’s connectors & receivers. Push down to slide into place.
  • Page 14 Slide the connectors of the backrest onto the receivers of the sleeper seat. PRO TIP Angle to connect seat’s connectors & receivers. Align to connect backrest’s connector & receiver. Push down. Make sure the connector on the backrest connects with the receiver of the previous module.
  • Page 15 Insert the back cushion. PRO TIP Slide the back cushion into place. Push down.
  • Page 16 Place the lumbar pillow.
  • Page 17 Storage Seat...
  • Page 18 Remove both seat cushion and lumbar pillow and flip the seat base upside down.
  • Page 19 Back Bottom Attach two connector legs and put the seat base back to its upright position. Front PRO TIP Place the plastic caps on the connector legs. Attach the legs using the hand screws.
  • Page 20 Slide the connectors of the seat base onto the receivers of the previous module. PRO TIP Angle to connect seat’s connectors & receivers. Push down to slide into place.
  • Page 21 Back Bottom Flip the backrest and Front attach one connector leg. PRO TIP Place the plastic cap on the connector leg. Attach the leg using the hand screw.
  • Page 22 Slide the connectors of the backrest onto the receivers of the seat base. PRO TIP Angle to connect seat’s connectors & receivers. Align to connect backrest’s connector & receiver. Push down. Make sure the connector on the backrest connects with the receiver on the previous module.
  • Page 23 Place the seat cushion onto the seat base. PRO TIP | ASTUCE Place the black fabric on the seat cushion towards the back of the seat. Use the underside alignment pins of the cushion to secure it in place.
  • Page 24 Insert the back cushion. PRO TIP Slide into place. Push down.
  • Page 25 Place the lumbar pillow.
  • Page 26 Corner Seat...
  • Page 27 Remove both seat cushion and lumbar pillows and flip the seat base upside down.
  • Page 28 Back Side Bottom Back Screw in three connector legs and put the seat base back to its upright position. Side PRO TIP Place the plastic caps on the connector legs. Screw the legs using the hand screws.
  • Page 29 Slide the connectors of the seat base onto the receivers of the previous module. PRO TIP Angle to connect seat’s connectors & receivers. Push down to slide into place.
  • Page 30 Back Bottom Flip the backrests and attach one connector Front Back leg into each backrest. PRO TIP Place the plastic caps on the connector legs. Attach the legs using the hand screws.
  • Page 31 Slide the connectors of the 昀椀rst backrest onto the receivers of the seat base. PRO TIP Angle to connect seat’s connectors & receivers. Align to connect backrest’s connector & receiver. Push down. Make sure the connector on the backrest connects with the receiver on the previous module.
  • Page 32 Slide the connectors of the second backrest onto the receivers of the seat base. PRO TIP Angle to connect seat’s connectors & receivers. Align to connect backrest’s connector & receiver. Push down. Make sure the connector on backrest connects with the previous corner backrest.
  • Page 33 Place the seat cushion onto the seat base. PRO TIP Use the underside alignment pins of the cushion to secure it in place.
  • Page 34 Insert both back cushions. PRO TIP Slide into place. Push down.
  • Page 35 Place both lumbar pillows.
  • Page 36 Continue connecting the seat bases and backrests up to the 昀椀nal arm.
  • Page 37 Final Arm...
  • Page 38 To attach the 昀椀nal arm, slide the connectors of the arm onto the receivers of the last module. PRO TIP Angle to connect seat’s connectors & receivers. Align to connect backrest’s connector & receiver. Push down. The 昀椀nal arm has no leg. The 昀椀nal arm sits on the extended plate of the connector legs attached to the last seat module.
  • Page 39 Be Cozey! LOUNGING SEAT A single sleeper seat can be used as a lounge seat. Pull the sleeper seat forward and place the lumbar pillow.
  • Page 40 Sofa Bed Con昀椀guration...
  • Page 41 A full size sofa bed can be created by attaching three consecutive sleeper seats. To create the sofa bed remove the lumbar pillow, pull the seat cushion forward and push down.
  • Page 42 Place the lumbar pillow inside the storage compartment of the sleeper seat.
  • Page 43 Use the handle and pull the back cushion over the open compartment. PRO TIP Place the handle between the seat cushion and back cushion.
  • Page 44 Repeat steps 1 to 3 to complete the sofa bed assembly.
  • Page 45 Storage Ottoman and Chaise...
  • Page 46 Remove the ottoman cushion and leg box and flip the ottoman base upside down.
  • Page 47 Attach four legs and put the ottoman base back to its upright position. PRO TIP Legs screw directly into base.
  • Page 48 Flip the ottoman hook out and replace the cushion on the base. Lift the sleeper or storage seat cushion.
  • Page 49 Slide the ottoman hooks under the storage seat or sleeper seat and push the seat cushion down.
  • Page 50 Single Bed Con昀椀guration...
  • Page 51 Flip the ottoman hook out and replace the cushion on the base. Place the ottoman in front of the sleeper seat and remove the lumbar pillow.
  • Page 52 Place the lumbar pillow inside the storage space of the sleeper seat.
  • Page 53 Pull the seat cushion forward and push down over the ottoman hook. PRO TIP Push the ottoman torwards the sleeper seat. Push the sleeper seat cushion down to secure it into place.
  • Page 54 Use the handle and pull the back cushion over the open compartment. Place the handle between the seat cushion and back cushion.
  • Page 55 Let’s get Cozey Share your creation with us !
