Com. no.
..................................................
Operator
............................................................................................................................................................
Operating place ........................................................................................................................................................

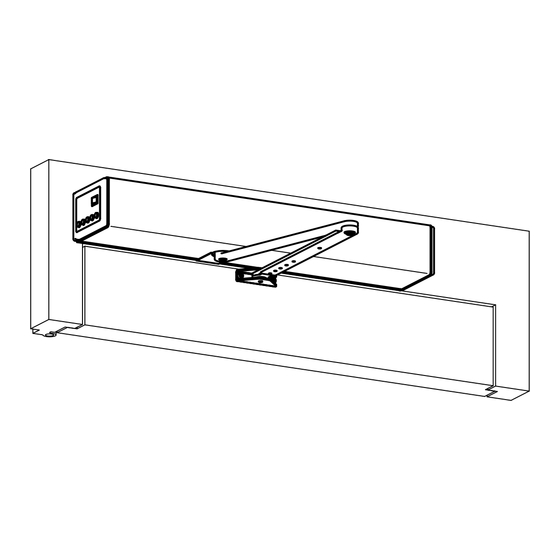

Swing door drive mechanism
with fire protection rating
FD 20-F
Operator manual
Pos.
0548-991/22g
Original
.................................
2022.05
Construction year ...................
Advertisement
Table of Contents
Related Manuals for GILGEN FD 20-F
Summary of Contents for GILGEN FD 20-F

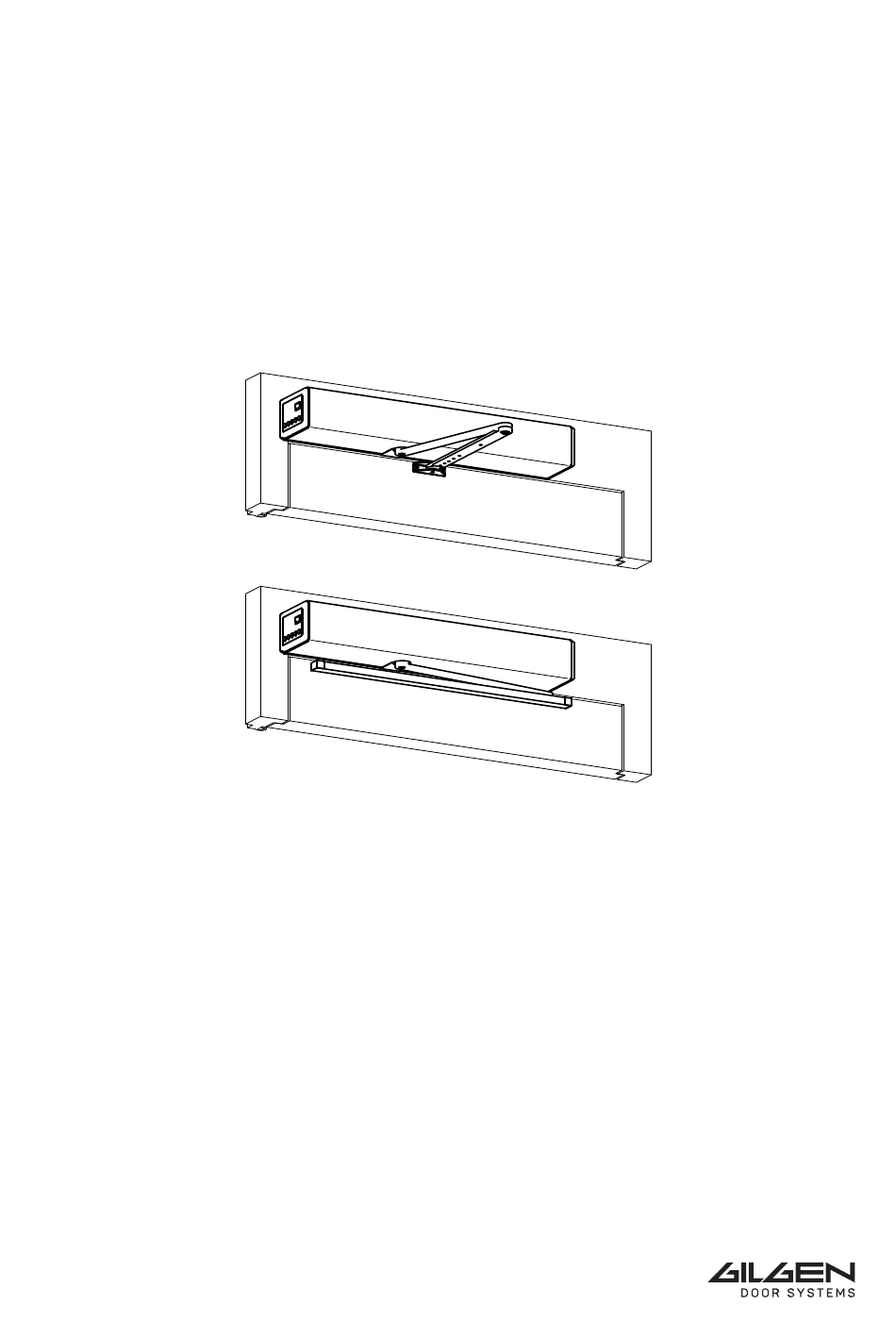

- Page 1 Swing door drive mechanism with fire protection rating FD 20-F Operator manual Original Com. no........... Pos........Construction year ....Operator ................................Operating place ................................ 0548-991/22g 2022.05...
-
Page 2: Table Of Contents
FD 20-F Operator manual TABLE OF CONTENTS GENERAL REMARKS ........................ 4 Target group ........................4 Where to keep the operator manual ................4 Adresses ......................... 4 SAFETY ............................5 Appropriate use ......................5 2.2 Safety notices ......................... 5 2.3 Safety regulations ......................5 2.3.1... - Page 3 FD 20-F Operator manual TROUBLESHOOTING ......................21 6.1 With D-BEDIX / KOMBI-D-BEDIX (option) ..............21 6.1.1 Error display ....................21 6.1.2 Carrying out a Reset ..................21 6.2 Irregular functioning without error no................ 22 SHUT-DOWN .......................... 23 DISPOSAL OF THE INSTALLATION ..................24 SETTINGS MADE BY THE AFTER-SALES SERVICE ..............25 10 APPENDIX ..........................26 • Declaration of incorporation according to machinery directive 0548-991/22g 0548-991-21---30g_2022.05.indd...
-
Page 4: General Remarks
FD 20-F Operator manual GENERAL REMARKS The following basic documents are associated with this installation: • Mounting and operating instructions 0548-990/12 onto the installation • Operator manual 0548-991/22 by the operator • Control booklet 0548-991/32 onto the installation The present operator manual contains all the instructions needed for operation, maintenance as well as troubleshooting and is the basis for a faultless and safe operation of the installation. The operator manual must be completely read and understood! Target group All the activities described in the operator manual may only be carried out by the operator or by appropriately instructed persons! Where to keep the operator manual The operator manual is handed over to the operator who has to keep it at an easily accessible place. Handed over to the operator Date ....... -
Page 5: Safety
FD 20-F Operator manual SAFETY Appropriate use The swing door drive mechanism with fire protection rating FD 20-F has been exclusively designed for operating swing doors with fire protection rating. Any other use beyond these application limits is deemed inappropriate and inadmissible! In the event of an inappropriate use of this system, the safety of the user may be jeopar d ized and/or the installation be damaged. The manufacturer declines all responsibility for these inju- ries/damages! Safety notices The present instructions uses the following symbols and notes in order to point out certain resi- dual dangers: Warning: Involving danger to life and limb. Attention: A situation where material could be damaged or the function impaired. Note: Hints which facilitate the work. Safety regulations 2.3.1 Principles • The installation has been calculated, designed and manufactured on the basis of the latest state-of-the-art technology and the generally recognized safety-relevant rules and regulations. It may only be operated if it is in perfect condition, taking into account the specifications of the present manual. Any use beyond the defined application limits is inadmissible! • The installation is to be operated and maintained in such condition that the safety is guaran- teed at all times. An integral part of this condition is the appropriate use, the compliance with... -
Page 6: Service
FD 20-F Operator manual • Transparents door leaves and fixed side panels (or their surfaces) must be clearly recognizable, e.g. by means of a permanent marking or dyed materials. • Door sills or other protruding elements of the door system have to me marked with a warning sticker or appropriate marking. • It is imperative for the customer to install a door leaf stop piece! The latter limits the opening motion of the door leaf and prevents it's being damaged in the manual operating mode. As an option, an open position stop piece can be integrated into the drive mechanism itself. 2.3.2 Service In order to guarantee the safety of the users at all times, the installation must be checked with regard to its safe condition before the first commissioning and during normal operation, at least once a year, by a expert. The correct maintenance/checking must be confirmed by entering the date and signature into the control booklet. In addition, fire protection installations need to be checked once a year by an authorized speci- alist. The correct checking must be confirmed by entering the date and signature to the mainte- nance control booklet for fixing devices. Only applicable for Germany: Automatic doors are stationary electrical door systems. It is incumbent on the operator to make sure that ever 4 years they undergo an inspection accor- ding to DGUV 3! To this effect, the operator shall mandate a qualified electrician! DGUV = German statutory accident insurance 2.3.3 Safety devices It is inadmissible to bypass, shunt or disable the safety devices. Any defective safety devices may not be disconnected in order to be able to continue the operation of the installation. -
Page 7: Product Description
FD 20-F Operator manual PRODUCT DESCRIPTION General remarks The swing door drive mechanism with fire protection rating FD 20-F allows an automatic opening and closing of swing doors with fire protection rating. The door is opened either automatically or manually via the control elements. The closing is initiated upon expiry of the programmed hold- open time. If the Push and Go function is enabled, the door just requires a slight manual push upon which the drive unit carries out an automatic opening sequence. In the Servo operation, the drive mechanism compensates the closing force of the spring. For the user, the door behaves like a normal door (without drive mechanism). The operating characteristics of the door can be determined via the program selector (selection of the operating modes). A swing door installation may consist of the elements designated hereafter: A Branch box* B Fire detector** C Detector* D Swing door drive mechanism with fire protection rating FD 20-F E Safety element* F Electric lock* G Door leaf... -
Page 8: Standard Application
FD 20-F Operator manual Standard application During normal operation, the opening and closing movements of the door leaf are motorized. The automatically opening is performed via opening elements. The automatically closing starts as soon as the programmed hold-open time has expired. Function in the event of a fire alarm/a mains failure The door leaf is closed from any position by means of spring power. The motor attenuation ensures a controlled closing. Inverse application The swing door drive mechanism FD 20-F is also appropriate for inversed operation. This parti- cular function can be separately programmed for each drive mechanism. The inverse application is suitable for smoke extraction from buildings (RWA = smoke and heat exhaust vent solution) as well as for escape and rescue ways. In the event of a power failure or a RWA, this functionality ensures that the door leaf is reliably opened. During normal operation, the opening and closing movements of the door leaf are motorized. The automatically opening is performed via opening elements. The automatically closing starts as soon as the programmed hold-open time has expired. Function in the event of a smoke alarm/a mains failure The door leaf is opened from any position by means of spring power (unless it has not been locked). The motor attenuation ensures a controlled opening. An emergency power supply system is therefore not necessary. Attention: The inverse function (spring-powered opening) must not be used on hold-open devices or in fire- protection sections, as this function is contrary to the "self-closing" property (which is required by the standards)! 0548-991/22g 0548-991-21---30g_2022.05.indd Page 8 of 26... -
Page 9: Automatic Closing Sequence Control
FD 20-F Operator manual Automatic closing sequence control For 2 leaves installations, two separate FD 20-F swing door drive mechanisms with fire protection rating are used, which are connected via the CAN bus system. In addition, fire protection installa- tions require the installation of the mechanical closing sequence regulator FD 20-F ISR. Drive mechanism 1 Master Drive mechanism 2 Slave Earlier door leaf the first one to open Delayed door leaf the second one to close the second one to open the first one to close Control elements The possible control elements are: • Motion detector interior/exterior side •... -
Page 10: Technical Data
FD 20-F Operator manual Technical data Drive mechanism Standard SRP (special gear for sliding rods pushing function) Power transmission Normal rods Sliding rods Dimensions drive mechanism Height 95 mm Width 690 mm Depth 120 mm Weight drive mechanism 10,5 kg Ambient temperature -15...+50 °C... -
Page 11: Control
FD 20-F Operator manual CONTROL Main switch The drive mechanism is supplied with a built-in main switch (A). This main installation switch enables you to disconnect the power supply from the drive mechanism. The door leaf then is closed from any position by means of spring power (Invers = spring opening, unless the door leaf has not been locked). The motor attenuation ensures a controlled closing (Invers = opening). Program selector The drive mechanism is supplied with a built-in program selector (B), which allows enabling the operating modes AUTOMATIC, NIGHT, OPEN, MANUAL and EXIT. The presently enabled operating mode is identified by the illuminated key. Note: In the event of a pending fatal error, alle the keys shortly flash up. In the event of a fire alarm, the red LED in the other side cover lights up. Acknowledge the fire alarm (either by means of a connected button or by pressing and holding for a certain time a program key in the side cover). In the event of 2 leaves installations, this alarm must be reset for both drive mechanisms. Key lock (3 versions) Note: Must be programmed by your customer service! One particular program setting has been predefined by default. This setting can only be over- ridden by an external program switch or a timer. -
Page 12: Operating Modes
FD 20-F Operator manual Operating modes The following operating modes can be enabled by means of the program selector: AUTOMATIC Automatic opening via the opening elements inside/outside + Key. Automatic closing upon expiration of the adjustable hold-open time. NIGHT The door leaf can only be opened via the opening element Key (key-operated siwtch outside). OPEN The door leaf is automatically opened and remains in the OPEN position. MANUAL The drive mechanism and the control elements are switched off. The door leaf can be manually opened. The door leaf is closed by spring power from any position (Invers = spring opening, unless the door leaf has not been locked). EXIT The door leaf can only be opened via the opening elements inside and Key. Teach-in procedure (Teach) Completely close the door leaf (Invers = open). Hold the keys MANUAL and EXIT simultaneously depressed (during at least 5 seconds). All the pending errors will be deleted and a teach-in procedure (Teach) is carried out. 0548-991/22g 0548-991-21---30g_2022.05.indd Page 12 of 26... -
Page 13: D-Bedix (Option)
FD 20-F Operator manual D-BEDIX (option) The different operating modes can be directly enabled by means of the D-BEDIX. In addition, it provides easy programming of the most impor- tant door settings. The operating modes, menu settings as well as possible errors are displayed in a clearly ar- ranged synopsis. The D-BEDIX is connected to the control unit FD 20-F via a screened two-core connection cab- le (e.g. U72M or EIB-Y(St)Y, max. length 50 m). Only one D-BEDIX can be connected per door installation. 4.4.1 Keys C-key (Cancel) • Exit the menu • Invalidate entry. OK-key • Confirm the selection • Confirm the entry. Arrow keys • Navigate within the menus • Short simultaneous actuation of both keys = acces to the menu level. -
Page 14: Operating Modes
FD 20-F Operator manual 4.4.3 Operating modes With the D-BEDIX, the following operating modes can be selected by means of the corresponding symbols: AUTOMATIC Automatic operation. The installation can be locked. NIGHT The installation is locked . As opening commands, only the key-operated impulse switch is accepted. The delayed switchover to the operating mode NIGHT can be activated by means of parameter TdNigt. Function: If the program selector switch is changed to the operating mode NIGHT from any random operating mode, the internal radar will still remain active during the programmed time TdNigt (EXIT). OPEN The installation is opened and remains in the open position. MANUAL The installation stops. The swing door leaf is released and can be manually opened and closed. EXIT One-way traffic from inside towards the outside. The installation is locked (shop closing switching mode). Provided that the locking mechanism (optional) is installed. Each operating mode can be locked (this is configurable). 4.4.4 Display of the door position The following door positions are represented onthe D-BEDIX display: <REF?>... -
Page 15: Menu Level
FD 20-F Operator manual 4.4.5 Menu level Short and simultaneous actuation of both arrow keys (=access to the menu level). Select the desired menu item bymeans of the arrow key. Confirm by means of the OK key. Display Description PARAMETER Setting the motional parameters * CONFIG Setting the functionalities * DOUBLE DOOR Setting the closing sequence and interlock function * DIAGNOSTICS Diagnostic tool ERROR ACTIVE Active pending errors ERROR HISTORY Formerly active errors REINIT Carry out a re-initialization * BLOCK/UNBLOC Lock/unlock keys Initiate a teach-in procedure TEACH make sure that the door leaf is completely closed. * password protected settings only made by the after-sales service 0548-991/22g 0548-991-21---30g_2022.05.indd Page 15 of 26... -
Page 16: Setting Examples
FD 20-F Operator manual 4.4.6 Setting examples Changing the operating mode Select the desired symbol by means of the arrow key (symbol starts flashing). Confirm with the OK key (frame/bar switch over). Preselecting the operating mode An overriding switch is active and determines the operating mode (only the selection frame is visible, the bar underlines the preselected operating mode). Now you can select the operating mode you want to be active upon cancellation of the overriding switch: Select the desired symbol by means of the arrow key (symbol starts flashing). Confirm with the OK key (bar switches over). Enabling the keylock Short simultaneous actuation of both arrow keys (= access to the menu level). By means of the arrow key, select BLOCK. Confirm with the C-key and the right-hand arrow key. BLOCK? Temporarily disabling the keylock (60 s) Short simultaneous actuation of the C-key and the right-hand arrow key. Disabling the keylock Short simultaneous actuation of the C-key and the right-hand arrow key. -
Page 17: Error Display
FD 20-F Operator manual Parameters (hold-open timeday) Short simultaneous actuation of the arrow keys (= access to the menu level). By means of the arrow key, select TOEx. Confirm with the OK key. By means of the arrow key, change the value. Confirm with the OK key. TOEx Teach Completely close the door leaf. Short simultaneous actuation of the arrow keys (= access to the menu level). By means of the arrow key, select Teach. Confirm with the OK key. TEACH? 4.4.7 Error display In the event of an error, the display shows (alternating with the door position status) the present- ly active error number (e.g. E20/01). Error list: see chapter Troubleshooting. This sequence will be repeated until the error has been eliminated. E20/01 >##< >##< 0548-991/22g 0548-991-21---30g_2022.05.indd Page 17 of 26... -
Page 18: Kombi-D-Bedix (Option)
FD 20-F Operator manual KOMBI-D-BEDIX (option) In addition to the functions of the D-BEDIX, the KOMBI-D-BEDIX contains a key-operated switch (round or profile cylinder) with the following function: Lockout of the KOMBI-D-BEDIX against unautho- rized use. Free Locked Round cylinder Profile cylinder Cylinder: to be supplied by customers If this lockout is enabled, all the keys are shortly lit (as a confirmation of the lockout). 0635-148/04 0635-148/02 Glutz 81075 (8 x 45°) Glutz 81175 (8 x 45°) KABA 1514 KESO 21.214.040 SEA 1.043.0 Adjustable beard E200 DOM 2222H ix5 Driver with 8 adjus. DOM 333 ix-5 possibilities... -
Page 19: Service
FD 20-F Operator manual SERVICE Care/checking to be carried out by the operator Warning: Disconnect the installation before carrying out any work on the swing door! 5.1.1 Switching off • Select the operating mode MANUAL • Switch-off the main switch. 5.1.2 Care • Clean the floor within the area of the door leaf. • Clean the outside of the drive mechanism covering with a moistened rag. Warning:... -
Page 20: Checking
FD 20-F Operator manual 5.1.3 Checking The installation must be checked at regular intervals, at least every 2 months (checking of the different elements as far as these are included in the installation): • When the door leaf is moved by hand, can you hear any unusual grinding or screeching noises? • Check the function, the free access to and identification of the emergency stop button (optio- nal). • Check the correct fastening of the drive mechanism covering. Attention: Please contact immediately your after-sales service if you detect a damage or malfunc- tion that you cannot repair yourself. Maintenance/checking carried out by the after-sales service Warning: In order to guarantee the safety of the users at all times, the installation must be che- cked with regard to its safe condition before the first commissioning and during normal operation, at least once a year, by a expert. The correct maintenance/checking must be confirmed by entering the date and signature into the control booklet. -
Page 21: Troubleshooting
FD 20-F Operator manual TROUBLESHOOTING With D-BEDIX / KOMBI-D-BEDIX (option) 6.1.1 Error display The control unit recognizes various error situations and conditions and displays them on the D-BEDIX / KOMBI-D-BEDIX panel by means of an error number. Fatal errors (door in standstill) will be automatically shown on the display when the installation is switched on. 6.1.2 Carrying out a Reset Before carrying out a Reset, make sure to note the error number. • Upon selection and confirmation by means of the OK key, the drive mechanism automatically re-adjusts itself. Should you not succeed in eliminating the error, please call the after-sales service (Adress: see chapter 1). Note: In order to perform a precise error diagnostic, the after-sales service absolutely needs to know the error-no. which is displayed! Hereafter you will find further instructions about how you can try to eliminate the error, or if it is necessary to contact the after- sales service. 0548-991/22g 0548-991-21---30g_2022.05.indd Page 21 of 26... -
Page 22: Irregular Functioning Without Error No
FD 20-F Operator manual Irregular functioning without error no. Malfunction Analysis Possible cause Elimination Drive mechanism does Program selector On position MANUAL Select AUTOMATIC not function Main switch Switched OFF Switch ON Customer-supplied fuse Defective Replace Drive unit is heated up Temperature monitor has Wait 5...10 minutes... -
Page 23: Shut-Down
FD 20-F Operator manual SHUT-DOWN No particular measures need to be taken for de-commissioning the installation. If the swing door drive mechanism with fire protection rating will not be used during at least 1 month, it is recommended to pull out the mains plug. For taking the installation back into operation, all you have to do is to plug in the mains cable and select the operating mode. If the swing door drive mechanism with fire protection rating has been out of operation for more than 3 months, we recommend to have the re-commissioning carried out by your after-sales sesrvice (address: see chapter 1). 0548-991/22g 0548-991-21---30g_2022.05.indd Page 23 of 26... -
Page 24: Disposal Of The Installation
FD 20-F Operator manual DISPOSAL OF THE INSTALLATION An ecologically acceptable disposal of the installation is ensured if the different materials are separated and recycled. No particular measures are required for the protection of the environment. However, the relevant legal prescriptions applicable for the installation site have to be complied with! We advise you to entrust your after-ales specialists with the dismantling and disposal of your in- stallation. They will guarantee that the work is carried out according to the rules of environmental protection. 0548-991/22g 0548-991-21---30g_2022.05.indd Page 24 of 26... -
Page 25: Settings Made By The After-Sales Service
FD 20-F Operator manual SETTINGS MADE BY THE AFTER-SALES SER- VICE ......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0548-991/22g 0548-991-21---30g_2022.05.indd Page 25 of 26... -
Page 26: Appendix
FD 20-F Operator manual APPENDIX The following documents are added as an appendix to this operator manual: • Declaration of incorporation according to machinery directive 0548-991/22g 0548-991-21---30g_2022.05.indd Page 26 of 26...
