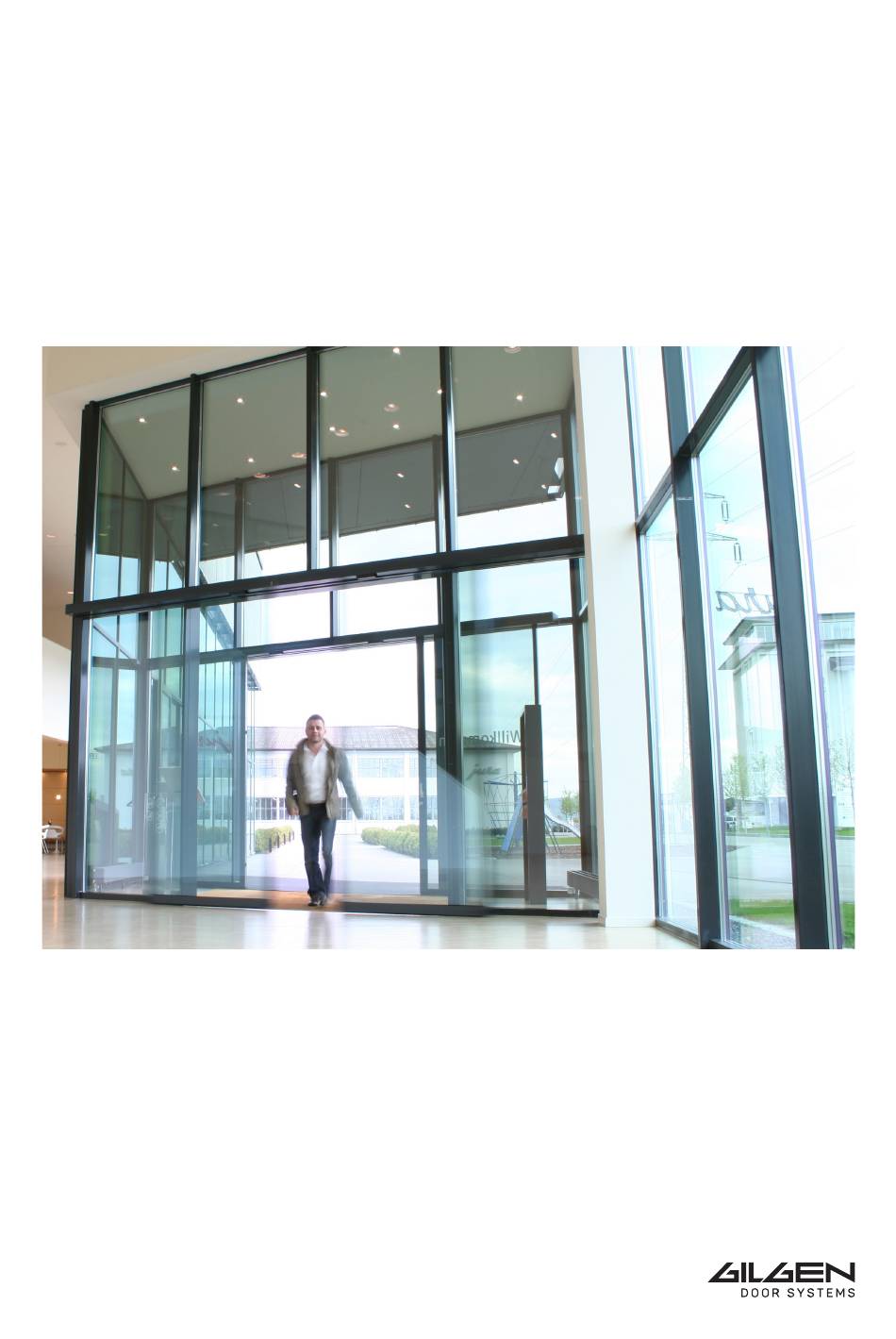

GILGEN SLX Operator's Manual

Automatic sliding door
Hide thumbs
Table of Contents

Advertisement

Quick Links

Com. no.
.............................................
Operator
..............................................................................................................................................
Operating place ........................................................................................................................................
Automatic sliding door
SLX
Operator manual
Original
Pos. ..............................
0635-999/06p
2017.12
Construction year ...............

Advertisement

Table of Contents
loading

Related Manuals for GILGEN SLX

Summary of Contents for GILGEN SLX

  • Page 1 Automatic sliding door Operator manual Original Com. no..........Pos....... Construction year ....Operator .............................. Operating place ............................0635-999/06p 2017.12...

  • Page 2: Table Of Contents

    General remarks ....................7 Normal operation ....................8 Options ......................8 3.3.1 Emergency battery ................8 3.3.2 BAT-NOT-X ...................8 3.3.3 SLX-Redundant ..................9 3.3.4 EMERGENCY STOP button ..............9 3.3.5 Locking of the running carriage LAVERI + LAVERI-FS ......10 3.3.6 Locking/Manual unlocking ..............11 3.3.7 Multi-point locking FLUVERI...............12 Control elements ....................13...
  • Page 3 DISPOSAL OF THE INSTALLATION .................28 SETTINGS MADE BY THE AFTER-SALES SERVICE ..........29 10 APPENDIX .........................30 • Declaration of incorporation according to machinery directive SLX ......30 • Declaration of incorporation according to machinery directive SLX-Redundant ..30 • Declaration of conformity according to machinery directive SLX......30 •...

  • Page 4: General Remarks

    The operator manual is handed over to the operator who has to keep it at an easily ac- cessible place. Handed over to the operator Date ....... Signature ....... Adresses Distribution agent/ After-sales service Manufacturer Gilgen Door Systems AG Freiburgstrasse 34 CH-3150 Schwarzenburg Phone +41 31 734 41 11 Fax +41 31 734 43 79 www.gilgendoorsystems.com info@gilgends.com 0635-999/06p 0635-999-05---08p_2017.12.indd...

  • Page 5: Safety

    Operator manual SAFETY Appropriate use The door drive mechanism SLX has been exclusively designed for operating sliding wings. Any other use beyond these application limits is deemed inappropriate and inad- missible! The door drive unit SLX-Redundant has been exclusively designed for operating sliding wings in escape and rescue ways. The term "redundancy" generally refers to a function which is carried out by two functional elements.

  • Page 6: Service

    Operator manual • In order not to create any dangerous squeezing and shearing points, no structural mo- dification must be made within the door surroundings, without prior authorization from Gilgen. Furthermore, it is important that no objects (such as furniture, pallets, etc.) be placed in the vicinity of the door. • All further interventions on and modifications of the installation that are not described in the present instructions are forbidden! •...

  • Page 7: Product Description

    PRODUCT DESCRIPTION General remarks The door drive mechanism SLX allows an automatic opening and closing of sliding doors. The operating characteristics of the door can be determined via a control element (selec- tion of the operating modes and setting of their respective parameters).

  • Page 8: Normal Operation

    Operator manual Normal operation The door opening is performed automatically via impulse generator or manually by means of a push-button. The door is automatically closed as soon as the programmed hold-open time has expired. In the event of a mains failure, the door remains blocked in the position in which it was when the mains failure occurred.

  • Page 9: Slx-Redundant

    3.3.3 SLX-Redundant The SLX-Redundant is used in escape and rescue ways. For redundant doors, a COMBI- SCAN (incl. tested radar) in the direction of the escape way is mandatory. This radar must be effective over the entire width of the door (from any point up to at least 1,5 m in front of the door).

  • Page 10: Locking Of The Running Carriage Laveri + Laveri-Fs

    Operator manual 3.3.5 Locking of the running carriage LAVERI + LAVERI-FS The locking of the running carriage is mounted in the drive mechanism (within the area of the closing edge). It features two interfaces where the Bowden cables of two manual unlocking mechanisms can be connected.

  • Page 11: Locking/Manual Unlocking

    Operator manual 3.3.6 Locking/Manual unlocking In the event of an emergency or of a mains failure (without the option emergency Manual unlocking battery), the closed door can be opened internal by pulling the red manual unlocking resp. remote manual unlocking while at the same time pushing the sliding wings to the open position.

  • Page 12: Multi-Point Locking Fluveri

    Operator manual 3.3.7 Multi-point locking FLUVERI Manual wing locking By means of a rotary-type knob or a key (2 turns) the door can be locked and unlocked from the outside as well as the inside. Automatic wing locking The door is automatically locked by the auto- matic unit integrated in the sliding wing.

  • Page 13: Control Elements

    The required safety elements must be installed in accordance with the EU directives as well as with the safety regulations valid in the country of application. Attention: We advise to use safety elements from the Gilgen product range. Gilgen cannot assume any functional guarantee if elements from other suppliers are being used! the possible safety elements are: •...

  • Page 14: Technical Data

    Operator manual Technical data Power transmission Toothed belt Number of revolutions toothed belt pulley 40...330 min Operating voltage 230 VAC (+6 %/-10 %), 50...60 Hz 115 VAC (+6 %/-10 %), 50...60 Hz Control voltage 24 VDC (1 A) Power consumption max. 280 W Ambient temperature -15...+50 °C if the installation remains permanently connected to the...

  • Page 15: Control

    Operator manual CONTROL D-BEDIX (option) The different operating modes can be directly enabled by means of the D-BEDIX. In addition, it provides easy programming of the most important door settings. The operating modes, menu settings as well as possible errors are displayed in a clearly arranged synopsis.

  • Page 16: Operating Modes

    Operator manual 4.1.3 Operating modes With the D-BEDIX, the following operating modes can be selected by means of the corre- sponding symbols: AUTOMATIC Automatic operation (summer or winter opening width). The installation is not locked. NIGHT The installation is locked*. As opening commands, only the key-operated impul- se switch or the F-KEYs (with key function) are accepted.

  • Page 17: Menu Level

    Operator manual 4.1.5 Menu level Short and simultaneous actuation of both arrow keys (=access to the menu level). Select the desired menu item bymeans of the arrow key. Confirm by means of the OK key. Display Description Setting range Winter (reduced opening width) Summer (entire opening width) New setting-up of the drive unit RESET? Hold-open time Day...

  • Page 18: Setting Examples

    Operator manual 4.1.6 Setting examples Changing the operating mode Select the desired symbol by means of the arrow key (symbol starts flashing). Confirm with the OK key (frame/bar switch over). Preselecting the operating mode An overriding switch is active and determines the operating mode (only the selection fra- me is visible, the bar underlines the preselected operating mode). Now you can select the operating mode you want to be active upon cancellation of the overriding switch: Select the desired symbol by means of the arrow key (symbol starts flashing).

  • Page 19: Error Display

    Operator manual Parameters (hold-open timeday) Short simultaneous actuation of the arrow keys (= access to the menu level). By means of the arrow key, select To. Confirm with the OK key. By means of the arrow key, change the value. Confirm with the OK key. Reset Short simultaneous actuation of the arrow keys (= access to the menu level). By means of the arrow key, select Reset.

  • Page 20: Kombi-D-Bedix (Option)

    Operator manual KOMBI-D-BEDIX (option) In addition to the functions of the D-BEDIX, the KOMBI-D-BEDIX contains a key-opera- ted switch (round or profile cylinder) with the following functions: • Switching-over from AUTOMATIC to NIGHT (disabling of the escape way func- tion for doors used in escape and rescue ways).

  • Page 21: C-Bedix (Option)

    Operator manual C-BEDIX (option) The C-BEDIX enables you to directly select the opera- ting modes. Possible errors are displayed by means of the red LED. The C-BEDIX is connected to the drive unit control by means of the CAN bus. A maximum of 2 C-BE- DIX can be connected. 4.3.1 Operating mode keys The C-BEDIX has the following operating mode keys with integrated green LED:...

  • Page 22: Kombi-C-Bedix (Option)

    Operator manual KOMBI-C-BEDIX (option) In addition to the functions of the C-BEDIX, the KOMBI-C-BEDIX contains a key-opera- ted switch (round or profile cylinder) with the following functions: • Switching-over from AUTOMATIC to NIGHT (disabling of the escape way func- tion for doors used in escape and rescue ways).

  • Page 23: Service

    Operator manual SERVICE Care/checking to be carried out by the operator Warning: Disconnect the installation before carrying out any work on the sliding door! 5.1.1 Switching off • Select the operating mode MANUAL • actuate the EMERGENCY STOP button (option). 5.1.2 Care • Clean the floor within the area of the sliding wings. Remove the dirt from any existing...

  • Page 24: Checking

    Operator manual 5.1.3 Checking The installation must be checked at regular intervals, at least every 2 months (checking of the different elements as far as these are included in the installation): • Testing the opening element (radar): Walk towards the door at normal speed. As soon as the remaining distance between you and the door is approximately 1,5 m, the opening process must be initiated, and by the time you have reached the door the latter must have achieved an opening of 80 %.The radar must be effective on the entire opening width.

  • Page 25: Troubleshooting

    Operator manual TROUBLESHOOTING With D-BEDIX / KOMBI-D-BEDIX / BEDiX 6.1.1 Error display The control unit recognizes various error situations and conditions and displays them on the D-BEDIX / KOMBI-D-BEDIX / BEDiX panel by means of an error number. Fatal errors (door in standstill) will be automatically shown on the display when the installation is swit- ched on.

  • Page 26: Irregular Functioning Without Error No

    Operator manual Irregular functioning without error no. Irregular functioning Possible cause Troubleshooting/Remedy Door does not open Mains failure/emergency Check/replace battery discharged the mains fuse Operating mode Select AUTOMATIC MANUAL/NIGHT operating mode Defective control Make an opening attempt element (sensor/radar/ with another control element contact carpet, etc.) (outside/inside) EMERGENCY STOP...

  • Page 27: Shut-Down

    Operator manual SHUT-DOWN No particular measures need to be taken for de-commissioning the installation. If the sliding door installation will not be used during at least 1 month, it is recommended to pull out the mains plug (and, if provided, the battery plug). Attention: For this purpose, the door must be in the operating mode NIGHT, in order to avoid a discharge of the battery (option).

  • Page 28: Disposal Of The Installation

    Operator manual DISPOSAL OF THE INSTALLATION An ecologically acceptable disposal of the installation is ensured if the different materials are separated and recycled. No particular measures are required for the protection of the environment. However, the relevant legal prescriptions applicable for the installation site have to be complied with! We advise you to entrust your after-ales specialists with the dismantling and disposal of your installation.

  • Page 29: Settings Made By The After-Sales Service

    Operator manual SETTINGS MADE BY THE AFTER-SALES SERVICE ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0635-999/06p 0635-999-05---08p_2017.12.indd Page 29 of 30...

  • Page 30: Appendix

    Operator manual APPENDIX The following documents are added as an appendix to this operator manual: • Declaration of incorporation according to machinery directive SLX • Declaration of incorporation according to machinery directive SLX-Redundant • Declaration of conformity according to machinery directive SLX • Declaration of conformity according to machinery directive SLX-Redundant 0635-999/06p 0635-999-05---08p_2017.12.indd...
