Swing door drive mechanism
Com. no.
.............................................
Operator
..............................................................................................................................................
Operating place ........................................................................................................................................
F4
Operator manual
Original
Pos. ..............................
0546-999/34c
2010.04
Construction year ...............
Advertisement
Table of Contents
Related Manuals for GILGEN F4
Summary of Contents for GILGEN F4

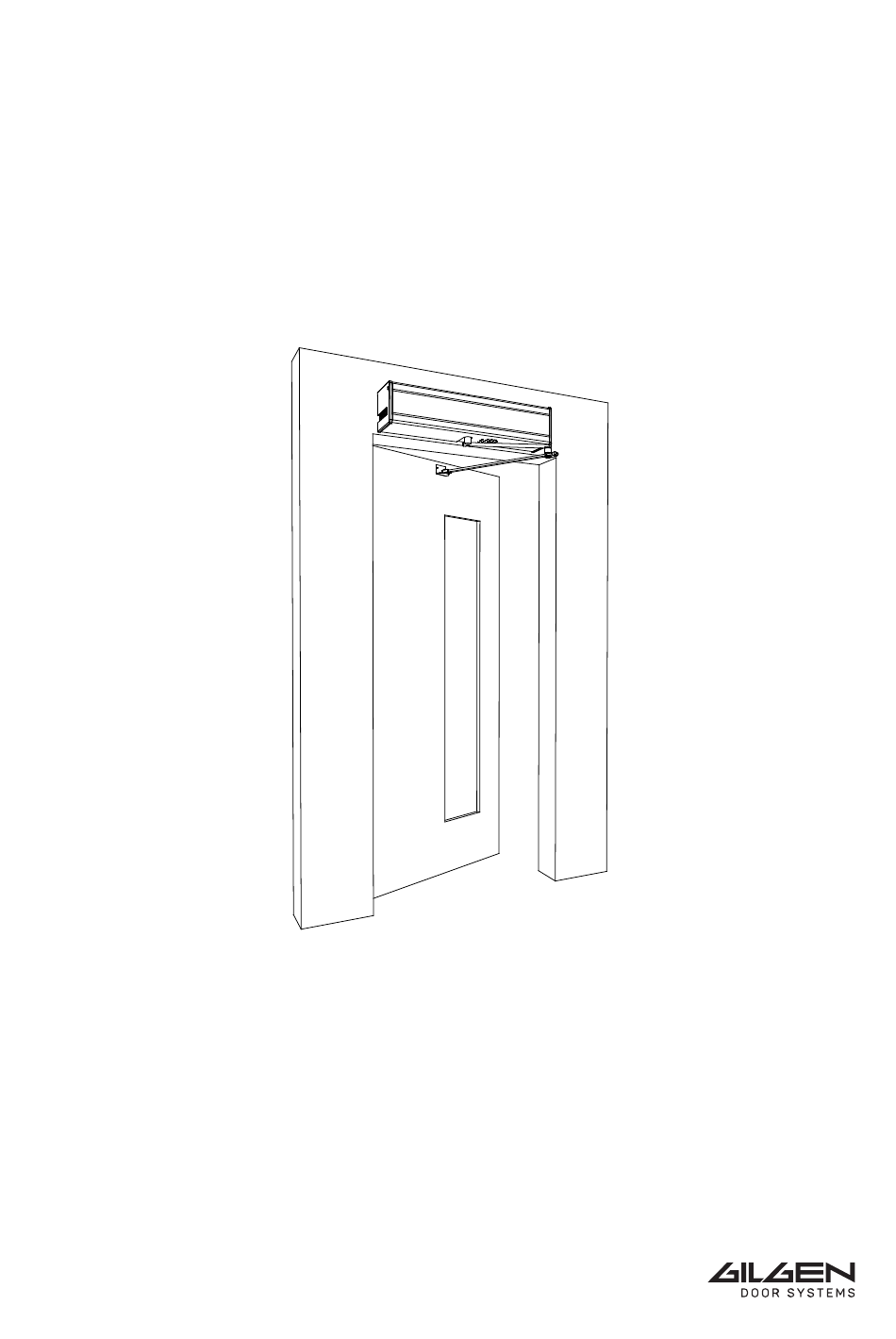

- Page 1 Swing door drive mechanism Operator manual Original Com. no..........Pos....... Construction year ....Operator .............................. Operating place ............................0546-999/34c 2010.04...
-
Page 2: Table Of Contents
Operator manual TABLE OF CONTENTS GENERAL REMARKS ....................3 Target group .......................3 Where to keep the operator manual ..............3 Adresses ......................3 SAFETY ........................4 Appropriate use ....................4 Safety notices ....................4 Safety regulations ....................4 2.3.1 Principles ....................4 2.3.2 Service (maintenance/checking) ............5 2.3.3 Safety devices ..................5 2.3.4 Malfunctions ..................5 2.3.5... -
Page 3: General Remarks
Handed over to the operator Date ....... Signature ....... Adresses Distribution agent/ After-sales service Manufacturer Gilgen Door Systems AG Freiburgstrasse 34 CH-3150 Schwarzenburg Phone +41 31 734 41 11 +41 31 734 43 79 www.gilgendoorsystems.com info@gilgends.com 0546-999/34c 0546-999-33---36c_2010.04.indd... -
Page 4: Safety
Operator manual SAFETY Appropriate use The swing door drive mechanism F4 has been exclusively designed for operating swing doors. Any other use beyond these application limits is deemed inappropriate and inad- missible! In the event of an inappropriate use of this system, the safety of the user may be jeopar- dized. -
Page 5: Service (Maintenance/Checking)
Gilgen. Furthermore, it is important that no objects (such as furniture, pallets, etc.) be placed in the vicinity of the door. • The swing door drive mechanism F4 must only be used for swing doors having a mini- mum clearance height of 2 m. -
Page 6: Product Description
PRODUCT DESCRIPTION General remarks The swing door drive mechanism F4 allows an automatic opening and closing of swing doors. The door is opened either automatically or manually via the control elements. The closing is initiated upon expiry of the programmed hold-open time. If the Push-and-Go function is enabled, the door just requires a slight manual push upon which the drive unit carries out an automatic opening sequence. -
Page 7: Normal Operation
(in this case it is recommended to install the appropriate safety elements). Automatic closing sequence control For bi-parting swing doors, two completely separate F4 swing door drive mechanisms are used, which are electrically connected to each other. Drive mech. 1 Drive mech. -
Page 8: Control Elements
Operator manual Control elements The possible control elements are: Element Example Opening element (inside/outside) Radar, Sensor, Push-button, Remote radio control with AUTOMATIC or stepping switch control Opening element (outside NIGHT) Key-operated impulse switch Opening element Door latch contact (wiper contact) External program switch OFF-AUTOMATIC-OPEN-EXIT-NIGHT Safety elements... -
Page 9: Control
Operator manual CONTROL Operating modes The following operating modes can be enabled by means of the program switch: The drive mechanism and the control elements are switched off. The door wing can be manually opened. The door wing is closed by spring power from any position. AUTOMATIC Automatic opening via the control elements. -
Page 10: Service (Maintenance/Checking)
Operator manual SERVICE (MAINTENANCE/CHECKING) Care/checking to be carried out by the operator Warning: Disconnect the installation before carrying out any work on the swing door in- stallation! Do not remove the covering of the drive mechanism! 5.1.1 Switching off • Select the MANUAL operating mode by means of the program switch •... -
Page 11: Maintenance/Checking Carried Out By The After-Sales Service
Operator manual Maintenance/checking carried out by the after-sales service Warning: In order to guarantee the safety of the users at all times, the installation must be checked with regard to its safe condition before the first commissioning and during normal operation, at least once a year, by a competent specialist. The correct maintenance/checking must be confirmed by entering the date and signature into the control booklet. -
Page 12: Troubleshooting
Operator manual TROUBLESHOOTING Malfunction Visual checking Cause/Reason Corrective/Measures Drive mechanism Program switch On position 0 (MANUAL) Flip to position 1 does not function Customer-supplied mains Switched OFF Switch ON switch Customer-supplied fuse Defective Replace Drive unit is heated up Temperature monitor has Wait 5...10 minutes been triggered Drive mechanism... -
Page 13: Shut-Down
Operator manual SHUT-DOWN No particular measures need to be taken for de-commissioning the installation. If the swing door drive mechanism will not be used during at least 1 month, it is re-com- mended to pull out the mains plug. For taking the installation back into operation, all you have to do is to plug in the mains cable and select the operating mode on the program switch. -
Page 14: Disposal Of The Installation
Operator manual DISPOSAL OF THE INSTALLATION An ecologically acceptable disposal of the installation is ensured if the different materials are separated and recycled. No particular measures are required for the protection of the environment. However, the relevant legal prescriptions applicable for the installation site have to be complied with! We advise you to entrust your after-ales specialists with the dismantling and disposal of your installation. -
Page 15: Settings Made By The After-Sales Service
Operator manual SETTINGS MADE BY THE AFTER-SALES SERVICE ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0546-999/34c 0546-999-33---36c_2010.04.indd Page 15 of 16... -
Page 16: Appendix
Operator manual APPENDIX The following documents are added as an appendix to this operator manual: • Declaration of incorporation according to machinery directive 0546-999/34c 0546-999-33---36c_2010.04.indd Page 16 of 16... - Page 17 Declaration of incorporation EC according to Machinery Directive 2006/42/EC Manufacturer: Gilgen Door Systems AG Freiburgstrasse 34 CH-3150 Schwarzenburg Phone +41 31 734 41 11 Responsible for documents: Beat Binggeli Head of QM Gilgen Door Systems AG Freiburgstrasse 34 CH-3150 Schwarzenburg...
