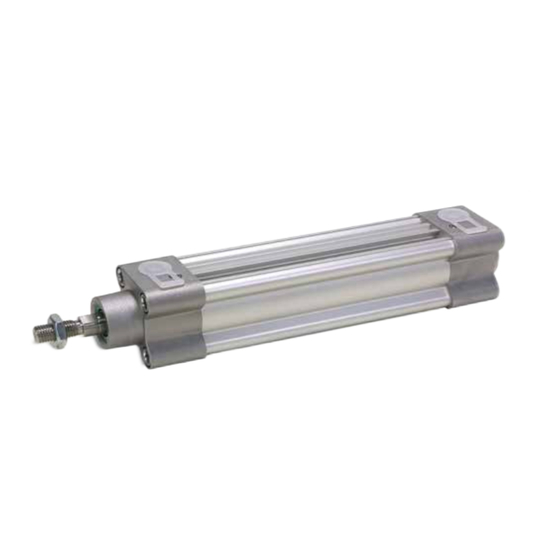

- Page 1 (02/19/19) P1F Pneumatic Cylinders Ø32 to Ø125mm According to ISO 15552 Catalog 0980 ENGINEERING YOUR SUCCESS. www.comoso.com...
-
Page 2: Table Of Contents
Offer of Sale The items described in this document are hereby offered for sale by Parker Hannifin Corporation, its subsidiaries or its authorized distributors. This offer and its acceptance are governed by the provisions stated on the separate page of this document entitled “Offer of Sale”. -
Page 3: Features - Product Overview
• Full range of ‘drop-in’ sensors available Design Variants Smooth profile - P1F-S, P1F-K The P1F in bore sizes Ø32 to Ø125 mm is a smooth profile designed cylinder with a magnetic piston used for standard temperature range from -20°C to +80°C. Utilizing... - Page 4 Options High temperature option Low temperature option All seals in the high temperature version of P1F are All seals in the low temperature version of P1F are developed and validated for continuous operation developed and validated for continuous operation down up to +150°C.
-
Page 5: Ordering Information
High and low temp option only with aluminium piston Only in combination with chrome or stainless steel plated piston rod material For air reservoir Standard strokes for all P1F cylinders compliant to ISO 4393 (with the exception of stroke 40 mm) Non standard strokes up to 2000 mm. -
Page 6: Technical Data
Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Technical Data P1F Series Cylinder forces Max theoretical force in N in relation to applied pressure in bar Bore/piston Surface Stroke rod [mm] area [cm²] 32/12 12.6 40/16 1005 1131 1257 10.6 1056 19.6... - Page 7 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Technical Data P1F Series Product type Standard cylinder according to ISO 15552 Bore size 32 - 125 mm Stroke length 5 - 2000 mm Versions Double acting Cushioning Adjustable air cushioning Position sensing...
-
Page 8: Size And Selection Guide
Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Technical Data P1F Series Guide for selecting suitable tubing The following prerequisites apply The selection of the correct size of tubing is often based The cylinder load should be about 50 % of the theoretical force on experience, with no great thought to optimizing energy (= normal load). - Page 9 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Technical Data P1F Series Example Which tube diameter should be used? A 50 mm bore cylinder is to be operated at 0.5 m/s. The line in the diagram. This line shows us we need an equivalent throttling bore of approximately 10 mm.
- Page 10 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Technical Data P1F Series Cylinder with Rod Lock Clean and compact design Function on pressure loss The piston rod lock can be used in all material handling The front end piece and lock unit form an integrated block, systems where controlled fastening or positioning is required.
- Page 11 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Technical Data P1F Series Locking and braking Use as a brake The static locking force corresponds to 7 bar pressure. Under The table shows the maximum values for speed and braking certain circumstances, the lock can also be used as a brake for mass if the cylinder is used as a brake.
-
Page 12: Dimensions
Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Dimensional Data P1F Series Smooth profile design P1F-S / P1F-A DIN 439B L8 + Stroke P1F-K ZM + 2 x Stroke WH + Stroke Tie-Rods with round profile design P1F-T DIN 439B... - Page 13 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Dimensional Data P1F Series P1F-S, P1F-A, P1F-K, P1F-T, P1F-N [mm] Bore ØB ØBA size ØD ØD5 ØD6 42.5 G1/8 28.4 M10x1.25 16.8 G1/4 M12x1.25 59.5 64.5 G1/4 33.4 M16x1.5 27.6 69.5 G3/8 39.4...
- Page 14 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Dimensional Data P1F Series Dynamic rod lock with smooth profile design P1F-L G 1/8 DIN 439B LWH* LL8 + Stroke * Not ISO Air reservoir with smooth profile design P1F-P L8 + Stroke Important Pressure Equipment Directive.
- Page 15 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Dimensional Data P1F Series P1F-L, P1F-P [mm] Bore ØB ØBA size ØD 42.5 G1/8 28.4 M10x1.25 G1/4 M12x1.25 59.5 64.5 G1/4 33.4 M16x1.5 15.5 21.5 69.5 G3/8 39.4 M16x1.5 19.5 G3/8 39.4 M20x1.5...
-
Page 16: Accessories
Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series Mountings Flange MF1 / MF2 Foot brackets MS1 Pivot bracket with Swivel eye bracket Clevis bracket MP2 rigid bearing AB7 Bore size P1C-4KMB P1C-4KMF P1C-4KMDB P1C-4KMSB P1C-4KMTB P1C-4LMB P1C-4LMF... - Page 17 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series Flange - MF1 / MF2 MF1 / MF2 ISO Intended for fixed mounting of cylinder. Flange can be fitted to front or rear Ø end cover of cylinder. Materials: Flange: Surface-treated steel Mounting screws acc.
- Page 18 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series Pivot Bracket with Rigid Bearing - AB7 Intended for flexible mounting of cylinder. The pivot bracket can be combined with clevis bracket MP2. Materials: Pivot bracket: Aluminium Ø (Bush: Steel and PTFE...
- Page 19 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series Clevis Bracket - MP2 Intended for flexible mounting of cylinder. Can be combined with clevis bracket MP4 and pivot bracket with rigid bearing AB7. Materials: Clevis bracket: Aluminium Pin: Surface hardened steel...
- Page 20 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series Clevis Bracket - AB6 Intended for flexible mounting of cylinder. Clevis bracket AB6 can be combined with pivot brackets MP6 and CS7 or swivel rod eye AP6. Materials: Ø...
- Page 21 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series 3 and 4 Position Flange - JP1 Mounting kit for back to back mounted cylinders, 3 and 4 position cylinders. Materials: Mounting: Aluminium Mounting screws: Zinc-plated steel Bore PROD.
- Page 22 To fit a flange mounted trunnion at the front end cover of a cylinder with lock unit, the piston rod must be extended. This is in order to provide the same WH dimensions as for the P1F base cylinder. Center Trunnion - MT4...
- Page 23 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series Swivel Rod Eye - AP6 Swivel rod eye for articulated mounting of the cylinder. Swivel rod eye can be combined with clevis bracket AB6. Materials: Swivel rod eye: Zinc-plated steel...
- Page 24 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Accessories P1F Series Flexo Coupling - PM5 Flexo coupling for articulated mounting of piston rod. Flexo fitting is intended to take up axial angle errors within a range of ±4°. Materials: Flexo coupling, nut: Zinc-plated steel Supplied complete with galvanized adjustment nut.
-
Page 25: Sensors
Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Sensors P1F Series Drop-in sensors The P8S sensors can easily be installed from the side in the sensor groove, at any position along the piston stroke. The sensors are completely recessed and thus mechanically protected. - Page 26 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Specifications P1F Series Electronic sensors Reed sensors Signal Signal Signal –(+) V –(+) V +(–) V Signal +(–) V – V DC – V DC +V DC + V DC Brown Brown...
- Page 27 Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Ordering information P1F Series Sensor ordering information Output/function Cable/connector Weight kg Part number Electronic sensors, 10-30 V DC PNP type, normally open 0.27 m PUR cable and 8 mm snap-in male connector 0.007...
- Page 28 0.3 mm Linearity error in support of the Industry 4.0 initiative. How it installs: The Parker CPS requires the use of a magnetic piston. The product will ft T-slot cylinders without any additional mounting hardware. 1. Pivot the sensor into the slot 2.
-
Page 29: Seal Kits
P1F-6100RL P1F-6100RQ P1F-6100RV P1F-6100RNL P1F-6125RN P1F-6125RF P1F-6125RL P1F-6125RQ P1F-6125RV P1F-6125RNL for through piston rod, add K at the end, ie P1F-6032RNK -30 to +80°C Plastic Bore = Included in seal kit Lubricated with grease piston piston size T1 Nm T1 Nm... -
Page 30: Air Quality Specification
Tie Rod and Profile Pneumatic Cylinders Catalog 0980 Specifications P1F Series Specifying air quality (purity) in accordance with ISO8573-1:2010, the international standard for compressed air quality ISO8573-1 is the primary document used from the ISO8573 series as it is this document which specifies the amount of contamination allowed in each cubic metre of compressed air. -
