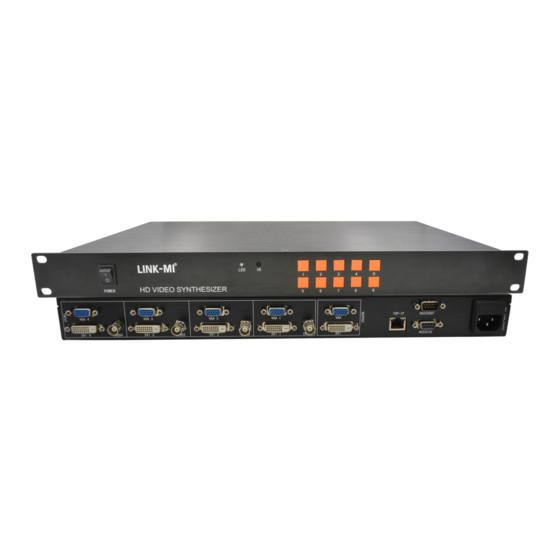

- Page 1 4X1 Multi-viewer with DVI VGA CVBS Inputs Model No.: LM-SD41 User Manual...
-
Page 2: Dear Customer
Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. 1. Introduction This HD Video synthesizer uses high performance processor, the main function is input 4 numbers Digital HD Video or analog video and converted into one number DVI and one number VGA signal output to one display unit,like HD projector, LCD display,DLP,PDP,and full-color LED display.it is easy to realization of switching,... -
Page 3: Panel Description
Input interface 4 numbers CVBS/VGA/DVI Support 480I~1080P, DVI and VGA signal support 640x480 to Input resolution 1920x1200 Color 24bit,16.7M Zoom Any where, Any size DVI1.0 and HDCP1.3 CVBS NTSCPAL or SECAM Distinguish Auto Output interface DVI and VGA Output resolution 1024x768 to 1920x1200 Output frequency 60Hz and 1080P 15Hz/25Hz/30Hz/50Hz/60Hz... -
Page 4: Connection Diagram
5. Connection Diagram... -
Page 5: Package Contents
6. Package Contents 1) 1x Main Unit 2) 1x Power Cable 3) 1x USB-RS232 Cable 4) 1x Remote 5) 1x U-Disk (with control software) 6) 1x User Manual 7. Control Software Software Name：boxcontroller.exe Operation system： Windows 2000/ NT/XP，WINDOWS98，WIN7 Operation: 1. Setup controller.exe, open the software, press Configuration-->Connect... - Page 6 Then,chose the port, it is according to your computer, Bandrade is 115200, Data Bit is 8, Check Bit is None, Stop Bit is 1 and press “OK” 2. Press “ ”, Press Configuration-->LCD wall Then, Splice 2 row 2 col, A Board 4,Resolution (output resolution), it is can be changed by user.
- Page 7 3. Matrix and Border adjust 3D mode no need for ordinary user 4. Panel A1 to A4 is 4 input channel,B is no need, DVI/VGA/AV is input signal,if you chose A1 and DVI, it is 1 channel DVI input signal, and put mouse on the...
- Page 8 Press your mouse left button, then you can move the blue, widening or narrow, anything is OK for blue. So, others also same as this method. It is can be adjusted by user. In the Panel right, the unit is no need, ADC adjust is for VGA color adjust,close all is close all already open window, close current is close the chose window, Geometry set is VGA phase adjust, Reset is restore to factory settings...
- Page 9 Shenzhen LINK-MI Technology Co., Ltd. www.link-mi.com E-mail: sales@link-mi.com...
