Rotation controller
For the safety of you and equipment,
instructions carefully before using this equipment. If you have any
queries in use, please read the instructions
description of device operation is provided in the main body. If
t he r e i s st i ll d ou b t, p l ea se c o nt ac t u s . W e w il l gi v e yo u a
satisfactory reply as soon as possible.
If there is any change in the instruction manual, without prior
notice, please understand.

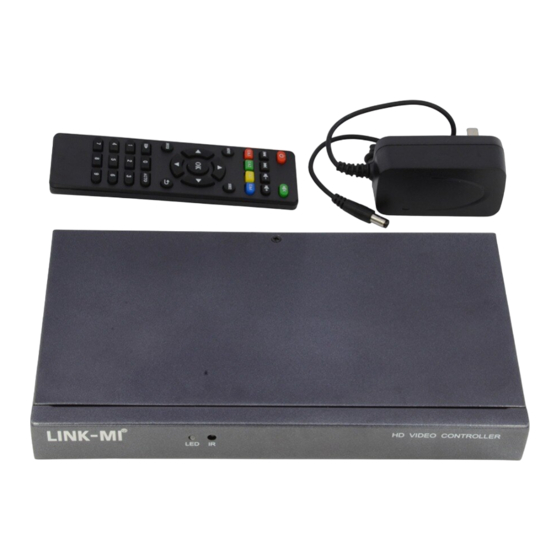

HD Video 180°
LM-MSW1
User Manual
please read the safety
- 0 -
first. A detailed
Advertisement
Related Manuals for LINK-MI LM-MSW1
Summary of Contents for LINK-MI LM-MSW1
- Page 1 HD Video 180° Rotation controller LM-MSW1 User Manual For the safety of you and equipment, please read the safety instructions carefully before using this equipment. If you have any queries in use, please read the instructions first. A detailed description of device operation is provided in the main body. If t he r e i s st i ll d ou b t, p l ea se c o nt ac t u s .
-
Page 2: Table Of Contents
Catalog 1、 ………………………………………… 2 Installation instructions 2、 Product overview …………………………………………………… 4 、Front and back panel introduction ………………………………… 6 4、 Introduction of remote control operation ………………………… 7 5、 ………………………………………………… 8 Menu introduction 6、 …………………………………… Introduction to USB operation 7、 control protocol …………………………………………………... -
Page 3: Installation Instructions
Chapter 1. Installation instructions This equipment supports 12V DC input. In order to make the Power adapter equipment work properly, please do not replace our standard power adapter easily. Power Turn off all the power supply, unplug the power plug, etc. to ensure the safety of you and the equipment. - Page 4 power plug should be unplugged immediately and handled by professional maintenance personnel. 6.in case of thunder or long absence, please unplug the power supply. 7.do not plug any object from the ventilation hole of the equipment, so as to avoid damage to the equipment or electric shock.
-
Page 5: Product Overview
Chapter 2. Product overview The device is a multi-functional image processor, a single device can complete multiple signal switching and format conversion, video 180 degree rotation, USB decode audio and video functions. The product supports 1 channel AV, 1 channel VGA, 1 channel HDMI, 1 channel USB input, 1 channel HDMI and 1 channel independent audio output. - Page 6 2.2 Technical parameter Name Specifications Input signal DB15 interface,Binding 1 channel 3.5 audio interface; VGA signal Support 640x480@85Hz to 1920x1200@60Hz. HDMI signal HDMI1.3(HDCP1.2) compatible DVI1.0 AV signal Automatic recognition of NTSC, PAL and SECAM systems Standard USB2.0 interface, which can decode audio and video.
- Page 7 2.3 Product topological graph - 6 -...
-
Page 8: Front And Back Panel Introduction
Chapter 3. Front and back panel introduction ⑩ ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑪ ⑫ ⑬ ① ② DC 12V input RS232 port ③ ④ USB interface HDMI input ⑤ ⑥ VGA input CVBS input ⑦ ⑧... -
Page 9: Introduction Of Remote Control Operation
Chapter 4. Introduction of remote control operation - 8 -... -
Page 10: Menu Introduction
Chapter 5. Menu introduction PICTURE OPTION TIME SOUND Sound Mode Picture Mode OSD Language English Clock Balance Off Time Color Temperature Restore Factory Default Auto Volume On Time Aspect Ratio MIRROR Surround Sound Noise Reduction Out Mode 1080P60 Sleep Timer SPDIF MODE PCM Auto Sleep Screen... - Page 11 Option mode 2.1 OSD language: It includes 18 different languages, like Chinese and English; 2.2 restore factory default: yes/no; 2.3 mirror: output video 180 degree rotation; 2.4 out mode: support 1080P、720P、768P optional; 3.5 out type: HDMI and DVI optional， some DVI monitor must choose DVI mode should be display video 3.6 OSD Duration：off、5sec、10sec、15sec optional;...
-
Page 12: Introduction To Usb Operation
surround sound: off, surround,SRS Tru Surround XT,Users can set their favorite mode according to their own preferences. The factory is set as off SPDIF mode PCM：no use; E Q： Us er s c a n s e t th ei r f av or i te m o d e a cc or di ng t o th ei r o w n preferences. - Page 13 3. Select the name of your U disk and press the OK key to enter the next menu. - 12 -...
- Page 14 4. Select the video and play Operation: Move the cursor to the current document to preview the current video file, press OK key to tick the selection, if tick, then press the play key , then only play tick video files; if no tick, directly press the play key, then play all the video files.
- Page 15 1、Pause/play：play or pause 2、FB：Fast back 3、FF：Fast forward 4、Prev.: Previous 5、Next：next 6、Stop：stop 7、R_All：All video playback Random：Random loop play R_None: Single video loop broadcast 8、Set A：Set the starting point of the current video cycle. Set B：Set the end of the current video loop. None：No circular play is set.
-
Page 16: Control Protocol
Chapter 7. Control Protocol Baud rate：9600 Data bit：8 Check bit：None Stop bit：1 AV channel： 0Xff,0Xf7,0x5a,0x00,0x30,0x00,0x80 VGA channel： 0Xff,0Xf7,0x5a,0x00,0x31,0x00,0x81 HDMI channel： 0Xff,0Xf7,0x5a,0x00,0x32,0x00,0x82 USB channel： 0Xff,0Xf7,0x5a,0x00,0x33,0x00,0x83 Output 1080P： 0Xff,0Xf7,0x5a,0x00,0x34,0x00,0x84 Output 720P： 0Xff,0Xf7,0x5a,0x00,0x35,0x00,0x85 Output 1024*768： 0Xff,0Xf7,0x5a,0x00,0x3b,0x00,0x8b Output HDMI mode：0Xff,0Xf7,0x5a,0x00, 0x3D,0x00,0x8d Output DVI mode： 0Xff,0Xf7,0x5a,0x00, 0x3E,0x00, 0x8e Rotation：0Xff, 0Xf7, 0x5a, 0x00, 0x01, 0x00, 0x51 - 15 -...
