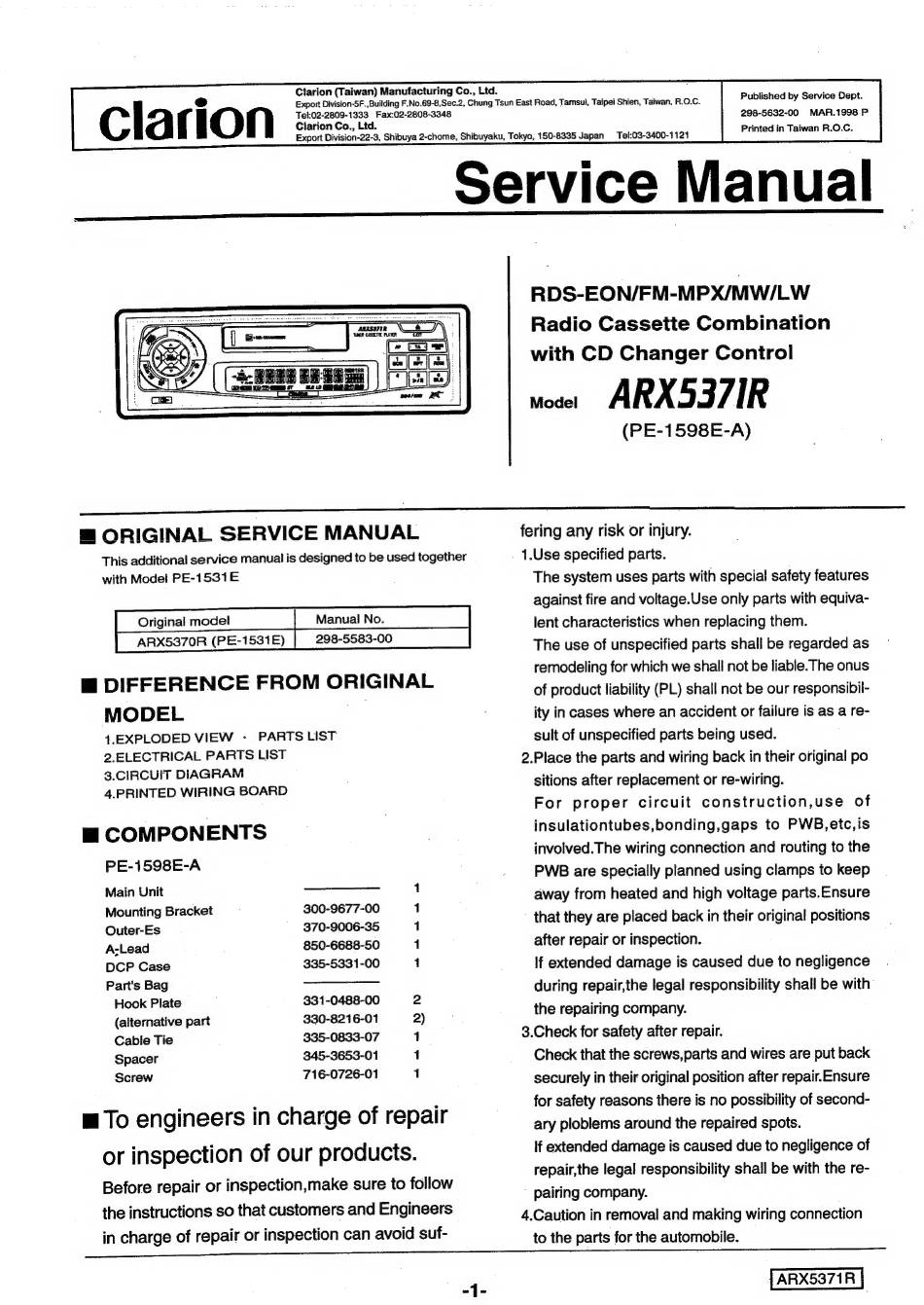

Clarion ARX5371R Service Manual

Clarion (Taiwan) Manufacturing Co., Ltd.
Export Division-5F.,Building F,No.69-8,Sec.2, Chung Tsun East Road, Tamsui, Taipei Shien, Taiwan, R.O.C.
e
a Tel:02-2809-1333 Fax:02-2808-3348
Clarion Co., Ltd.
Export Division-22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150-8335 Japan _Tel:03-3400-1 121
Published by Service Dept.
298-5632-00 MAR.1998 P
Printed in Taiwan R.O.C.

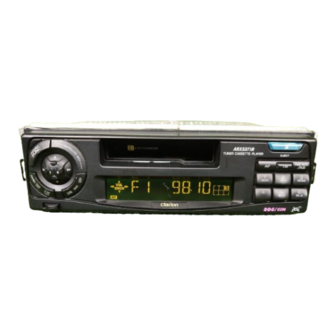

RDS-EON/FM-MPX/MW/LW
Radio Cassette Combination
with CD Changer Control
moire ARX5371R
(PE-1598E-A)
fering any risk or injury.
. 1.Use specified parts.
The system uses parts with special safety features
against fire and voltage.Use only parts with equiva-
lent characteristics when replacing them.
The use of unspecified parts shall be regarded as
remodeling for which we shall not be liable. The onus
of product liability (PL) shall not be our responsibil-
ity in cases where an accident or failure is as a re-
sult of unspecified parts being used.
2.Place the parts and wiring back in their original po
sitions after replacement or re-wiring.
For proper circuit construction,use of
insulationtubes,bonding,gaps to PWB,etc,is
involved.The wiring connection and routing to the
PWB are specially planned using clamps to keep
away from heated and high voltage parts.Ensure
that they are placed back in their original positions
after repair or inspection.
If extended damage is caused due to negligence
during repair,the legal responsibility shall be with
the repairing company.
3.Check for safety after repair.
Check that the screws,parts and wires are put back
securely in their original position after repair.Ensure
for safety reasons there is no possibility of second-
ary ploblems around the repaired spots.
If extended damage is caused due to negligence of
repair,the legal responsibility shall be with the re-
' pairing company.
4.Caution in removal and making wiring connection
to the parts for the automobile.
[ARXSSTAR]
