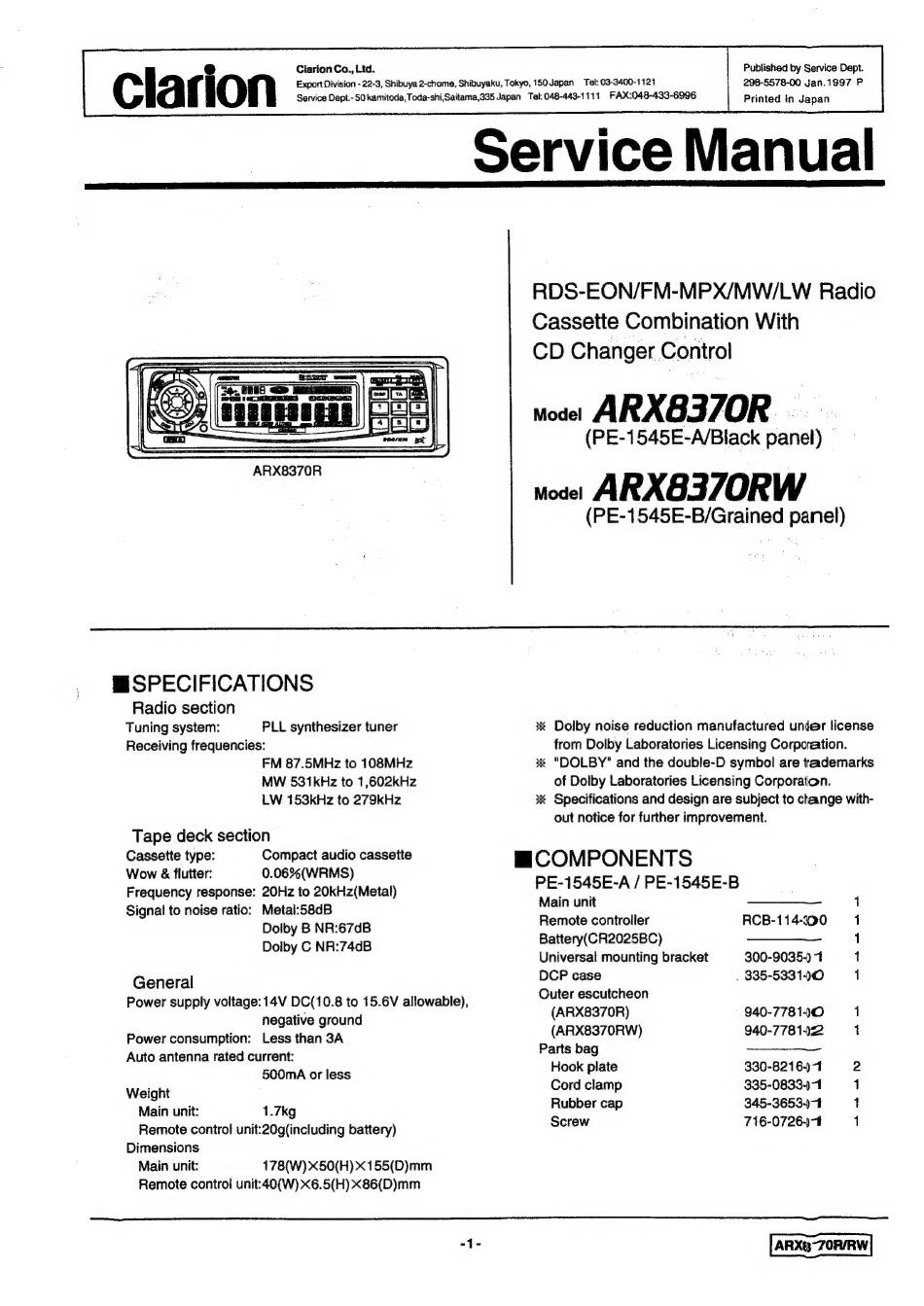

Clarion ARX8370R Service Manual

Published by Service Dept.
298-5578-00 Jan.1997 P
Printed in Japan
Ciarion Co., Ltd.
e
Export Division - 22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan Tel: 03-3400-1121
Service Dept.- 50 kamitoda, Toda-shi,Saitama,335 Japan Tel: 048-443-1111 FAX:048-433-6996
RDS-EON/FM-MPX/MW/LW Radio
Cassette Combination With
CD Changer Control
Model ARX8370R —
(PE-1545E-A/Black Sane
model ARX6370RW
(PE-1545E- ByGrained panel)

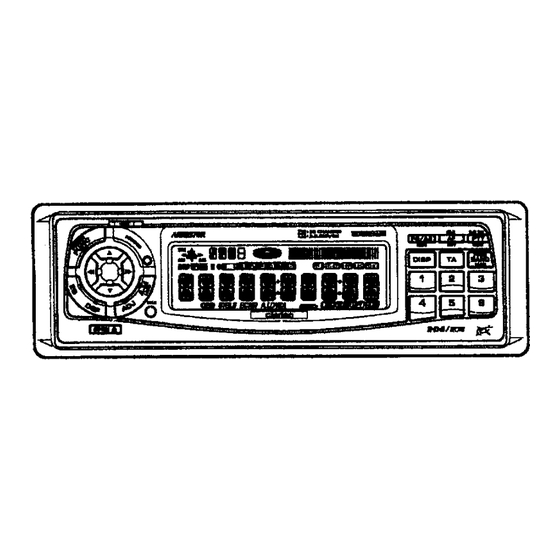

ARX8370R
MSPECIFICATIONS
Radio section
Tuning system: PLL synthesizer tuner
Receiving frequencies:
FM 87.5MHz to 108MHz
MW 531kHz to 1,602kHz
LW. 153kHz to 279kHz
Tape deck section
Cassette type: Compact audio cassette
Wow & flutter: 0.06%(WRMS)
Frequency response: 20Hz to 20kHz(Metal)
%* Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
%* "DOLBY" and the double-D symbol are taademarks
of Dolby Laboratories Licensing Corporation.
%* Specifications and design are subject to chaange with-
out notice for further improvement.
MCOMPONENTS
PE-1545E-A / PE-1545E-B
Remote control unit:20g(including battery)
Dimensions
Main unit: 178(W) X50(H) X155(D)mm
Remote control unit:40(W) X6.5(H)<86(D)mm
"1
ARXg-70R/RW
