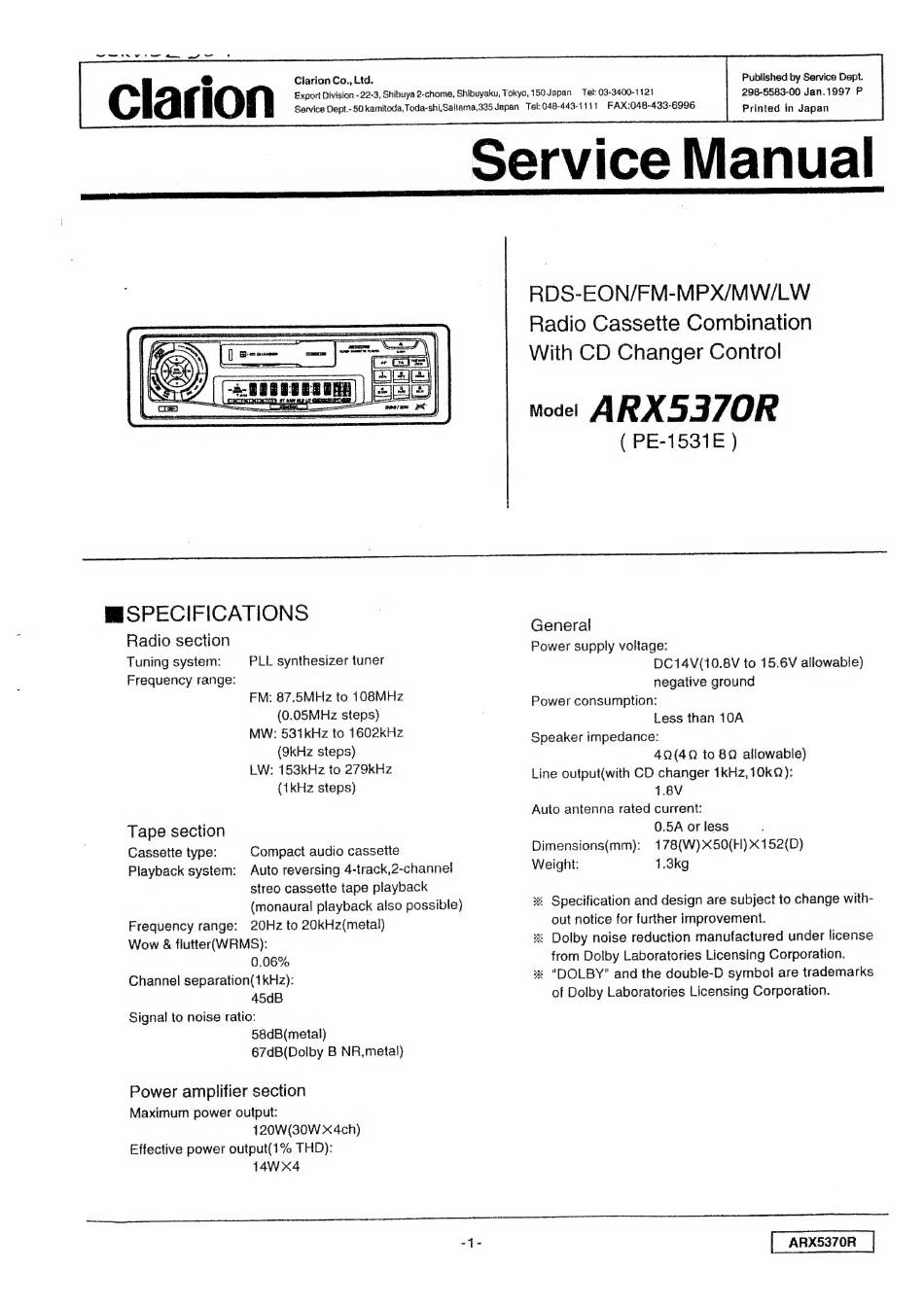

Clarion ARX5370R Service Manual

we ee ad
Clarion Co., Ltd.
Published by Service Dept.
e
Export Division -22-3, Shibuya 2-chome, Shibuyaku, Tokyo, 150 Japan Tel: 03-3400-1121
298-5583-00 Jan.1997 P
Service Dept. 50 kamltoda, Toda-shi,Sallama,335 Japan Tel: 048-443-1111 FAX:048-433-6996
Printed in Japan
S I M [
miSPECIFICATIONS
Radio section
Tuning system: PLL synthesizer tuner
Frequency range:
FM: 87.5MHz to 108MHz
(0.05MHz steps)
MW: 531kHz to 1602kHz
(9kHz steps)
LW: 153kHz to 279kHz
(1kHz steps)
Tape section
Cassette type: Compact audio cassette
Playback system:
Auto reversing 4-track,2-channel
streo cassette tape playback
(monaural playback also possible)
Frequency range: 20Hz to 20kHz(metal)
Wow & flutter(WRMS):
0.06%
Channel separation(1kHz):
45dB
Signal to noise ratio:
58dB(metal)
67dB(Dolby B NR,metal)
Power amplifier section
Maximum power output:
120W(30W X4ch)
Effective power output(1% THD):
14WX4
RDS-EON/FM-MPX/MW/LW

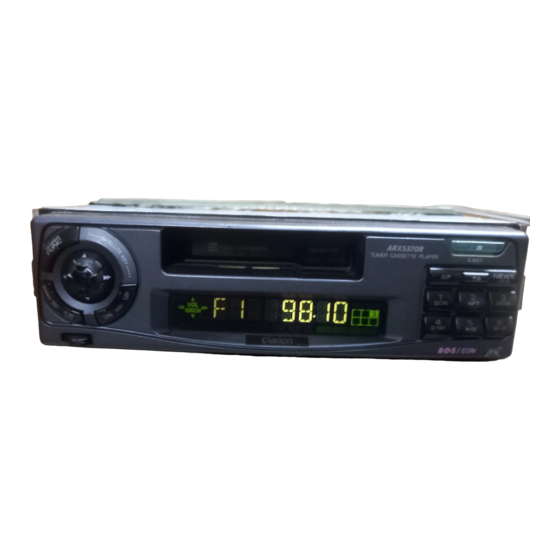

Radio Cassette Combination
With CD Changer Control
mode! ARX5370R
( PE-1531E )
General
Power supply voltage:
DC14V(10.8V to 15.6V allowable)
negative ground
Power consumption:
Less than 10A
Speaker impedance:
49(4Q to 8Q allowable)
Line output(with CD changer 1kHz,10kQ):
1.8V
Auto antenna rated current:
0.5A or less
Dimensions(mm): 178(W)X50(H)x152(D)
Weight: 1.3kg
% Specification and design are subject to change with-
out notice for further improvement.
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
% "DOLBY" and the double-D symbol are trademarks
of Dolby Laboratories Licensing Corporation.
%
ARX5370R
