Page 1

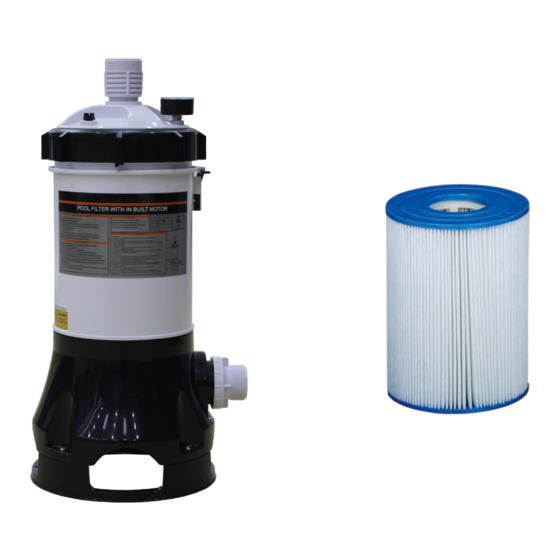

CARTRIDGE FILTER WITH BUILT-IN PUMP ITEM #75204 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
Page 2
Please examine and verify all sand filter components are present before use. Notify XTREMEPOWERUS at the customer service number listed on this manual for any damaged or missing parts at the time of purchase.
Page 4
INSTALLATION FILTER LOCATION It is important to first determine where your pump and filter will be located. If above the water line.a self- priming pump must be used. Self-priming pumps have the ability to lift water from a lower level and prime automatically.
Page 5
OPERATION STARTING THE FILTER Be sure Locking ring is secure (hand tighten--only slight pressure is required). 1. Open manual air relief valve a few turns 2. All suction and discharge valves must be open when starting the system. Failure to do so could cause severe personal injury and/or property damage.
Page 6
OPERATION / TROUBLESHOOTING CLEANING CARTRIDGE The cartridge filter element can be cleaned by pressure washing inside and out with a garden hose. (The cartridge is easier to clean when dry.) After hosing the cartridge, for best results, allow cartridge to dry and carefully brush pleated surface areas to remove fine particles.
Page 7
OF NOTE PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
