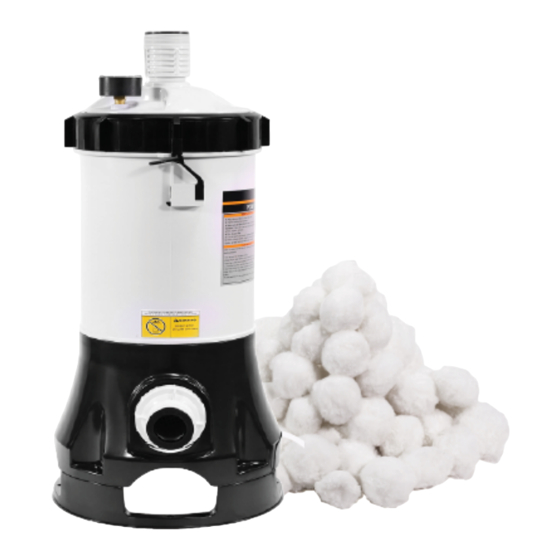

CARTRIDGE FILTER WITH BUILT-IN PUMP
ITEM #75203
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
Advertisement
Related Manuals for XtremepowerUS 75203
Summary of Contents for XtremepowerUS 75203
- Page 1 CARTRIDGE FILTER WITH BUILT-IN PUMP ITEM #75203 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
-
Page 2: Important Safety Information
Please examine and verify all sand filter components are present before use. Notify XTREMEPOWERUS at the customer service number listed on this manual for any damaged or missing parts at the time of purchase. -
Page 3: Parts Information
PARTS INFORMATION Compact and portable filter combination, thread locking design is easy to clean and replace the filter balls, convenient to operate and maintain, suitable for family pools. The casing is made of anti-corrosion material, with built-in pump. The filter balls can be washed and reused for a long time,also with good filtering effect. -
Page 4: Installation
INSTALLATION FILTER LOCATION It is important to first determine where your pump and filter will be located. If above the water line.a self- priming pump must be used. Self-priming pumps have the ability to lift water from a lower level and prime automatically. -
Page 5: Operation
OPERATION STARTING THE FILTER Be sure filter drain plug is closed. 1. Open manual air relief valve a few turns and open the suction and return valves (when used). CAUTION: All suction and discharge valves must be open when starting the system. Failure to do so could cause severe personal injury and/or property damage. -
Page 6: Operation / Troubleshooting
OPERATION / TROUBLESHOOTING HOW TO WASH THE FILTER BALL Filtration starts as soon as flow is steady through the filter. As the filter cartridge removes dirt from the pool water, the accumulated dirt causes a resistance to flow. As a result, the gauge pressure will rise and the flow will decrease. - Page 7 DISCLAIMER PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
