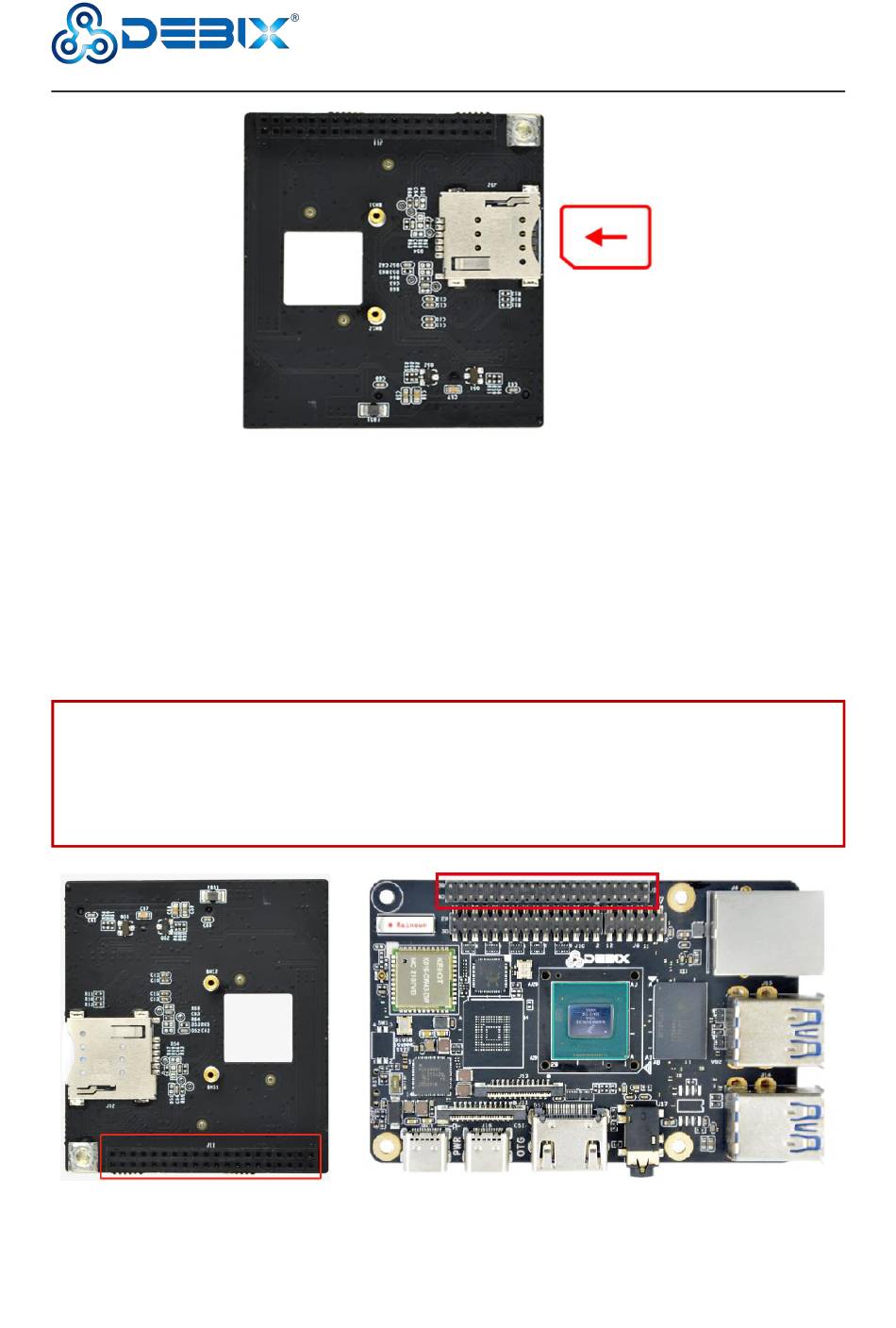

5. Align the female header of DEBIX 4G board with the top pin header of DEBIX
motherboard, and press to insert, fix them with locking screws (PM1.4X4), and insert the
FPC cable into the PCIe interface (J18) of DEBIX motherboard, as shown in the following
figure:
NOTE
It is necessary to confirm that the female header of DEBIX 4G board are aligned one by
one with the top pin header on the DEBIX motherboard to avoid damage to the board
caused by power on after misalignment.
Figure 12 Female header of DEBIX 4G board
www.debix.io
Polyhex Technology Company Limited
Figure 11 Insert SIM card
Figure 13 Pin header of DEBIX motherboard
