Chapter 3 Getting started
3.1. Hardware connection
Component Preparation
DEBIX 4G board
DEBIX motherboard
4G Module, 4G antenna
FPC cable (19Pin 0.3mm Pitch)
2 x lock screw CM2.0X4, lock screw PM1.4X4
Micro SIM card
The connection steps are as follows:
1.

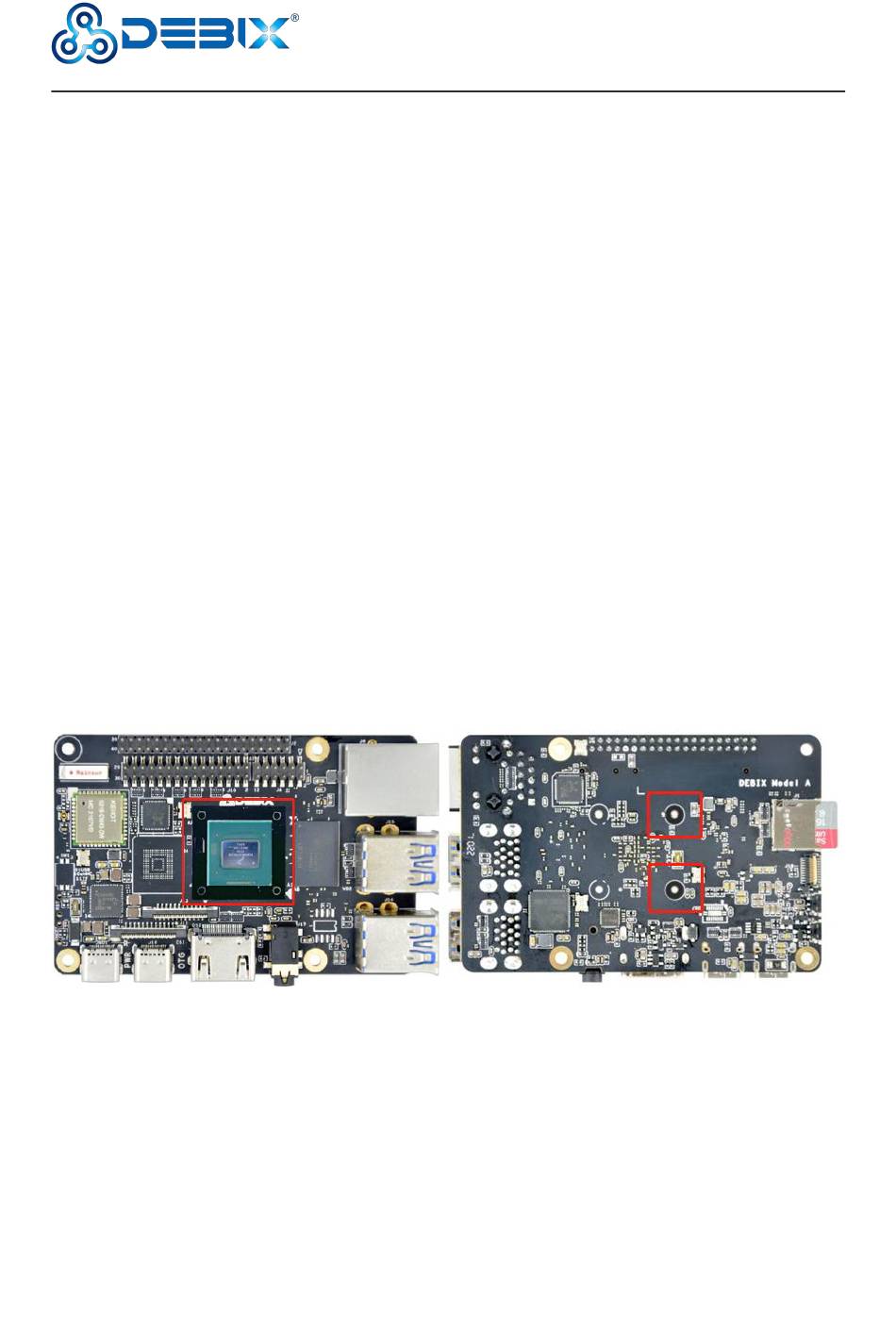

Paste the square shape and the round shape Mylar sheet on the front and back of DEBIX
motherboard, as shown in the figure below:
Figure 7 Square shape Mylar sheet
2.
Insert the FPC cable into the PCIe interface (J54) of DEBIX 4G board, as shown in the
following figure:
www.debix.io
Polyhex Technology Company Limited
Figure 8 Round shape Mylar sheet
14 / 25
