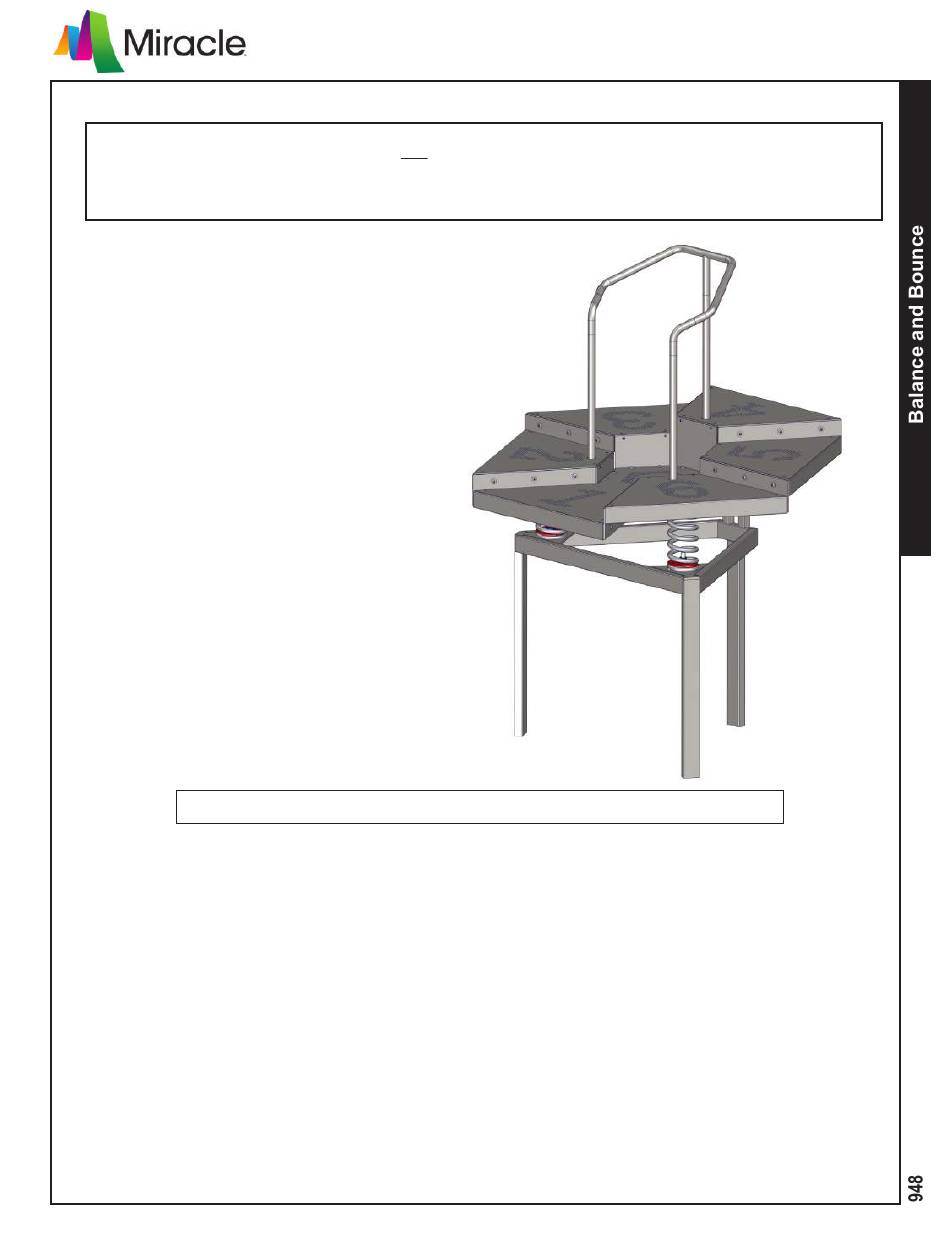

Miracle Balance and Bounce 948 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Balance and Bounce
IMPORTANT!
manual will provide important information pertaining to site preparation, footings, system stabilization and
other necessary information vital to the success of your installation.
Balance and Bounce
948
protective area = 17' 7" x 16' 11"
1. Concrete for Footing, wheelbarrow or mixer, 5 gallon bucket, water supply
2. Digging equipment for Footing (spade shovel, post hole digger, auger)
3. Bracing materials (2x4s, wood pieces, concrete blocks, bricks, jack stands, sawhorses, etc.)
4. Tape measure and level
5. Open end wrench set, Allen and 6-lobe wrenches or bits, socket set, screwdrivers
6. Drill, bits, extension cords, power supply
7. Grinder or saw (to trim bolt ends)
8. Adult installers - 2 minimum
Notes:
This product is available in inground only.
An (*) by a part number (CODE) indicates: Color Code Required.
Installation Guide
Prior to installation of any components, refer to the "Owner/Operator Manual". This
TOOLS AND EQUIPMENT REQUIRED
Refer to "Installations 101"
07SEP23
Rev. A
Page 1 of 25
