Miracle SCALE SWING - 2 SEAT Installation

Doc No. F-07 STRUCTURE: ____________________
MIRACLE: ______________________
Item Description
1 Scale Swing Overhead
2 Leg (Left)
3 Leg (Right)
4 Swing Leg Spacer
5 Pivot Bracket
6 Rubber Buffer with Plate ( Pre-assembled) *
7 Bearing (Pre-assembled) * (Fitted)
8 Bearing Block (Pre-assembled) * (Fitted)
9 Pommel Seat *
10 Chain With Pommel Seat Bracket *
11 Chain Cover *
12 M12x120mm H/T 8.8 Hex Head Bolt
13 M12 Flat Washer
14 M12 Nyloc Nut
15 M10x30mm Hex Head Bolt
16 M12x130mm Hex Head Bolt
17 M10 Nyloc Nut
18 M12x70mm H/T 8.8 Bolt Z/P
19 8mm 'S' Hook *
20 M12 'D' Shackle *
21 M10 Flat Washer
Application:
Installation Instructions:

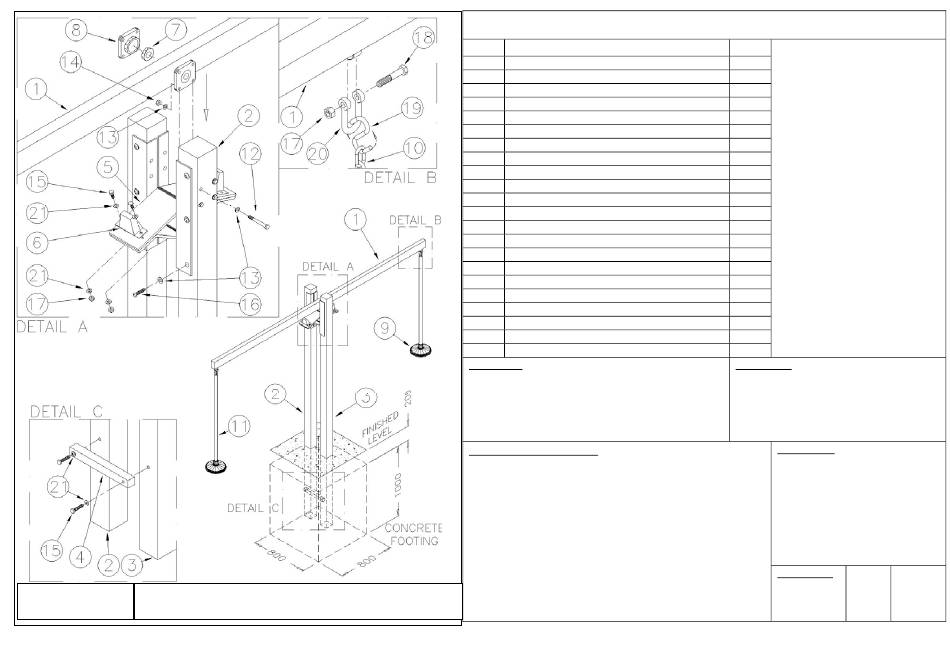

1. Dig foundation as per drawing.
2. Attach the Pivot Bracket to the Legs as per Detail A.
3. Attach the two Spacer to both Legs as per Details C.
4. Slide the two Bearings and Bearing Blocks, with the holes
facing outwards, onto the Pivot Bracket as per Detail A.
5. Stand assembles
Foundations and concrete as per drawing. The concrete must
be left to cure for a minimum of 2 days.
6. Once the concrete has cured, attach the as Scale Swing Seat
Assemblies per details B. Ensure S Hooks are fully closed
DATE: ___________ 'Metal t Metal" and bolts are tight prior to use.
DATE: ___________
SCALE SWING – 2 SEAT
Qty
1
1
1
1
1
2
2
2
2
2
2
8
28
14
4
12
2
2
2
2
10
Maintenance
All fasteners should be regularly checked and
retightened, if necessary, 1 week after installation.
Ongoing maintenance intervals will vary according to
the amount of use the equipment receives.
Recommend inspection intervals every 3 months.
* Wear Item - Refer Warranty
upright, position in previously dug
Specifications
Materials:
Colour: Optional
Finish: Powdercoat
Fasteners:
Safety Area
Age Groups:
3-7 Years
7-15 Years
